Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2012 Dimplex North America Limited

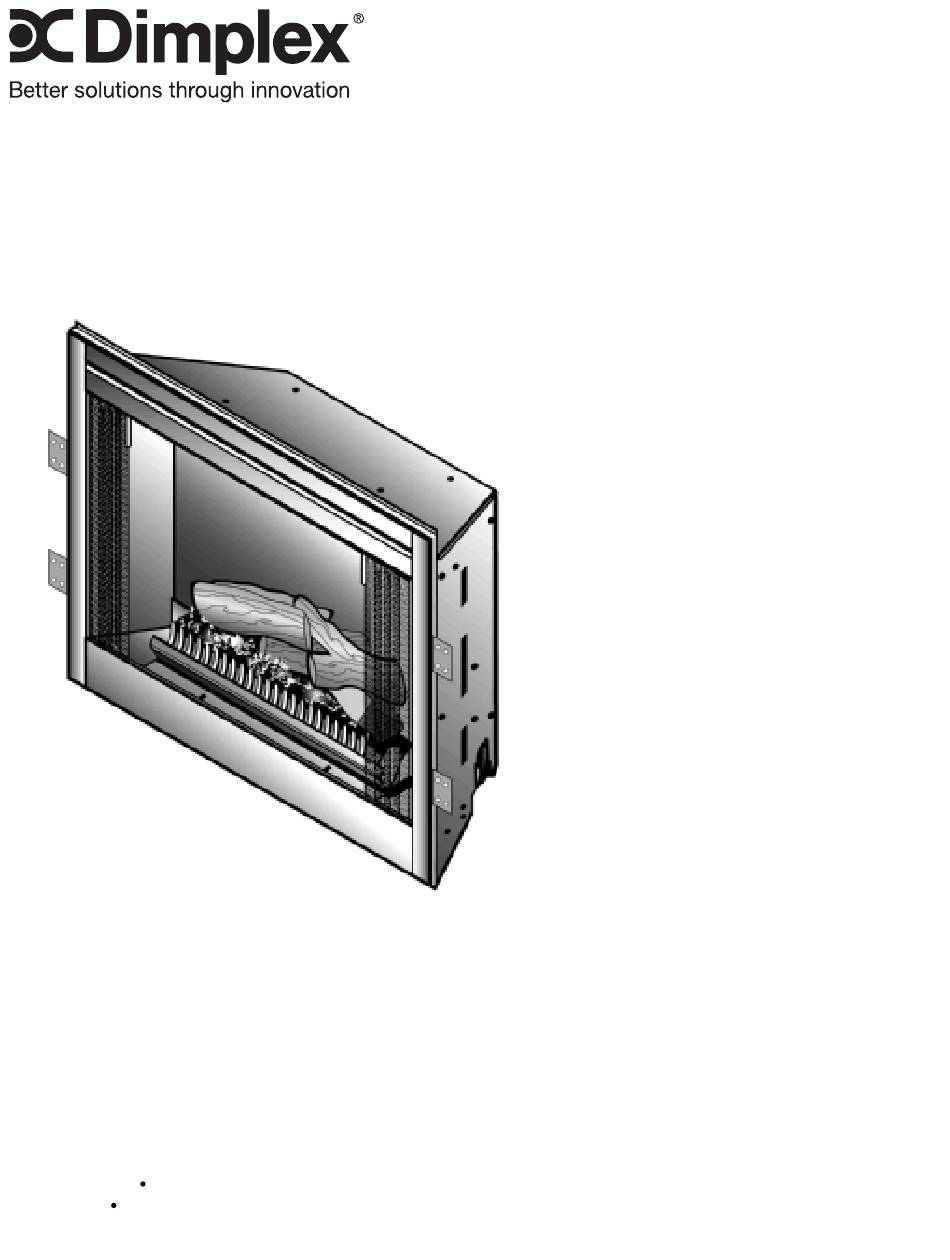

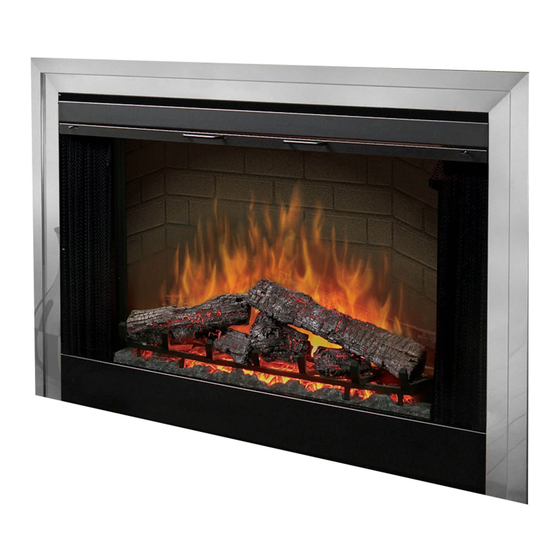

Service Manual
Model Numbers:
BF36E/ST/DX
BF42ST/DX
HBI36
HBI42
7400680000R03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF36 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dimplex BF36 Series

  • Page 1 HBI42 Dimplex North America Limited 1367 Industrial Road Cambridge ON Canada N1R 7G8 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product development, we reserve the right to make changes without notice. © 2012 Dimplex North America Limited 7400680000R03...
  • Page 2: Table Of Contents

    Table of Contents Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Maintenance .
  • Page 3: Operation

    Operation mote control (all models except BF36E). This remote control has a range of approximately 50ft. (15.25m), it does not have Figure 1 to be pointed at the fireplace and can pass through most obstacles (including walls). It is supplied with one of 243 independent frequencies to prevent interference with other units.
  • Page 4: Maintenance

    Maintenance WARNING: Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or damage to persons. Light Bulb Replacement CAUTION: Allow at least five (5) minutes for light bulbs to cool off before touching bulbs to avoid accidental burning of skin.
  • Page 5: Exploded Parts Diagram

    Exploded Parts Diagram...
  • Page 6: Replacement Parts List

    Replacement Parts List CATALOGUE NO . BF36E BF36ST/HBI36ST BF36DX/HBI36DX PART NO . 6900640459 6900640559 6900640659 MOD . LEVEL MOD 0-B MOD C,D MOD E MOD C,D MOD E 1 Log Set 0438200300RP 0438550200RP 0438200300RP 0438550200RP 2 Partially Reflective Glass 5900160100RP 5900160600RP Not Available 5900160600RP 5900160700RP...
  • Page 7: Wiring Diagram

    Wiring Diagram Mod 0-B Mod C-E...
  • Page 8: Switch Replacement

    Switch Replacement 3. Pull the rear edge of the log set forward by grasping the ember bed by the sides (handle the log set only by the Tools Required: Philips head screwdriver ember bed and not the logs) and pulling firmly until the Flat head screwdriver rear tab pops out from under the back ledge, then lift out.
  • Page 9: Blower Motor/Blower Replacement

    firebox and remove the top cover by lifting it up from the glass and push the other side of the partially reflective glass back, bowing it slightly in the center and pulling out by into the existing rubber channel in the firebox, carefully press one end.
  • Page 10: Input Voltage Changing

    3. Pull the rear edge of the log set forward by grasping the Figure 3 ember bed by the sides (handle the log set only by the Remote Control Receiver 3000200800 ember bed and not the logs) and pulling firmly until the Line In From Blower and Heater rear tab pops out from under the back ledge, then lift out.
  • Page 11: Rewire Unit From 208/240 Volt To 120 Volt With Remote Controls

    REWIRE UNIT FROM 208/240 VOLT TO 120 ate wire to meet local and national electrical codes for rated power consumption. VOLT WITHOUT REMOTE CONTROLS For 240 volt installations a three conductor, non-metallic NOTE: Rewiring the unit from 208/240 volt to 120 volt sheath cable with ground wire is recommended for the configuration must be completed prior to installing the unit.
  • Page 12: Troubleshooting Guide

    Troubleshooting Guide PROBLEM CAUSE SOLUTION General Circuit breaker trips or fuse Short in unit wiring. Trace wiring in unit. blows when unit is turned on Improper circuit current rating Verify unit is installed on a dedicated 15 amp circuit. Unit turns on or off by itself Remote Control has a similar frequency to Replace Remote Control other remotes in the area.
  • Page 13 PROBLEM CAUSE SOLUTION Heater Heater is not turning On Improper operation Refer to Operation Section Loose wiring Trace wiring in unit Defective Heater Switch Replace Heater Switch Defective Remote Control Receiver (if ap- Replace Remote Control Receiver Kit plicable) Heater is not turning Off Improper operation of unit Refer to Operation Section Improper operation of Thermostat/Wall Con-...
