Installation

!
NOTE: A 15 Amp, 120 Volt
alternating current (VAC) circuit
is required. A dedicated circuit
is preferred but not essential in
all cases. A dedicated circuit will
be required if, after installation,
the circuit breaker trips or fuse
blows on a regular basis when
the heater is operating. Additional
appliances on the same circuit
may exceed the current rating of
the circuit breaker.
WARNINg: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of fire, electric shock or injury to
persons.
WARNINg: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of fire, electric
shock and injury to persons.
WARNINg: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of fire,
electric shock or injury to persons,
always use a licensed electrician.
Fireplace Installation
1. Remove any temporary wood
framing from the firebox by
removing the screws and
washers along either side of
the glass.
!
NOTE: although the wood
frame can be discarded, the
screws and washers should be
kept to attach the firebox to a
Dimplex mantel or surround (if
applicable).

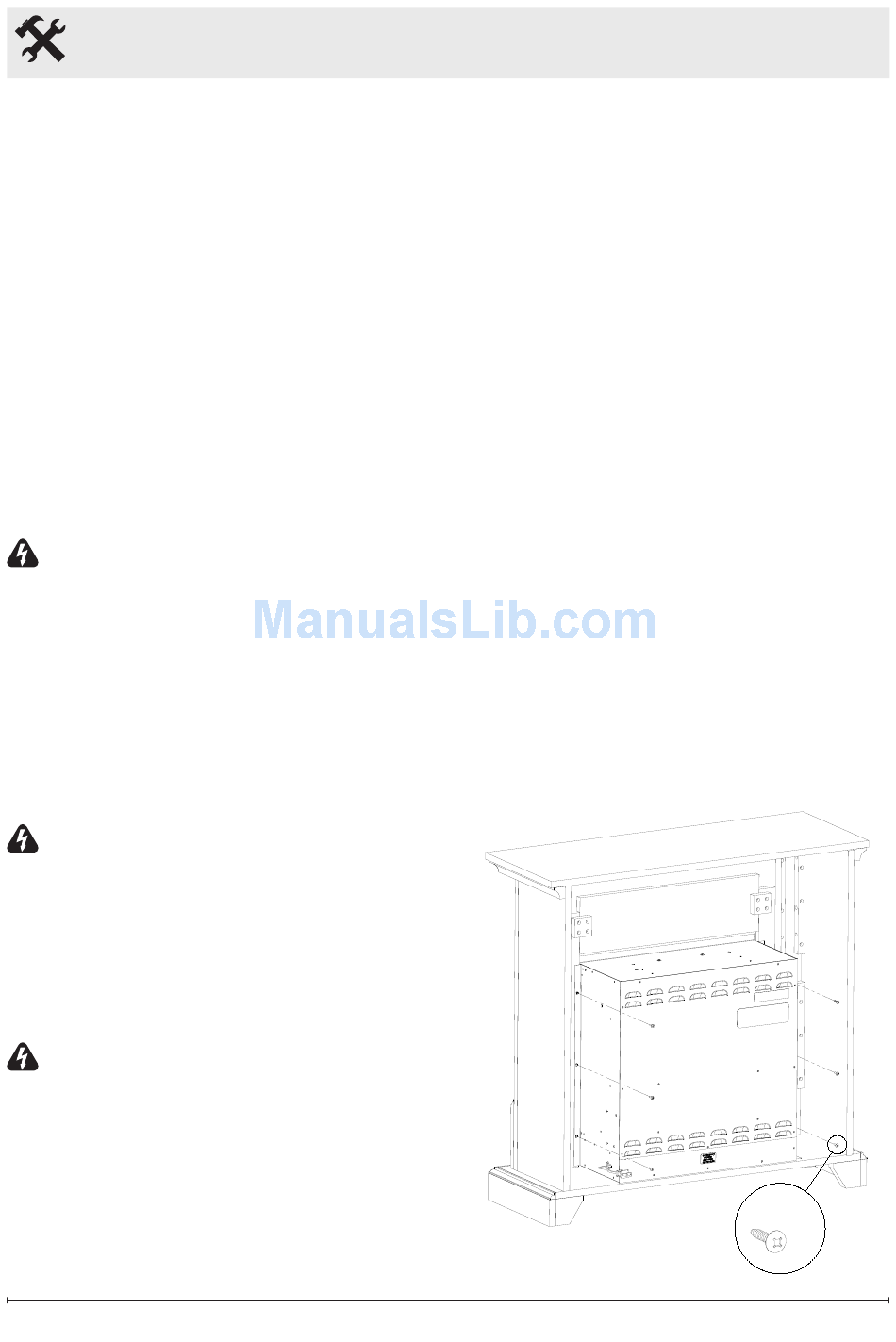

2. For use with a new or existing
mantel, insert fireplace as
shown in Figure 1 and anchor
in place with supplied screws.
!
NOTE: the required opening
dimensions of the fireplace are:
Figure 1
x6
7
