Page 1 IP8130/8131 Cube Network Camera User’s Manual 1MP • Compact Size Rev. 1.0...
Page 2: Table Of Contents
Ready to Use �� 15 Accessing the Network Camera �� Using Web Browsers �� 16 Using RTSP Players �� 19 Using 3GPP-compatible Mobile Devices �� 20 Using VIVOTEK Recording Software �� 21 Main Page �� Client Settings �� Configuration ��...
Page 3 VIVOTEK Local storage > Content management �� 116 Appendix �� URL Commands for the Network Camera �� 119 Technical Specifications �� 194 Technology License Notice �� 195 Electromagnetic Compatibility (EMC) �� 196 User's Manual - 3...
Page 4: Overview
Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease� VIVOTEK also provides the smart phone application iViewer, both on iPhone and Android phones, enable users to monitor live video off-site�...
Page 5: Read Before Use
Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server� Package Contents ■ IP8130 or IP8131 ■ Screws & Plastic Anchors ■ Power Adaptor (+12V, 1A) ■ Camera Stand ■...
Page 6: Physical Description

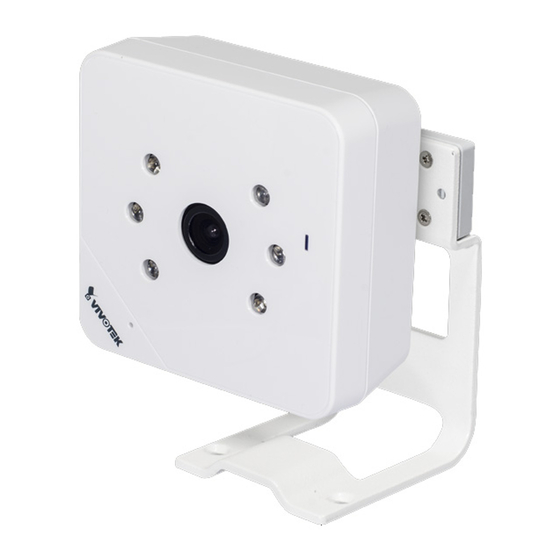

VIVOTEK Physical Description Front Panel IP8130 Status LED Lens Microphone MicroSD/SDHC/SDXC Card Slot IP8131 Lens Status LED IR LEDs Microphone Item LED status Description Steady Powered and system booting, or network failed LED off Power off Green LED blinks every 1 sec�...
Page 7 VIVOTEK Rear Panel The back panels are identical for both models. Reset Button Power Cord General I/O Socket Terminal Block Ethernet 10/100 RJ45 Socket Audio GND Audio Out Audio out cable is user-supplied� User's Manual - 7...
Page 8: Install Camera To Stand
Attach the camera to stand and orient the shooting angle� If preferred, use the included screws to secure the the camera stand to a mounting surface� IMPORTANT: Record the MAC address before installing the camera� IP8130 0002D10766AD 8 - User's Manual...
Page 9: Digital Input Diagram
VIVOTEK Digital Input Diagram Please refer to the following illustration for the connection method� Max. voltage: 40V 3.3V Digital input DI-: Ground Connect a digital input device to the input pins of the camera� From the Applications > Digital Input page, you can let camera report the current signal status as High or Low, Open or Ground- ed, to determine the signal’s Normal status during operation�...
Page 10 VIVOTEK Hardware Reset Reset Button The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation� If the system problems remain after reset, restore the factory settings and install again�...
Page 11: Network Deployment
VIVOTEK Network Deployment LAN Connection 1� If you have external devices such as sensors and alarms, make connections from general I/O terminal block� 2� Connect the camera to a switch via Ethernet cable� 3� Connect the supplied power cable from the camera to a power outlet�...
Page 12: Ip Address: Internal Port
VIVOTEK Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below� 1� Connect your Network Camera behind a router, the Internet environment is illustrated below�...
Page 13 For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings� VIVOTEK also provides the automatic port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature�...
Page 14: Software Installation
After your network environment is analyzed, please click Next to continue the program� 3� The program will search for all VIVOTEK network devices on the same LAN� 4� After a brief search, the installer window will prompt� Click on the MAC and model name that matches the one printed on the product label�...
Page 15: Ready To Use
VIVOTEK Ready to Use 1� A browser session with the Network Camera should prompt as shown below� 2� You should be able to see live video from your camera� You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras� For its installation details, please refer to its related documents�...
Page 16: Accessing The Network Camera
3� The live video will be displayed in your web browser� 4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below� Follow the instructions to install the required plug-in on your computer�...
Page 17 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 76�...
Page 18 VIVOTEK IMPORTANT: • Currently the Network Camera utilizes 32-bit ActiveX plugin� You CAN NOT open a management/view session with the camera using a 64-bit IE browser� • If you encounter this problem, try execute the Iexplore�exe program from C:\ Windows\SysWOW64� A 32-bit version of IE browser will be installed�...
Page 19: Using Rtsp Players
3� The address format is: rtsp://<ip_address>:<rtsp_port>/<RTSP streaming access name for a pvPlayer pvPlayer specific video stream> VIVOTEK’s network cameras support simultaneous playback of 2 to 5 video streams� The streaming access names for these streams are: Stream 1 – live�sdp, Stream 2 – live2�sdp, Stream 3 –...
Page 20: Using 3Gpp-Compatible Mobile Devices
VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 12�...
Page 21: Using Vivotek Recording Software
Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www�vivotek�com� User's Manual - 21...
Page 22: Main Page
VIVOTEK Main Page This chapter explains the layout of the main page� It is composed of the following sections: VIVOTEK INC� Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window� VIVOTEK INC. Resize Buttons Host Name...
Page 23: Client Settings
VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page� For more information, please refer to Client Settings on page 27� Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera.
Page 24 VIVOTEK Global View: Click on this item to display the Global View window� The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream). The floating frame allows users to control the e-PTZ function (Electronic Pan/ Tilt/Zoom)�...
Page 25 VIVOTEK Mic Volume: When the Mute function is not activated, move the slider bar to adjust the microphone volume on the local computer� Mute: Turn off the Mic volume on the local computer� The button becomes the Mic On button after clicking the Mute button�...
Page 26 VIVOTEK Go to If you configured and chose to display a smaller region of interest from out of a maximum image frame, you can configure different areas within the frame as preset points, and use this menu to move to a location�...
Page 27: Client Settings
VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer� When completed with the settings on this page, click Save on the page bottom to enable the settings� H.264 / MPEG-4 Media Options H.264/MPEG-4 Media Options...
Page 28: Mp4 Saving Options
VIVOTEK MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here you can specify the storage destination and file name. Folder: Specify a storage destination for the recorded video files.
Page 29: Joystick Settings
VIVOTEK Joystick settings Enable Joystick Connect a joystick to a USB port on your management computer� Supported by the plug-in (Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer� The joystick should work properly without installing any other driver or software�...
Page 30 VIVOTEK Buttons Configuration Click the Configure Buttons button, a window will prompt as shown below� Please follow the steps below to configure your joystick buttons: 1� Select a button number from the Button # pull-down menu� Tips If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility�...
Page 31: Configuration
Click Configuration on the main page to enter the camera setting pages� Note that only Administrators can access the configuration page. VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort� To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users�...
Page 32: System > General Settings
VIVOTEK Advanced Mode Navigation Area Configuration List Click to switch to Basic Mode Firmware Version Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode � If you want to set up advanced...
Page 33 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off�...
Page 34: System > Homepage Layout
Theme Options (the second tab on this page)� The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage� Logo graph Here you can change the logo at the top of your homepage�...
Page 35 VIVOTEK Theme Options Here you can change the color of your homepage layout� There are three types of preset patterns for you to choose from� The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings�...
Page 36 VIVOTEK ■ Follow the steps below to set up the customed homepage: 1� Click Custom on the left column� 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3� The palette window will pop up as shown below�...
Page 37: System > Logs
VIVOTEK System > Logs Advanced Mode This section explains how to configure the Network Camera to send the system log to a remote server as backup� Log server settings Follow the steps below to set up the remote log: 1� Select Enable remote log�...
Page 38 You can install the included ST7501 recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc� For more information, refer to the ST7501 User Manual� VIVOTEK Network Cameras Internet 3G Cell phone HTTP...
Page 39: System > Parameters
VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order� The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit�...
Page 40: System > Maintenance
Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2� Click Browse… and specify the firmware file.
Page 41 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings� Network: Select this option to retain the Network Type settings (please refer to Network Type on page 57)� Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
Page 42 VIVOTEK ® 3. Open the file with Microsoft Notepad and locate your time zone; set the start and end time of DST� When completed, save the file. In the example below, DST begins each year at 2:00 a�m� on the second Sunday in March and ends at 2:00 a.m.
Page 43 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings� VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 � Update custom language file: Click Browse… and specify your own custom language file to upload.
Page 44: Media > Image
VIVOTEK Media > Image Advanced Mode This section explains how to configure the image settings of the Network Camera� It is composed of the following four columns: General settings, Image settings, Exposure, and Privacy mask� General settings Video title: Enter a name that will be displayed on the title bar of the live video as the picture shown below�...
Page 45 VIVOTEK Day/Night Settings Switch to B/W in night mode Select this to enable the Network Camera to automatically switch to Black/White display during night mode� Disable IR LED Select this checkbox to disable the onboard IR illuminators� IR cut filter With a removable IR-cut filter, this Network Camera can automatically remove the filter to let IR light into the sensor during low light conditions�...
Page 46: Image Settings
VIVOTEK Image settings On this page, you can tune the White balance, Image adjustment and low light compensation� Image Setting 1: For normal situations Image Setting 2: For special situations White balance: Adjust the value for the best color temperature�...
Page 47 VIVOTEK Profile to adjust all settings above in a pop-up window for special lighting conditions� Activated period: Select the period of time this profile setting will apply to� Please manually enter a range of time in a day, tune the White Balance and...
Page 48 VIVOTEK Measurement Window: This function allows user to set measurement window(s) for low light compesation� ■ Full view: Calculate the full range of view and offer appropriate light compesation� ■ BLC (Back Light Compensation): This option allows you to use the center of the current view as the measuring area�...
Page 49 VIVOTEK You can click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the settings� If you want to configure another sensor setting for the schedule mode, please click Profile to open the Profile of exposure settings page as shown below.
Page 50 VIVOTEK Advanced Mode Privacy mask Click Privacy Mask to open the settings page� On this page, you can block out sensitive zones to address privacy concerns� 2010/12/09 17:08:56 2010/12/09 17:08:56 ■ To set the privacy mask windows, follow the steps below: 1�...
Page 51: Media > Video
VIVOTEK Media > Video Advanced Mode Stream settings This Network Camera supports multiple streams with a frame size ranging from 176 x 144 to 1280 x 800� The definition of multiple streams: ■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Size"...
Page 52: Media > Video
VIVOTEK Media > Video NOTE: ► All the items in the “Region of Interest” should not be larger than the “Output Frame Size“ (current maximum resolution)� ■ The parameters of the multiple streams: Region of Interest Output frame size Stream 1...
Page 53 VIVOTEK Click the stream item to display the detailed information. If configured, the maximum frame size will be in accordance with your settings in the Viewing Window sections� This Network Camera provides real-time H�264 and MJPEG compression standards (Dual Codec) H.264...
Page 54 VIVOTEK The frame rate will decrease if you select a higher resolution� ■ Intra frame period Determine how often to plant an I frame� The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption� Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds�...
Page 55 VIVOTEK JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage� Because the media contents are a combination of JPEG images, no audio data is transmitted to the client�...
Page 56: Media > Audio
VIVOTEK Media > Audio Advanced Mode Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients� Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page�...
Page 57: Network > General Settings
Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera� 1� You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN� Please refer to Software Installation on page 14 for details�...
Page 58 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses� Secondary DNS: Secondary domain name server that backups the Primary DNS� Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses�...
Page 59 VIVOTEK NOTE: NOTE ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera� ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
Page 60 VIVOTEK 4� In the Networking Services dialog box, select Universal Plug and Play and click OK� 5� Click Next in the following window� 6� Click Finish� UPnP is enabled� ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
Page 61 VIVOTEK PPPoE (Point-to-point over Ethernet) Select this option to configure your Network Camera to make it accessible from anywhere as long as there is an Internet connection� Note that to utilize this feature, it requires an account provided by your ISP�...
Page 62 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings� Please note that this only works if your network environment and hardware equipment support IPv6� The ® browser should be Microsoft Internet Explorer 6�5, Mozilla Firefox 3�0 or above�...
Page 63 VIVOTEK Please follow the steps below to link to an IPv6 address: 1� Open your web browser� 2� Enter the link-global or link-local IPv6 address in the address bar of your web browser� 3� The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4�...
Page 64 1025 and 65535� FTP port: The FTP server allows the user to save recorded video clips� You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. The FTP port can also be assigned to another port number between 1025 and 65535�...
Page 65 To stop talking, click again� FTP port: The FTP server allows the user to save recorded video clips� You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21.
Page 66: Network > Streaming Protocols
VIVOTEK Network > Streaming protocols Advanced Mode HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 76 for details� Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest�...
Page 67: Rtsp Streaming
VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1 or 2> For example, when the Access name for stream 2 is set to video2�mjpg: 1� Launch Mozilla Firefox� 2� Enter the above URL command in the address bar� Press Enter�...
Page 68 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest� basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted�...
Page 69: Initial Ttl
VIVOTEK Multicast settings for stream 1 & 2: Click the items to display the detailed configuration information� Select the Always multicast option to enable multicast for stream 1 or 2� Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address�...
Page 70 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device� One URL can only be mapped to one MAC address of a network camera�...
Page 71 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting� Provider: Select a DDNS provider from the provider drop-down list� VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers� It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
Page 72 4� Select Enable DDNS and click Save to enable the setting� ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�...
Page 73 VIVOTEK Network > QoS (Quality of Service) Advanced Mode Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network� Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications.
Page 74 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer)� The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint)� This is a 6-bit field that provides 64 different class IDs�...
Page 75: Network > Snmp (Simple Network Management Protocol)
VIVOTEK Network > SNMP (Simple Network Management Protocol) Advanced Mode This section explains how to use the SNMP on the network camera� The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices� It helps network administrators to remotely manage network devices and find, solve network problems with ease.
Page 76: Security > User Account
VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts� Root Password The administrator account name is “root”, which is permanent and can not be deleted� If you want to add more accounts in the Manage User column, please apply the password for the “root”...
Page 77: Https (Hypertext Transfer Protocol Over Ssl)
VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher security level�...
Page 78 VIVOTEK 5� Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection� 6� If your web session does not automatically change to an encrypted HTTPS session, click Home to return to the main page� Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard�...
Page 79 VIVOTEK Create certificate request and install 1� Select the option from the Method pull-down menu� 2� Click Create certificate to proceed� 3� The following information will show up in a pop-up window after clicking Create� Then click Save to generate the certificate request.
Page 80 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window� Proceed with the rest of the process as CA’s instructions on their webpage�...
Page 81 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line� 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix�...
Page 82 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. 82 - User's Manual...
Page 83 VIVOTEK Note that 11� When the certifice file is successfully loaded, its status will be stated as Active� a certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.
Page 84: Security > Access List
VIVOTEK Security > Access List Advanced Mode This section explains how to control access permission by verifying the client PC’s IP address� General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 and stream 2)� The default value is 10� If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player)�...
Page 85 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access� Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (via IE Explorer or Quick Time Player)�...
Page 86 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list� For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List�...
Page 87 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request� ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP- PEAP and EAP-TLS� Please follow the steps below to enable 802�1x settings: 1�...
Page 88 VIVOTEK 3� When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802�1x enabled switch� The devices will then start the authentication automatically� NOTE: ► The authentication process for 802�1x: 1� The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server)�...
Page 89: Ptz > Ptz Settings
VIVOTEK PTZ > PTZ settings Advanced Mode This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation� There are two ways to enable the function: The Digital name tag refers to the e-PTZ operation� It allows users to quickly move the focus to a target area for close-up viewing when the current field of view is smaller than the camera’s maximum output frame size�...
Page 90 VIVOTEK Home page in E-PTZ Mode x3.1 x3.1 x3.1 ■ The e-Preset Positions will also be displayed on the home page� Select one from the drop-down list, and the camera’s view area will move to the selected e-preset position� ■ If you have configured different e-preset positions for different streams, you can select one of the video streams to display its separate e-preset positions�...
Page 91 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol� Please follow the steps below to set up a patrol schedule: 1� Select the preset locations on the list, and click � 2� The selected preset locations will be displayed on the Patrol locations list�...
Page 92 VIVOTEK Home page in the e-PTZ Mode The Preset positions will also be displayed on the home page� Select one from the Go to drop-down list, and the Network Camera will move to the selected preset position� Patrol button: Click this button, then the Network Camera will patrol among the selected preset positions continuously�...
Page 93: Event > Event Settings
VIVOTEK Event > Event settings Advanced Mode This section explains how to configure the Network Camera to responds to particular situations (event)� A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications� Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices�...
Page 94 VIVOTEK ■ Event name: Enter a name for the event setting� ■ Enable this event: Select this option to enable the event setting� ■ Priority: Select the relative importance of this event (High, Normal, or Low)� Events with a higher priority setting will be executed first.
Page 95 VIVOTEK ■ Camera tampering detection This option allows the Network Camera to trigger when the camera detects that is is being tampered with� To enable this function, you need to configure the Tampering Detection option first. Please refer to page 109 for detailed information�...
Page 96 VIVOTEK Add server To set an event that will be recorded in videos or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send Add server the media files to) when a trigger is activated�...
Page 97 VIVOTEK To verify if the email settings are correctly configured, click Test� The result will be shown in a pop-up window� If successful, you will also receive an email indicating the result� Click Save server to enable the settings� Note that after you set up the first event server, the new event server will automatically display on the Server list�...
Page 98 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests� If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.
Page 99 VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated� Please refer to NAS server on page 113 for details� Click Save server to enable the settings� ■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If you want to use your SD card for local storage, please format it before use�...
Page 100 VIVOTEK Click 20110220 to open the directory: The format is: HH (24r) Click to open the file list for that hour 2011/02/20 2011/02/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all...
Page 101 VIVOTEK Add media Add media Click to open the media setting window� You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log�...
Page 102 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20101213_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings�...
Page 103 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. ■ File name prefix Enter the text that will be appended to the front of the file name. For example: Video_20101213_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings�...
Page 104 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action� When completed, click Save event to enable the settings and click Close to exit Event Settings page�...
Page 105 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt� If you need more information, please contact VIVOTEK technical support� Click to upload a file...
Page 106: Applications > Motion Detection
VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. 2010/12/10 17:08:56 Motion Detection Setting 1: For normal situations Motion Detection Setting 2:...
Page 107 VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure other motion detection settings for a different time period within a day, please click Profile to open the Motion Detection Profile Settings page as shown below.
Page 108 VIVOTEK NOTE: ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage� In the illustration above, frame A and frame B are two sequential images� Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting� Sensitivity is a value that expresses the sensitivity to moving objects�...
Page 109: Applications > Digital Input
VIVOTEK Applications > Digital Input Advanced Mode Connect a DI device to the camera's push-in type terminal block, the camera will automatically detect the current connection state as pulled-high or pulled-low� You may then define the triggering condition� Normal status: Select High or Low to define the "Normal status" for the digital input. The Network Camera will report the current status below�...
Page 110: Recording > Recording Settings
VIVOTEK Recording > Recording settings Advanced Mode This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: NOTE ► Please remember to format your SD card when using it for the first time. Please refer to page 115 for detailed information�...
Page 111 VIVOTEK If you enable adaptive recording on Camera A, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidth and storage space�...
Page 112 VIVOTEK 2� Destination You can select the SD card or network storage (NAS) for the recorded video files. NAS server If you have not configured a NAS server, click Add NAS server to open the server setting window and follow the steps below to set up: 1�...
Page 113 VIVOTEK If successful, you will receive a test.txt file on the network storage server. NOTE: To edit or remove an existing NAS setting, you have to turn OFF all related event or recording configuration. 3� Enter a server name� 4� Click Save to complete the settings and click Close to exit the page�...
Page 114 VIVOTEK Recording file management ■ Maximum duration (minutes): Specifies the length of each of the recorded videos. ■ Maximum file size: (MB - Megabytes): Specifies the file size limitation of each recorded video� The duration and size are the upper thresholds. The limitation is imposed when either the length or the file size is reached.
Page 115: Local Storage > Sd Card Management
VIVOTEK Local storage > SD card management Advanced Mode This section explains how to manage the local storage on the Network Camera� Here you can view SD card status, and implement SD card control� SD card staus This column shows the status and reserved space of your SD card� Please remember to format the SD card when using for the first time.
Page 116: Local Storage > Content Management
VIVOTEK Local storage > Content management Advanced Mode This section explains how to manage the content of recorded videos on the Network Camera� Here you can search and view the records and view the searched results� Searching and Viewing the Records This column allows the user to set up search criteria for recorded data�...
Page 117: Search Results
VIVOTEK Search Results The following is an example of search results� There are four columns: Trigger time, Media type, Trigger type, and Locked� Click to sort the search results in either direction� Enter a key word to filter the Numbers of entries displayed...
Page 118 VIVOTEK ■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording� You can click again to unlock the selections� For example: Click to switch pages ■...
Page 119: Appendix
VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax� This section specifies the external HTTP-based application programming interface�...
Page 120: General Cgi Url Syntax And Parameters
VIVOTEK URL Command Document for All SeriesIP8130/31 3. General CGI URL Syntax and Parameters When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory.
Page 121: Security Level
VIVOTEK URL Command Document for All SeriesIP8130/31 4. Security Level SECURITY SUB-DIRECTORY DESCRIPTION LEVEL anonymous Unprotected. 1 [view] anonymous, viewer, 1. Can view, listen, talk to camera. dido, camctrl 2. Can control DI/DO, PTZ of the camera. 4 [operator] anonymous, viewer, Operator access rights can modify most of the camera’s...
Page 122: Get Server Parameter Values
VIVOTEK URL Command Document for All SeriesIP8130/31 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>]. If you do not specify any parameters, all the parameters on the server will be returned.
Page 123 VIVOTEK URL Command Document for All SeriesIP8130/31 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network_ipaddress=192.168.0.123\r\n User's Manual - 123...
Page 124: Set Server Parameter Values
VIVOTEK URL Command Document for All SeriesIP8130/31 6. Set Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>]...
Page 125 VIVOTEK URL Command Document for All SeriesIP8130/31 Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network_ipaddress=192.168.0.123\r\n...
Page 126: Available Parameters On The Server
URL Command Document for All SeriesIP8130/31 7. Available parameters on the server This chapter defines all the parameters which can be configured or retrieved from VIVOTEK network camera or video server. The general format of description is listed in the table below...
Page 127 VIVOTEK URL Command Document for All SeriesIP8130/31 7.1 system Group: system NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) hostname string[64] Mega-Pixel Host name of server Network (Network Camera, Camera Wireless Network Camera, Video Server, Wireless Video Server). ledoff <boolean> Turn on (0) or turn off (1) all led indicators.
Page 128 VIVOTEK URL Command Document for All SeriesIP8130/31 Denver -281: GMT-07:00 Arizona -240: GMT-06:00 Central America, Central Time, Mexico City, Saskatchewan -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -180: GMT-04:30 Caracas -160: GMT-04:00 Atlantic Time,...
Page 129 VIVOTEK URL Command Document for All SeriesIP8130/31 Tbilisi, Yerevan 180: GMT 04:30 Kabul 200: GMT 05:00 Ekaterinburg, Islamabad, Karachi, Tashkent 220: GMT 05:30 Calcutta, Chennai, Mumbai, New Delhi 230: GMT 05:45 Kathmandu 240: GMT 06:00 Almaty, Novosibirsk, Astana, Dhaka, Sri...
Page 130 VIVOTEK URL Command Document for All SeriesIP8130/31 -80,-40,0, 40,41,80, 81,82,83, 120,140, 380,400,480 updateinterval 0 to Disable automatic time 3600, adjustment, otherwise, it indicates 86400, the seconds between NTP 604800, automatic update intervals. 2592000 Restore the system parameters to restore <positive default values after <value>...
Page 131 7.1.1 system.info Subgroup of system: info (The fields in this group are unchangeable.) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) modelname string[40] IP8130 Internal model name of the server (eg. IP7139) extendedmodelname string[40] IP8130 This field is equal to “modelname”. serialnumber <mac <product...
Page 132 VIVOTEK URL Command Document for All SeriesIP8130/31 which have been uploaded to the server. customlanguage_i<0~(max string Custom language name. count-1)> 7.2 status Group: status NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) di_i<0~(ndo-1)> <boolean> 0 => Inactive, normal <product dependent> 1 => Active, triggered (capability.ndi >...
Page 133 VIVOTEK URL Command Document for All SeriesIP8130/31 7.4 security Group: security NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) privilege_do view, operator, operator Indicate which privileges and admin above can control digital output (capability.ndo > 0) privilege_camctrl view, operator, view Indicate which privileges and...
Page 134 VIVOTEK URL Command Document for All SeriesIP8130/31 7.5 network Group: network NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) preprocess <positive NULL An 32-bit integer, each bit can be set separately as integer> follows: Bit 0 => HTTP service; Bit 1=> HTTPS service;...
Page 135 VIVOTEK URL Command Document for All SeriesIP8130/31 address> dns1 <ip <blank> Primary DNS server. address> dns2 <ip <blank> Secondary DNS server. address> wins1 <ip <blank> Primary WINS server. address> wins2 <ip <blank> Secondary WINS server. address> 7.5.1 802.1x Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0)
Page 136 VIVOTEK URL Command Document for All SeriesIP8130/31 7.5.2 QOS Subgroup of network: qos_cos (capability.protocol.qos.cos > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS (capability.naudio >...
Page 137 VIVOTEK URL Command Document for All SeriesIP8130/31 7.5.4 FTP Subgroup of network: ftp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) Port 21, 1025~65535 Local ftp server port. 7.5.5 HTTP Subgroup of network: http NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 80, 1025 ~ HTTP port.
Page 138 VIVOTEK URL Command Document for All SeriesIP8130/31 7.5.7 RTSP Subgroup of network: rtsp (capability.protocol.rtsp > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 554, 1025 ~ RTSP port. 65535 (capability.protocol.rtsp=1) anonymousviewing <boolean> Enable anoymous streaming viewing. authmode disable, disable RTSP authentication mode.
Page 139 VIVOTEK URL Command Document for All SeriesIP8130/31 1 ~ 255 Mutlicast time to live value. 7.5.8 SIP port Subgroup of network: sip (capability.protocol.sip> 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 1025 ~ 65535 5060 SIP port. 7.5.9 RTP port...
Page 140 VIVOTEK URL Command Document for All SeriesIP8130/31 7.6 ipfilter Group: ipfilter NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable access list filtering. admin_enable <boolean> Enable administrator IP address. admin_ip String[44] <blank> Administrator IP address. maxconnection 1~10 Maximum number of concurrent streaming connection(s).
Page 141: Video Input
VIVOTEK URL Command Document for All SeriesIP8130/31 7.7 video input Group: videoin NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) whitebalance auto, auto “auto” indicates auto white manual, balance. rbgain “manual” indicates keep current value. “rbgain” indicates using rgain and gbain.
Page 142 VIVOTEK URL Command Document for All SeriesIP8130/31 function; 0(not support), 1(support) Bit 1 => Built-in or external camera; 0 (external), 1(built-in) Bit 2 => Support pan operation; 0(not support), 1(support) Bit 3 => Support tilt operation; 0(not support), 1(support) Bit 4 => Support zoom operation;...
Page 143 VIVOTEK URL Command Document for All SeriesIP8130/31 s<0~(m-1)>_h264_ cbr, vbr cbr, constant bitrate ratecontrolmode vbr, fix quality s<0~(m-1)>_h264_ 1~5,99,100 Quality of video when choosing vbr in quant “ratecontrolmode”. 99,100 is the customized manual input setting. 1 = worst quality, 5 = best quality.
Page 144 VIVOTEK URL Command Document for All SeriesIP8130/31 7.7.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime).
Page 145 VIVOTEK URL Command Document for All SeriesIP8130/31 irismode fixed fixed Video Iris mode for DC Iris. 7.8 video input preview The temporary settings for video preview Group: videoinpreview NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) minexposure 5,15,25,30,50,6 32000 Minimum exposure time.
Page 146 VIVOTEK URL Command Document for All SeriesIP8130/31 according to mode settings. 100 means using the parameter “sharpnesspercent” Saturationpercent 0 ~ 100 Adjust saturation of image by percentage. Less 0 <-> 100 More saturation sharpnesspercent 0~100 Adjust sharpness of image by percentage.
Page 147 VIVOTEK URL Command Document for All SeriesIP8130/31 percentage. Softer 0 <-> 100 Sharper lowlightmode <boolean> Enable/disable low light mode. 7.11 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) source linein,micin micin micin =>...
Page 148: Motion Detection Settings
VIVOTEK URL Command Document for All SeriesIP8130/31 7.13 Motion detection settings Group: motion_c<0~(n-1)> for n channel product NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable motion detection. win_i<0~2>_enable <boolean> Enable motion window 1~3. win_i<0~2>_name string[40] <blank> Name of motion window 1~3.
Page 149 VIVOTEK URL Command Document for All SeriesIP8130/31 i<0~(m-1)>_win_i<0~2>_left 0 ~ 320 Left coordinate of window position. i<0~(m-1)>_win_i<0~2>_top 0 ~ 240 Top coordinate of window position. i<0~(m-1)>_win_i<0~2>_width 0 ~ 320 Width of motion detection window. i<0~(m-1)>_win_i<0~2>_height 0 ~ 240 Height of motion detection window.
Page 150 VIVOTEK URL Command Document for All SeriesIP8130/31 7.15 DDNS Group: ddns (capability.ddns > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the dynamic DNS. provider Safe100, DyndnsDy Safe100 => safe100.net DyndnsDynamic, namic DyndnsDynamic => dyndns.org DyndnsCustom, <product...
Page 151 VIVOTEK URL Command Document for All SeriesIP8130/31 7.16.1 Express link Group:expresslink NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable express link. state onlycheck, <blank> “onlycheck” : You have to input the onlyoffline, host name of your camera and press checkonline, "Register"...
Page 152: System Log
VIVOTEK URL Command Document for All SeriesIP8130/31 forwarding 7.18 System log Group: syslog NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enableremotelog <boolean> Enable remote log. serverip <IP address> <blank> Log server IP address. serverport 514, 1025~65535 514 Server port used for log.
Page 153 Hyperlink of the logo vivotek.co logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo theme_option 1~3: One of the default themes. 4: Custom definition. theme_color_font string[7] #ffffff Font color...
Page 154: Privacy Mask
VIVOTEK URL Command Document for All SeriesIP8130/31 theme_color_configbackground string[7] # 323232 Background color of configuration area. theme_color_videobackground string[7] # 565656 Background color of video area. theme_color_case string[7] # 323232 Frame color custombutton_manualtrigger_s <boolean> Show or hide manual trigger (VI) button in homepage 0 ->...
Page 155 VIVOTEK URL Command Document for All SeriesIP8130/31 7.22 Capability Group: capability NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) api_httpversion 0100a 0100a The HTTP API version. bootuptime <positive Server bootup time. integer> Number of IR interfaces. <positive (Recommand to use ir for built-in IR and extir for integer>...
Page 156 VIVOTEK URL Command Document for All SeriesIP8130/31 naudiosetting <positive Number of audio settings integer> per channel. nuart Number of UART <positive interfaces. integer> nmotion 0, <positive Number of motion window. integer> nmotionprofile 0, <positive Number of motion profiles. integer> ptzenabled 0, <positive...
Page 157 VIVOTEK URL Command Document for All SeriesIP8130/31 1(bit 1 ~ 7 are invalid) Bit 9 => Reserved bit; Invalidate lens_pan, Lens_tilt, lens_zoon, lens_focus, len_iris. 0(fields are valid), 1(fields are invalid) windowless <boolean> Indicate whether to support windowless plug-in. eptz 0, <positive A 32-bit integer, each bit integer>...
Page 158 VIVOTEK URL Command Document for All SeriesIP8130/31 RTP over TCP. protocol_rtp_http <boolean> Indicate whether to support RTP over HTTP. protocol_spush_mjpe <boolean> Indicate whether to support server push MJPEG. protocol_snmp <boolean> Indicate whether to support SNMP. protocol_ipv6 <boolean> Indicate whether to support IPv6.
Page 159 VIVOTEK URL Command Document for All SeriesIP8130/31 1: Supported camctrl_privilege <boolean> Indicate whether to support “Manage Privilege” of PTZ control in the Security page. 1: support both /cgi-bin/camctrl/camctrl.cgi /cgi-bin/viewer/camctrl.cgi 0: support only /cgi-bin/viewer/camctrl.cgi transmission_mode Indicate transmission mode of the machine: TX = server, Rx = receiver box, Both = DVR.
Page 160 VIVOTEK URL Command Document for All SeriesIP8130/31 event/control transfer. joystick <boolean> Indicate whether to support joystick control. storage_dbenabled <boolean> Media files are indexed in database. nanystream 0, <positive number of any media integer> stream per channel <boolean> Indicate whether to support Intelligent Video analysis <boolean>...
Page 161: Event Setting
VIVOTEK URL Command Document for All SeriesIP8130/31 7.24 Event setting Group: event_i<0~2> PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry. enable 0, 1 Enable or disable this event. priority 0, 1, 2 Indicate the priority of this event: “0”...
Page 162 VIVOTEK URL Command Document for All SeriesIP8130/31 mdwin <integer> Indicate the source window id of motion detection. This field is required when trigger condition is “md”. One bit represents one window. The LSB indicates the 1 window. For example, to detect the 1 and 3 windows, set mdwin as 5.
Page 163 VIVOTEK URL Command Document for All SeriesIP8130/31 action_cf_media NULL, 0~4 NULL Index of the attached media. action_cf_datefolder <boolean> Enable this to create folders by date, time, and hour automatically. action_cf_backup <boolean> Enable the capability of backing up recorded files to the SD card when network is lost.
Page 164 VIVOTEK URL Command Document for All SeriesIP8130/31 email_address string[128] NULL Email server address. email_sslmode 0, 1 Enable support SSL. email_port 0~65535 Port to connect to the server. email_username string[64] NULL Username to log in to the server. email_passwd string[64] NULL Password of the user.
Page 165 VIVOTEK URL Command Document for All SeriesIP8130/31 videoclip_source <integer> Indicate the source of media stream. 0 means the first stream. 1 means the second stream and etc. 2 means the third stream and etc. 3 means the fourth stream and etc.
Page 166 VIVOTEK URL Command Document for All SeriesIP8130/31 notifyserver 0~31 Indicate which notification server is scheduled. One bit represents one application server (server_i0~i4). bit0 (LSB) = server_i0. bit1 = server_i1. bit2 = server_i2. bit3 = server_i3. bit4 = server_i4. For example, enable server_i0, server_i2, and server_i4 as notification servers;...
Page 167 VIVOTEK URL Command Document for All SeriesIP8130/31 dest The destination to store the recorded data. “cf” means local storage (CF or SD card). “0” means the index of the network storage. cffolder string[128] NULL Folder name. maxsize 100~900 Unit: Mega bytes.
Page 168 VIVOTEK URL Command Document for All SeriesIP8130/31 install manual => Create self-signed certificate manually. install => Create certificate request and install. status -3 ~ 1 Specify the https status. -3 = Certificate not installed -2 = Invalid public key -1 = Waiting for certificate...
Page 169: Region Of Interest
VIVOTEK URL Command Document for All SeriesIP8130/31 7.30 Region of interest Group: roi_c<0~(n-1)> for n channel product, and m is the number of streams which support ROI. (capability.eptz > 0) PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) s<0~(m-1)>_home "0~1104","0~6 ROI left-top corner coordinate.
Page 170 VIVOTEK URL Command Document for All SeriesIP8130/31 patrolseq string[120] <blank> The patrol sequence of ePTZ. All the patrol position indexes will be separated by "," patroldwelling string[160] <blank> The dwelling time (unit: second) of each patrol point, separated by “,”.
Page 171 VIVOTEK URL Command Document for All SeriesIP8130/31 8. Useful Functions 8.1 Query Status of the Digital Input (capability.ndi > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3] If no parameter is specified, all of the digital input statuses will be returned.
Page 172: Capture Single Snapshot
VIVOTEK URL Command Document for All SeriesIP8130/31 8.2 Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail.
Page 173: Account Management
VIVOTEK URL Command Document for All SeriesIP8130/31 8.3 Account Management Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the “username” field is necessary. It will use the default value of other fields if not specified.
Page 174: System Logs
VIVOTEK URL Command Document for All SeriesIP8130/31 8.4 System Logs Note: This request require Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the most up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n 8.5 Upgrade Firmware...
Page 175 VIVOTEK URL Command Document for All SeriesIP8130/31 8.6 ePTZ Camera Control (capability.eptz > 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&auto=<value>] – Auto pan, patrol [&zoom=<value>] – Zoom in, out [&zooming=<value>&zs=<value>] –...
Page 176 VIVOTEK URL Command Document for All SeriesIP8130/31 zoom wide Zoom larger view with current speed. tele Zoom further with current speed. zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control.
Page 177 VIVOTEK URL Command Document for All SeriesIP8130/31 8.7 ePTZ Recall (capability.eptz > 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than One of the present positions to recall.
Page 178 VIVOTEK URL Command Document for All SeriesIP8130/31 relative path according to the current path. 8.9 IP Filtering Note: This request requires Administrator access privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/ipfilter.cgi? method=<value>&[start=<ipaddress>&end=<ipaddress>][&index=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION method addallow Add allowed IP address range to the server. Start and end parameters must be specified.
Page 179 VIVOTEK URL Command Document for All SeriesIP8130/31 8.9.1 IP Filtering for ONVIF Syntax: <product dependent> http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<val ue>][&return=<return page>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<retu rn page>] PARAMETER VALUE DESCRIPTION type NULL Get IP filter type allow, deny Set IP filter type method addv4 Add IPv4 address into access list.
Page 180 VIVOTEK URL Command Document for All SeriesIP8130/31 8.10 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/admin/ ctrlevent.cgi...
Page 181 VIVOTEK URL Command Document for All SeriesIP8130/31 8.11 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp”...
Page 182 VIVOTEK URL Command Document for All SeriesIP8130/31 8.13 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string>...
Page 183 VIVOTEK URL Command Document for All SeriesIP8130/31 isLocked <boolean> Optional. Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text>...
Page 184 VIVOTEK URL Command Document for All SeriesIP8130/31 Command: update PARAMETER VALUE DESCRIPTION label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status.
Page 185 VIVOTEK URL Command Document for All SeriesIP8130/31 Subgroup of stormgr: i<0~(n-1)>: n is the total number of displayed records. Element name Type Description label <Integer Primary Key> A unique integer. triggerType <Text> Indicate the event trigger type. mediaType <Text> Indicate the file media type.
Page 186 VIVOTEK URL Command Document for All SeriesIP8130/31 <isLocked>0</isLocked> <triggerTime>2009-01-24 12:00:00</triggerTime> <backup>0</backup> </i0> <i1> <label>2</label> <triggerType>di</triggerType> <mediaType>snapshot</mediaType> <destPath>/mnt/auto/NCMF/123/123.jpg</destPath> <resolution>800x600</resolution> <isLocked>0</isLocked> <triggerTime>2009-01-24 12:01:00</triggerTime> <backup>0</backup> </i1> </stormgr> Ex. Local storage status in XML format. <?xml version="1.0" encoding="ISO-8859-1" ?> <stormgr version="0.0.0.1"> <disk> <i0> <name>SDcard</name>...
Page 187 VIVOTEK URL Command Document for All SeriesIP8130/31 Command: queryStatus PARAMETER VALUE DESCRIPTION retType xml or javascript Optional. Ex. retype=javascript The default return message is in XML format. Ex. Query local storage status and call for javascript format return message. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript There are two cgi commands for download and composing jpegs to avi format.
Page 188 VIVOTEK URL Command Document for All SeriesIP8130/31 <servername> http:// /cgi-bin/admin/ jpegtoavi.cgi ?resolution=800x600&fps=1&list=’/mnt/auto/CF/NCMF/video1650.jpg’, ’/mnt/auto/C F/NCMF/video1651.jpg’, ’/mnt/auto/CF/NCMF/video1652.jpg’, 8.14 Virtual input (capability.nvi > 0) Note: Change virtual input (manual trigger) status. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION vi<num> state[(duration)nstate] Ex: vi0=1 Setting virtual input 0 to trigger state Where "state"...
Page 189 VIVOTEK URL Command Document for All SeriesIP8130/31 VI index is out of range. 3. setvi.cgi?vi=1 No VI index is specified. The resource is unavailable, ex. Virtual input is waiting for next state. Examples: 1. setvi.cgi?vi0=0(15000)1 2. setvi.cgi?vi0=1 Request 2 will not be accepted during the execution time(15 seconds).
Page 190 VIVOTEK URL Command Document for All SeriesIP8130/31 reftime mm:ss The time Reference time for maxsft and minsft. camera (This provides more precise time control to eliminate receives the the inaccuracy due to network latency.) request. Ex: Request the streaming from 12:20 rtsp://10.0.0.1/live.sdp?maxsft=10&reftime=12:30...
Page 191 VIVOTEK URL Command Document for All SeriesIP8130/31 <product dependent> input setting. 1 = worst quality, 5 = best quality. <product dependent> mjpeg_qvalue 10~200 Manual video quality level 2~97 <product input. <product dependent> dependent> (This must be present if mjpeg_quant is equal to 0, 99) <product dependent>...
Page 192 VIVOTEK URL Command Document for All SeriesIP8130/31 8.17 Export Files Note: This request requires Administrator privileges. Method: GET Syntax: For daylight saving time configuration file: http://<servername>/cgi-bin/admin/exportDst.cgi For language file: http://<servername>/cgi-bin/admin/export_language.cgi?currentlanguage=<value> PARAMETER VALUE DESCRIPTION currentlanguage 0~20 Available language lists. Please refer to:...
Page 193 VIVOTEK URL Command Document for All SeriesIP8130/31 filename =<file name>\r\n \r\n <multipart encoded form data> For setting backup file: http://<servername>/cgi-bin/admin/upload_backup.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upload this one to camera.
Page 194: Technical Specifications
Triple-window video motion detection 80 mm 92 mm All speci cations are subject to change without notice. Copyright © 2012 VIVOTEK INC. All rights reserved. Distributed by: VIVOTEK INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
Page 195: Technology License Notice
VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES� FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW�VIALICENSING�COM�...
Page 196: Electromagnetic Compatibility (Emc)
取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc� cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice� VIVOTEK Inc� makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose�...

This manual is also suitable for:

Ip8131

Vivotek IP8130 User Manual

Overview

Accessing the Network Camera

Main Page

Client Settings

Configuration

Appendix

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek IP8130

Summary of Contents for Vivotek IP8130

This manual is also suitable for:

Table of Contents
