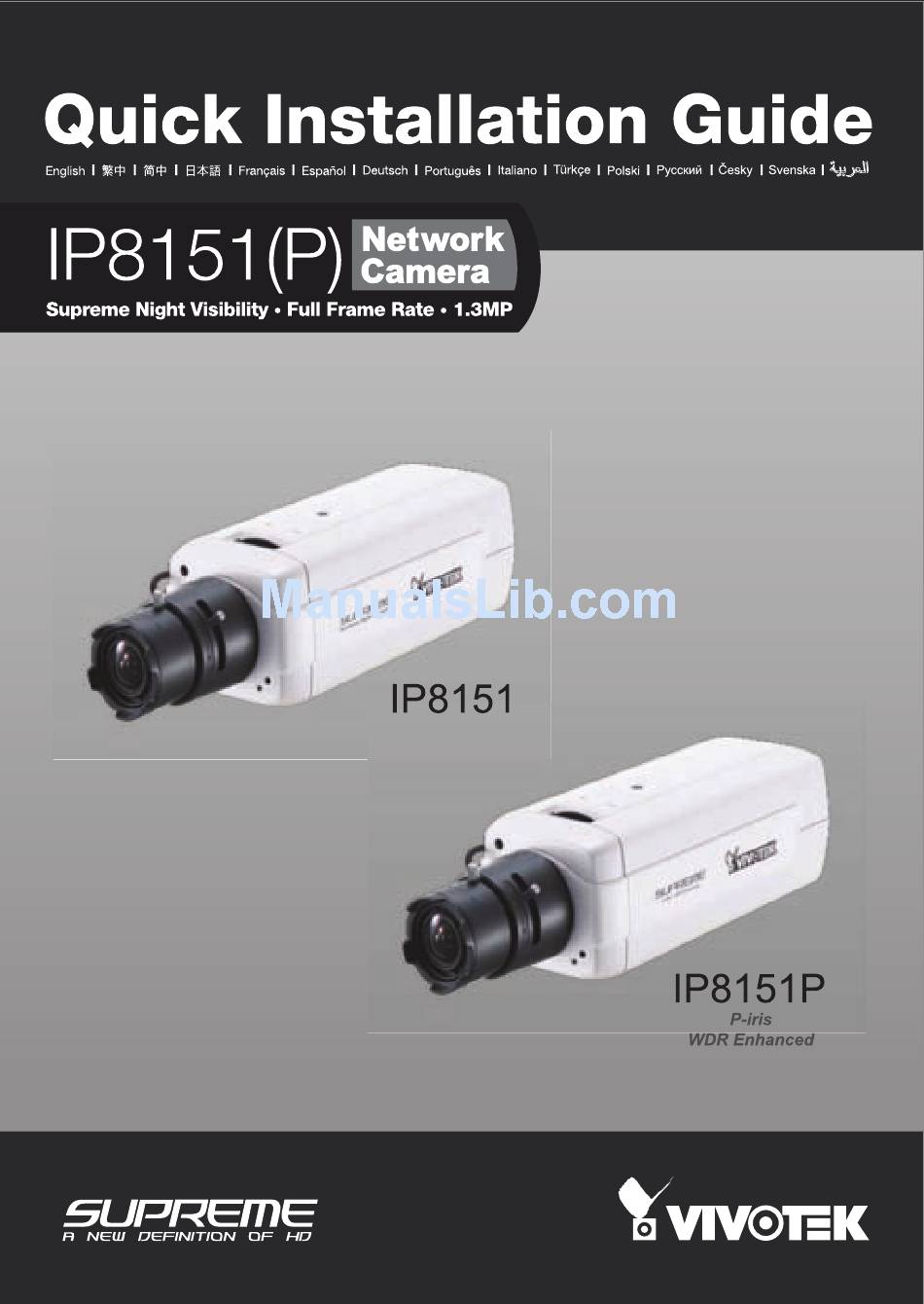

Vivotek IP8151 Quick Installation Manual
Supreme night visibility full frame rate 1,3mp
Hide thumbs
Also See for IP8151:
- User manual (181 pages) ,
- White paper (10 pages) ,
- Specification (2 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivotek IP8151
Summary of Contents for Vivotek IP8151
- Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera away soon as smoke or unusual odors are from water. If the Network Camera detected. becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.
- Page 3 Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces. during a lightning storm. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert sharp or tiny objects into the Network Camera. EN - 2...
-
Page 4: Package Contents
Package Contents IP8151 / IP8151P Power Adapter Camera Stand CS-mount Lens Software CD Quick Installation Guide Warranty Card L-type Hex Key Wrench EN - 3... -
Page 5: Physical Description
NTSC/PAL Switch MIC Switch Power Cord Socket Ethernet 10/100 RJ45 Socket General I/O Terminal Block Recessed Reset Button Focus Assist Button (IP8151P only) DC-iris Control Cable Socket (IP8151) P-iris Control Cable Socket (IP8151P) Lens Focus Controller Zoom Controller EN - 4... -
Page 6: Mounting The Lens To The Camera
1. Mount the lens by turning it clockwise onto the camera mount until it stops. If necessary, turn the lens counterclockwise slowly until it gets the best attitude. 2. Connect the DC-iris control cable to the socket. (IP8151) Connect the P-iris control cable to the socket. (IP8151P) For further setup, please refer to the lens’... -
Page 7: Power Over Ethernet (Poe)
Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a... -
Page 8: Assigning An Ip Address
"Next" button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer. -
Page 9: Ready To Use
Ready to Use 1. Access the Network Camera from the LAN. 2. Retrieve live video through a web browser or recording software. 3. Unscrew the zoom controller to adjust the zoom factor. Upon completion, tighten the zoom controller. 4. Unscrew the focus controller to adjust the focus range. Upon completion, tighten the focus controller. -
Page 10: Fine-Tune The Camera Focus
Fine-tune the Camera Focus Please follow the steps below to fine-tune the camera focus: 1. Use the supplied L-type hex key wrench to loosen the ring screw; the adjustment ring will become rotatable. 2. Rotate the adjustment ring to fine-tune the distance between the sensor and the lens;...
