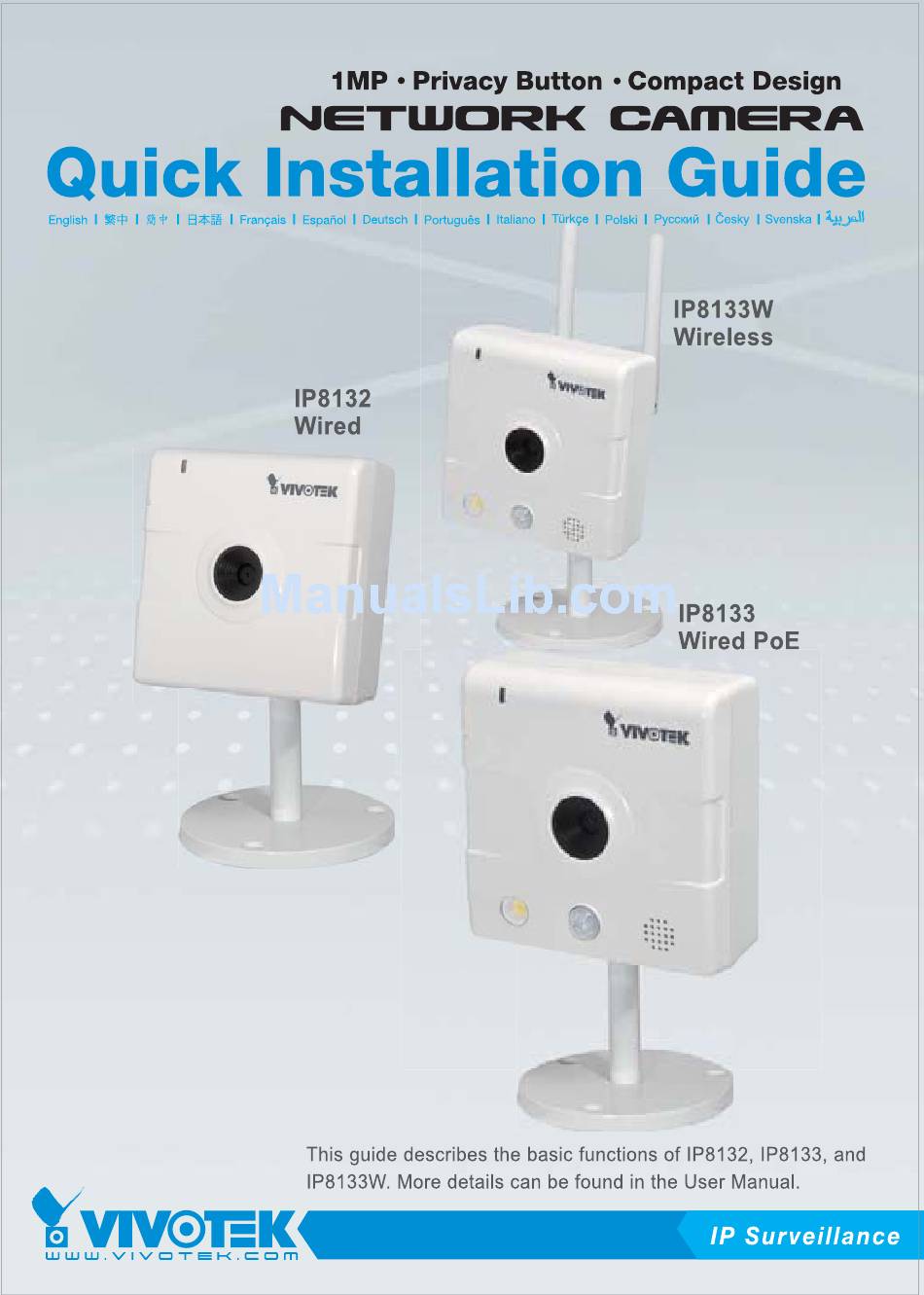

Vivotek IP8132 Wired Quick Installation Manual
Hide thumbs
Also See for IP8132 Wired:
- User manual (161 pages) ,
- User manual (142 pages) ,
- Quick installation quide (7 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Vivotek IP8132 Wired
Summary of Contents for Vivotek IP8132 Wired
- Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera away soon as smoke or unusual odors are from water. If the Network Camera detected. becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.
- Page 3 Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces. during a lightning storm. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert sharp or tiny objects into the Network Camera. EN - 2...
-
Page 4: Package Contents
Package Contents IP8132 IP8133 IP8133W Power Adaptor (+5V, 2A) & Ferrite Core Camera Stand Software CD Warranty Card Quick Installation Guide Screws Antennas (IP8133W) EN - 3... -
Page 5: Front Panel
Physical Description Front Panel Status LED IP8132 Microphone Lens NOTE: The front view of IP8133 is identical to that of IP8133W except the wireless antenna. Status LED IP8133W Microphone Speaker White-light LED PIR Sensor Item LED status Description Steady Red Power on and system boot Red LED off Power off... -
Page 6: Back Panel
Back Panel IP8132 Ethernet 10/100 RJ45 Socket General I/O Terminal Block Power Cord Socket Recessed Reset Button IP8132 MAC:0002D132C353 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Install Ferrite Core
Install Ferrite Core 1. Unsnap the two halves of the ferrite core. 2. Attach the ferrite core to the power cord as close to the DC connector as possible. Fold the ferrite core over the power cord, wrap the power cord once, and snap the small latches together. - Page 8 Wireless Connection: Using the WPS Button 1. Make sure your AP (Access Point) and Operating System support WPS (Wi-Fi Protected Setup) functions. WPS enables easy setup with compatible APs. 2. Disconnect your LAN cable, and wait for the LED to turn red. 3.
-
Page 9: Assigning An Ip Address
“Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After a brief search, the main installer window will pop up. Double-click on the MAC address that matches the one printed on the camera label or the serial number on the package box label to open a browser management session with the Network Camera.
