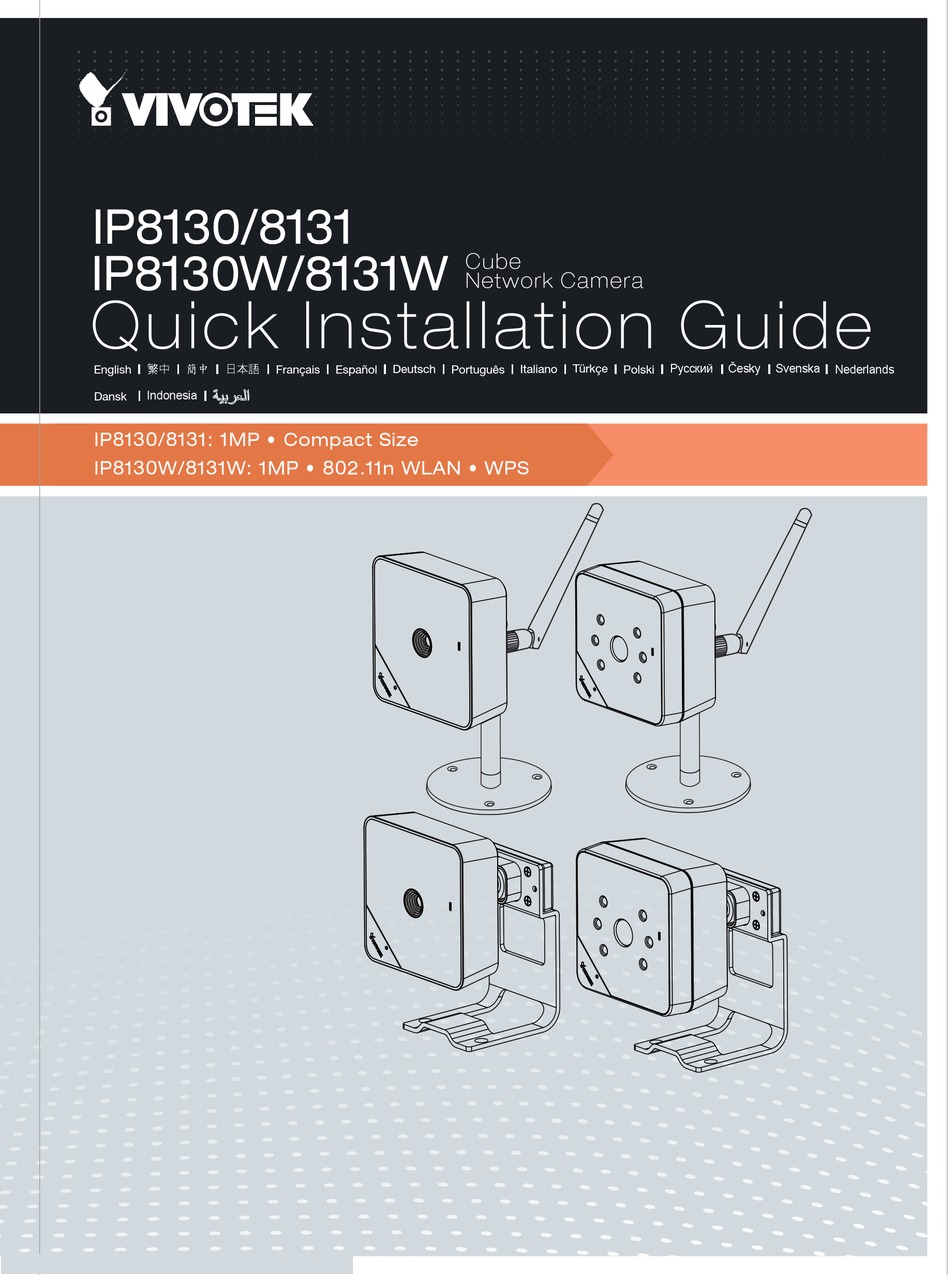

- Page 1 IP8130/8131 IP8130W/8131W Cube Network Camera Quick Installation Guide Русский Česky Svenska 繁中 簡中 日本語 Nederlands Türkçe English Français Español Deutsch Português Italiano Polski Indonesia Dansk IP8130/8131: 1MP • Compact Size IP8130W/8131W: 1MP • 802.11n WLAN • WPS...
-
Page 2: Package Contents
Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert sharp or tiny objects into the Network Camera. Package Contents IP8130 IP8131 IP8130W IP8131W Power Adaptor (+12V, 1A) Camera Stand Antenna Software CD... -
Page 3: Front Panel
Physical Description Front Panel IP8130/8130W Status LED Lens Microphone MicroSD/SDHC/ SDXC Card Slot IP8131/8131W WPS button Lens Status LED IR LEDs Microphone Item LED status Description Steady Red Powered on, during system boot, or indicating no network connection All LED off Powered off Blinking Blue every 0.15 sec. -
Page 4: Back Panel
Back Panel The back panels are identical for all models. Antenna Connector (for wireless models) Reset Button Power Cord General I/O Socket Terminal Block Ethernet 10/100 RJ45 Socket Audio GND Audio Out Audio out cable is user-supplied. Install Camera to Stand Attach the camera to stand and orient the shooting angle. -
Page 5: Network Deployment
Install the Antenna (wireless models) An antenna comes with the camera. Install it by turning clockwise to attach to the connector. Network Deployment LAN Connection 1. If you have external devices such as sensors and alarms, make connections from the general I/O terminal block. -
Page 6: Assigning An Ip Address
“Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After a brief search, the main installer window will pop up. Double-click on the MAC address that matches the one printed on the camera label or the serial number on the package box label to open a browser management session with the Network Camera. - Page 7 Wireless Connection: Using the WPS Button 1. Make sure your AP (Access Point) and Operating System support WPS (Wi-Fi Protected Setup) functions. WPS enables easy setup with compatible APs. 2. Disconnect your LAN cable, and connect the power cord. 3. Wait for 1 minute for the camera to boot up. Press the WPS button for 1 second. The front panel LED should blink blue.
- Page 8 Wireless Connection: Manual Configuration 1. In addition to the use of WPS function, you can also use a wired connection to manually set up your wireless configuration. 2. Enter the Configuration > Wireless > WLAN page. Key in the same wireless settings as those on your router/AP (SSID, Encryption type, and Pre-shared key).
- Page 9 P/N:625021700G Rev. 1.0 All specifications are subject to change without notice. Copyright 2013 VIVOTEK INC. All rights reserved. VIVOTEK INC. VIVOTEK USA, INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. 2050 Ringwood Avenue, San Jose, CA 95131 |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com...
