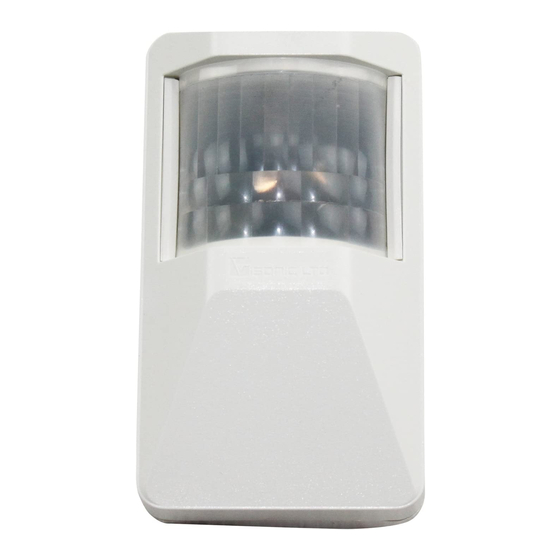

Visonic SRN-2000 Installation Instructions Manual

SRN-2000
SUPER-RED SERIES
1. INTRODUCTION
The SRN-2000 series of passive infrared detectors presents a
technological break-through that is revolutionizing the PIR industry.
The SRN-2000 employs an innovative approach by combining
several different design techniques to solve the industry's biggest
problem - false alarms.
By incorporating programmable pulse counter, coverage range
control adjustment RF protection up to 1000 MHz, visible light
rejection filter, maskable lens patterns, background noise test point
and dual-element low-noise pyroelectric detector, the SRN-2000 does
more than give lip service - it truly masters the false alarm
problem.
As the only PIR manufacturer in the world to produce its own Fresnel
lens assemblies Visonic Ltd. offers an outstanding variety of 40 easy-
to-change lenses - more than the entire combined industry
competition.
2. FEATURES
SUPER-RED SRN-2000 series offers the following features:
Incomparable flexibility:
•
30º vertical and horizontal adjustments
•
Visible pattern locator
•
Surface, corner and flush mounting
•
Switchable walk-test indicator
•
N.C. silent relay
•
Tamper switch
•
Low current drain 17mA
•
9-16 VDC supply voltage
3. SUPER-RED SRN-2000 MODELS
SRN-2000: Standard model, with pulse counter.
SRN-2000 C/PC: Same as SRN-2000 but with a change-over relay
contact (Form-1C).
4. LENS SELECTION
Coverage
Lens No. 100 is the standard
pattern supplied with SUPER-
RED SRN-2000.
Printed Circuit Board elevation
scale is factory preset at -5°. For
application of PCB elevation
scale, see Table 1.
D-1201-0
TOP VIEW
90°
SIDE VIEW
8 ft
-5°
-15°
-30°
10 20 30 40 50 60 ft
Figure 1. Coverage Pattern
– Lens No. 100

Installation instructions

Illustrated in the "Super Red Lens Library": • 9 wide-angle lenses up to
140°. • 3 long-range corridors up to 120 ft. • 6 pet alleys. • 3 finger
curtains. • 8 lenses for combined ceiling and room coverage. • 10 unique
lenses for multiple 2-3 room and corridor coverage. • 6 solid curtains. The
'Super-Red Lens Library' provides the most extensive and effective
coverage that saves you time and money in every installation.
Flexibility takes on new meaning with the SRN-2000 series. With 40
interchangeable lenses, 30° vertical and horizontal adjustments, and
surface, corner or flush mounting installation - you know SRN-2000 is
the only universal PIR you can truly standardize on ... without
compromising!!!
Other features include LED selector, anti-tamper switch, silent relay
and a broad power supply range. A special material allows masking
of specific beams to eliminate potential false alarm sources.
Visonic Ltd., a leader in the field of passive infrared detection devices,
continues to develop lens technology to satisfy the expanding needs
and demands of the security industry.
False alarm immunity:
•
Programmable pulse
environmental disturbances.
•
Adjustable coverage range
•
Unprecedented RF immunity – rejects RF interference up to
2000 MHz.
•
Light rejection filter – rejects visible light variations.
•
Maskable lens patterns – to block thermal disturbances.
•
Test point – to identify and eliminate background disturbances.
•
Dual-element low-noise pyroelectric detector – rejects thermal
variations with maximum signal to noise ratio.
Special features are available with other models. See Section 3.
SRN-2000 UL: Same as SRN-2000 but with UL compliance.
Lens No. 100 Specifications
Total Number of Beams: 36
3 layers: Upper, Intermediate and Downward.
• Upper Layer - 9 twin beams, optically split to 18 beams.
• Intermediate Layer - 5 twin beams (split), angled 10
• Downward Layer - 4 twin beams (split), angled 25
0
Angle span: 90 Wide Angle.
Coverage range: Maximum 60 ft (18 m) radius.
If the standard No. 100 lens does not meet your coverage
requirements, refer to the SUPER-RED LENS LIBRARY and select
the pattern you need. Your nearest Visonic Ltd. distributor will be glad
to supply you with any lens that suits your particular requirements.
For UL installations, use only UL approved lenses listed at the
end of Section 4.
LENS LIBRARY
SUPER-RED offers a selection of more than 40 lens patterns to
provide the best coverage pattern for any installation. The SUPER-
RED LENS LIBRARY is divided into the following nine sections:

Section 1: Corner Mounting Wide-Angle 90

This section comprises six lenses which provide the maximum room
coverage, when the PIR is installed in the corner.
counter - to virtually eliminate
0
below Upper Layer.
0
below Upper Layer.
0 0
-100 .
