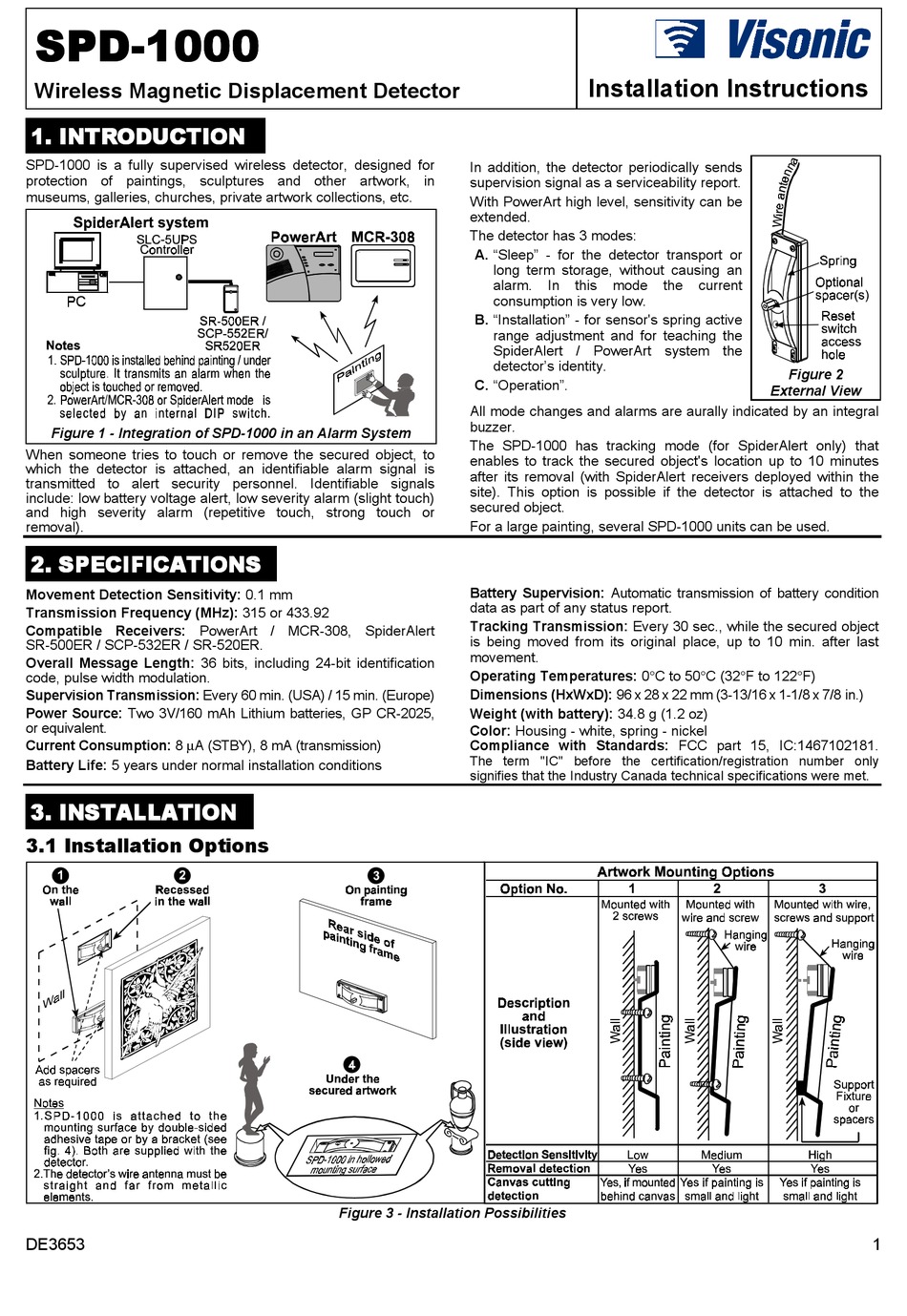

Visonic SPD-1000 Installation Instructions

SPD SPD-1000 -1000
SPD SPD -1000 -1000
Wireless Magnetic Displacement Detector
1 1 1 1 . INTRODUCTION . INTRODUCTION
. INTRODUCTION . INTRODUCTION
SPD-1000 is a fully supervised wireless detector, designed for
protection of paintings, sculptures and other artwork, in
museums, galleries, churches, private artwork collections, etc.
Figure 1 - Integration of SPD-1000 in an Alarm System
When someone tries to touch or remove the secured object, to
which the detector is attached, an identifiable alarm signal is
transmitted to alert security personnel. Identifiable signals
include: low battery voltage alert, low severity alarm (slight touch)
and high severity alarm (repetitive touch, strong touch or
removal).
2 2 2 2 . SPECIFICATIONS . SPECIFICATIONS . SPECIFICATIONS . SPECIFICATIONS
Movement Detection Sensitivity: 0.1 mm
Transmission Frequency (MHz): 315 or 433.92
Compatible Receivers: PowerArt / MCR-308, SpiderAlert
SR-500ER / SCP-532ER / SR-520ER.
Overall Message Length: 36 bits, including 24-bit identification
code, pulse width modulation.
Supervision Transmission: Every 60 min. (USA) / 15 min. (Europe)
Power Source: Two 3V/160 mAh Lithium batteries, GP CR-2025,
or equivalent.
Current Consumption: 8 µA (STBY), 8 mA (transmission)
Battery Life: 5 years under normal installation conditions
3 3 3 3 . INSTALLATION . INSTALLATION
. INSTALLATION . INSTALLATION
3.1 Installation Options
DE3653
In addition, the detector periodically sends
supervision signal as a serviceability report.
With PowerArt high level, sensitivity can be
extended.
The detector has 3 modes:
A . "Sleep" - for the detector transport or
long term storage, without causing an
alarm.
consumption is very low.
B . "Installation" - for sensor's spring active
range adjustment and for teaching the
SpiderAlert / PowerArt system the
detector's identity.
C . "Operation".
All mode changes and alarms are aurally indicated by an integral
buzzer.
The SPD-1000 has tracking mode (for SpiderAlert only) that
enables to track the secured object's location up to 10 minutes
after its removal (with SpiderAlert receivers deployed within the
site). This option is possible if the detector is attached to the
secured object.
For a large painting, several SPD-1000 units can be used.
Battery Supervision: Automatic transmission of battery condition
data as part of any status report.
Tracking Transmission: Every 30 sec., while the secured object
is being moved from its original place, up to 10 min. after last
movement.
Operating Temperatures: 0°C to 50°C (32°F to 122°F)
Dimensions (HxWxD): 96 x 28 x 22 mm (3-13/16 x 1-1/8 x 7/8 in.)
Weight (with battery): 34.8 g (1.2 oz)
Color: Housing - white, spring - nickel
Compliance with Standards: FCC part 15, IC:1467102181.
The term "IC" before the certification/registration number only
signifies that the Industry Canada technical specifications were met.
Figure 3 - Installation Possibilities
Installation Instructions
In this mode the current
Figure 2
External View
