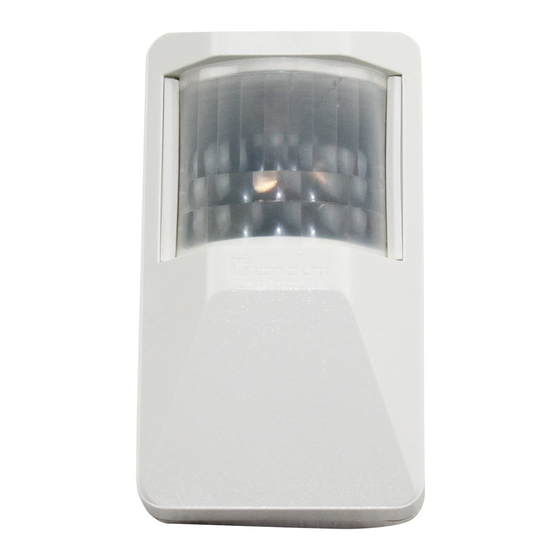

Srn-2000 series, professional all purpose pir detector

Advertisement

Quick Links

6516(5,(6
3URIHVVLRQDO$OO3XUSRVH3,5'HWHFWRU
352'8&7'(6&5,37,21
,QWURGXFWLRQ
The SRN-2000 series employs an innovative approach by
combining several different design techniques to solve the
industry's biggest problem - false alarms.
By incorporating programmable pulse counter, coverage-range
control adjustment, RF protection up to 1000 MHz, visible light
rejection filter, maskable lens patterns, background noise test
point and dual element low-noise pyroelectric detector, the
SRN-2000 does more than give lip service - it truly masters the
false alarm problem.
As the only PIR manufacturer in the world to produce its own
Fresnel lens assemblies, Visonic Ltd. offers an outstanding
variety of 45 easy-to-change lenses - more than the entire
combined industry competition.
Illustrated in the "Super Red Lens Library:" • 9 wide-angle
S
. •3 long-range corridors up to 120 ft. • 6 pet
lenses up to 140
alleys. •3 finger curtains. • 8 lenses for combined ceiling and
room coverage. • 10 unique lenses for multiple 2-3 room and
corridor coverage. • 6 solid curtains. The "Super-Red Lens
Library" provides the most extensive selection of coverages and
saves you time and money in every installation.
Flexibility takes on new meaning with the SRN-2000 series. With
45
interchangeable
lenses,
adjustments, and surface, corner or flush mounting installation
from 0 to 5 m (17 feet) height you know SRN-2000 is the only
universal PIR you can truly standardize on... without
compromising!!!
Other features include LED selector, anti-tamper switch, silent
relay and a broad power supply range. A special material allows
masking of specific beams to eliminate potential false alarm
sources.
63(&,),&$7,216

OPTICAL

Standard Lenses: SRN-2000 Lens No. 100
SRN-2020 Lens No. 100
SRN-2000H Lens No. 52
SRN-2000R Lens No. 55
Interchangeable Lenses: See SUPER-RED Lens Library
Adjustment: Vertical:+10° to -20° Calibrated scale.
Horizontal: up to 30°
ELECTRICAL
Voltage: 9 to 16 VDC
Current: 20mA
Relay output: Normally Closed (fail safe) contacts. 18 ohm
resistor in series with contacts. Rating-0.1A resistive/24VDC.
Alarm period: 2-3 seconds
Tamper contacts: Normally Closed. Rating - 0.5A resistive/24
VDC
LED: Walk Test - (switchable)
Testing: Background noise Test Point
Detector: Dual-element low-noise pyroelectric detector
02'(/6$1'/(16(6
6XSHU5HG6510RGHOV
SRN-2000: Standard model, with pulse counter.
SRN-2020: Similar to SRN-2000, but without pulse counter.
SRN-2000H: Horizontally mounted PIR provides the largest Solid
Curtain coverage 18x18m (60x60 ft) and five interchangeable
DE1200
S
30
vertical
and
horizontal
Installation Instructions
)HDWXUHV
SUPER-RED SRN-2000 series offers the
following features:
Incomparable Flexibility:
• 30° Vertical and Horizontal Adjustments
• 0-5m (17 feet) Installation Height
• Visible Pattern Locator
• Surface, Corner and Flush Mounting
• Switchable Walk-Test Indicator
• N.C. Silent Relay
• Tamper Switch
• Low Current Drain 17mA
• 9-16 VDC supply voltage
False Alarm Immunity:
• Programmable Pulse Counter (SRN-2000) - to virtually
eliminate environmental disturbances
• Adjustable Coverage Range - to adjust coverage range to
room size
• Unprecedented RF Immunity - rejects RF interference up to
1000MHZ
• Light Rejection Filter - rejects visible light variations
• Maskable Lens Patterns - to block thermal disturbances
• Test-Point - to identify and eliminate background distur-
bances
• Dual-Element Low-Noise Pyroelectric Detector - rejects
thermal variations with maximum signal to noise ratio.
Special features are available with other models. See para. 3.1.
Coverage-Range Control: Adjustable from 100% to 50% of the
nominal lens coverage range.
Pulse Counter: (model SRN-2000) Programmable to 1, 2 or 3
pulses with self- adjusting walk-test override.
Wall or corner mounting. Optional bracket model SRF-201 for
flush mounting.
ENVIRONMENTAL
Operating temperature:-10°C to 50°C (14°F to 122°F).
Storage temperature:-20°C to 60°C (-4°F to 140°F).
RFl Protection: No alarm when tested on 21 different
frequencies from 20 to 1000 MHz with 20 Watts radio transmitter
at 1.2m (4 ft) distance or 124 Watts at 3m (10 ft) distance
(corresponds to field strength of 20V/m).
PHYSICAL
Dimensions: 70 x 120 x 48 mm (2.7 x 4.7 x 1.9 in)
Weight: 140 g (4.5 ounces).
Colors: white.
lenses. See Lens Library.
SRN-2000R: Ceiling mounted PIR provides maximum 6x18m
(20x60 ft) floor coverage when mounted at 6m (20 ft) height.
SRN-2000M: Similar to SRN-2000, but with additional alarm
latching memory for multiple PIR installation on a single zone.
SRN-2000PC: Equipped with a programmable pulse counter - up
Figure 1 -
Detector's view
1
