Visonic CLIP Series Installation Instructions

&/,3
The Smallest Passive Infra Red Detector Series
,1752'8&7,21
The new CLIP series features the smallest and most elegant passive infrared
(PIR) detectors presently marketed. The series includes four models, CLIP-1
through CLIP-4, each with a different detection pattern.
False alarms caused by environmental disturbances are virtually eliminated by a
combination of a light rejection filter and a low-noise pyroelectric detector. All four
CLIP models are equipped with a built-in two-step alternate polarity pulse counter
for additional false-alarm protection. They have been designed to give reliable,
long-life, trouble-free service.
Four models are available:
•
CLIP-1: Wide Angle
•
CLIP-2: Pet Alley

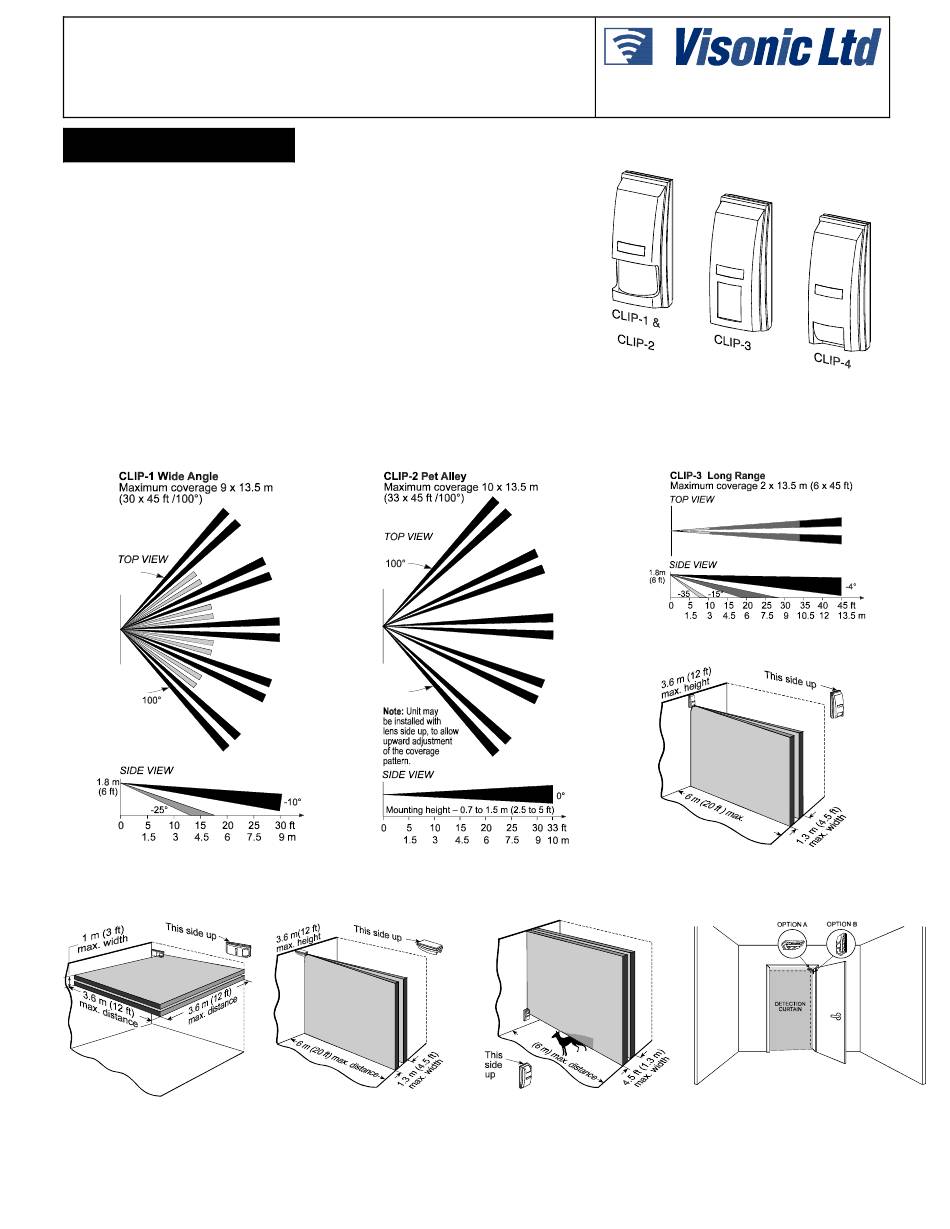

There is a difference in shape between the four models (Figure 1). Detailed
specifications of the lenses employed in each model are given below. Detection
patterns of the CLIP-1, 2 and 3 are given in Figures 2, 3, and 4, respectively
Mounting alternatives and coverage patterns for the CLIP-4 solid curtain model are
shown in Figures 5 through 9.
Figure 2. The CLIP-1 Coverage Pattern
Figure 6. CLIP-4:
Ceiling-Mount Curtain
DE1161
•
CLIP-3: Long Range
•
CLIP-4: Curtain
Figure 3. The CLIP-2 Coverage Pattern
Figure 7. CLIP-4: Overhead
Curtain
Installation Instructions

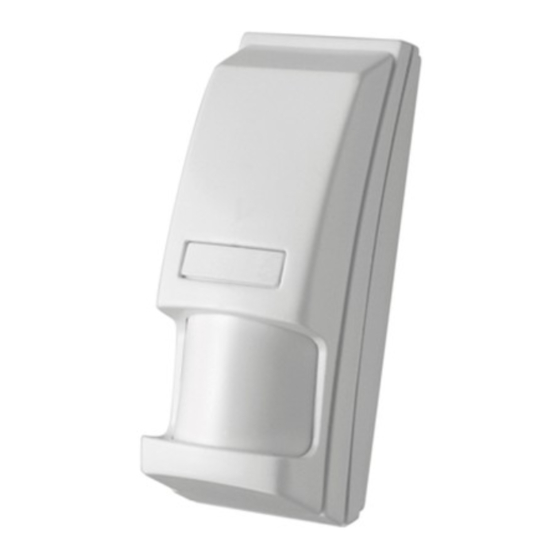

Figure 1. The CLIP Models
Figure 4. The CLIP-3 Coverage Pattern
Figure 5. CLIP-4: Wall-Mount Curtain
Figure 8. CLIP-4: Curtain with
Pet Alley
Figure 9. CLIP-4: Mounting on
Internal Doorframe for Passage
Detection
1
