Split Rack-Recessed Cooling System

Operation Care Installation Manual

Read and save these instructions

Vinotemp International Corp

732 South Racetrack Road, Henderson, NV 89015

Tel: (800) 777-VINO Fax: (310) 886-3310 Email: info@vinotemp.com

WM-2520SSV WM-2520SSV-LA

WM-4520SSV WM-4520SSV-LA

WM-6520SSV WM-6520SSV-LA

www.vinotemp.com

Table of Contents

Need help?

Do you have a question about the Wine-Mate WM-2520SSV-LA and is the answer not in the manual?

Questions and answers

Summary of Contents for Vinotemp Wine-Mate WM-2520SSV-LA

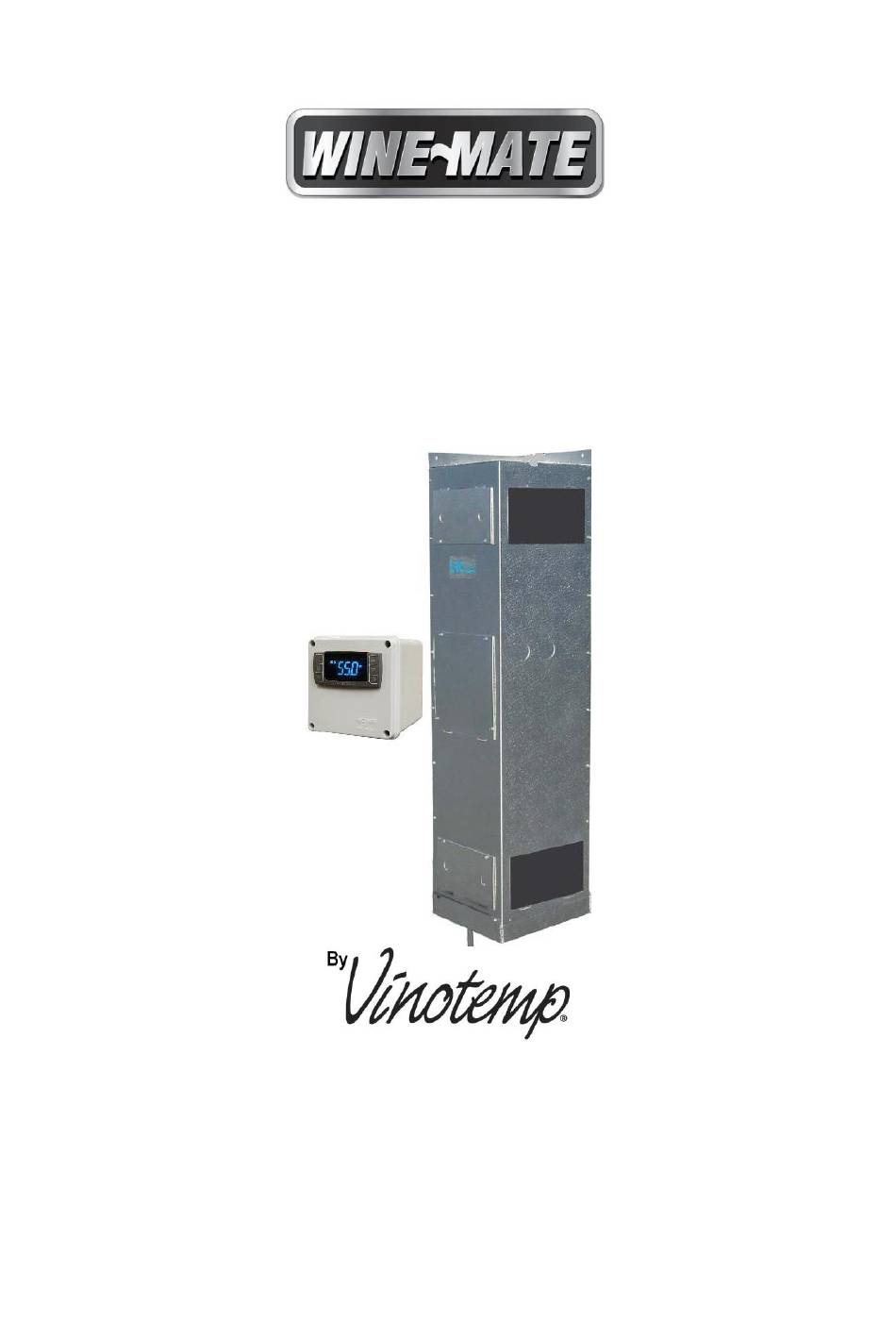

Page 1 Split Rack-Recessed Cooling System Operation Care Installation Manual WM-2520SSV WM-2520SSV-LA WM-4520SSV WM-4520SSV-LA WM-6520SSV WM-6520SSV-LA www.vinotemp.com Read and save these instructions Vinotemp International Corp 732 South Racetrack Road, Henderson, NV 89015 Tel: (800) 777-VINO Fax: (310) 886-3310 Email: info@vinotemp.com...
Page 2 Important Safety Information WARNING To avoid the risk of electrical shock, property damage, personal injury, or death: • The power cord must be plugged into a 3-prong grounding type wall receptacle, grounded in accordance with the National Electrical Code, ANSI/NFPA 70 – latest edition and local codes and ordinances. •...
Page 3: Table Of Contents
Table of Contents Cellar Construction Guide ----------------------------------------- 3 Features & Specifications Temperature & Humidity Care Guide- User’ Troubleshooting Installer’s Instructions- Electrical Wirings -- Warranty --- --- -- - -- -- --- -- -- --- -29...
Page 4: Cellar Construction Guide
Cellar Construction Guide This is only a guide and shall be considered as the minimum requirements. All interior walls, ceilings and floors shall have a vapor barrier and a minimum of R13 insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum of R19 insulation.
Page 5: Features & Specifications
Features and Specifications • WINE~MATE split rack-recessed cooling systems WM-2520~6520SSV and WM-2520~6520SSV-LA are designed to provide a cold environment between 50~65 °F with a humidity range within 50~70% RH for a properly insulated wine cellar. • These temperature and humidity ranges are optimized for long term storage of wine like that in natural caves.
Page 6 If the condensing unit will operate below 50°F, install a low CAUTION ambient condition kit. NOTE The cooling capacity is determined under 55°F cellar temperature, 75°F cellar ambient temperature and 90°F condensing unit ambient temperature, with R13 interior and R19 exterior insulations. Higher ambient temperatures or lower insulations will cause reducing capacity and the cellar temperature may not be maintained at 55°F.
Page 7: Temperature & Humidity
Temperature and Humidity 1. The controller Fig. 2 TEMPERATURE CONTROLLER 1) Keys SET: To display set-point; in programming mode it selects a parameter or confirms an operation. : To start a manual defrost. : To see the maximum stored temperature; in programming mode it browses the parameter codes or increases the displayed value.
Page 8 4) Alarm Signals The alarm codes are described as follows. MESSAGE CAUSE FUNCTION Temperature probe Compressor switching to Con and faulty High temperature Probe temperature ALU higher than alarm setting temperature; Outputs unchanged Low temperature Probe temperature ALL lower than alarm setting temperature;...
Page 9 5. Manual Defrost Press and hold the defrost key until defrost starts. The defrost indicator will be 6. Parameter Programming keys until the “°C” or “°F” LED starts flashing, 1) Press and hold the SET + then release the keys. 2) Press and hold again the SET + keys until the Pr2 label is displayed, then release the keys.
Page 10 7. How to calibrate the air probe If the actual cellar temperature differs from the setting temperature, set parameter ot = actual cellar temperature minus set-point. 8. How to adjust defrost settings In case there is excessive frost, the parameters FnC = C-y, idF = 4 and MdF = 20 can be used to avoid frost.
Page 11: Care Guide
Care Guide In general, always unplug system or disconnect power while doing care. 1. Condenser Coil Cleaning • Clean the condenser coil regularly. Coil may need to be cleaned at least every 6 months. • Use a vacuum cleaner with an extended attachment to clean the coil when it is dusty or dirty.
Page 12: User' Troubleshooting - -11
User’s Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive. Complaint Possible Causes Response 1. Unit not running a. Power cord not plugged a. Check power cord b.
Page 13 minimum 1 foot clearance for the ambient air intake side e. Malfunctioning fans e. Check for both evaporator and condenser fans Evaporator or condenser Check for air restrictions, air airflow short- circulation, grille directions g. Clean condenser g. Dirty Condenser h.
Page 14 c. Not stopping due to air leak, high c. Check for seal, door opening, ambient ambient temperature or low temperature and temperature setting d. Check for controller and probe temperature setting d. Defective controller or probe e. Change defrost settings e.
Page 15: Installer's Instructions
WINE~MATE split system is shipped as components and is ready for use only after a certified refrigeration technician has properly installed the system. Proper installation is critical. Vinotemp can only warrant the quality of the components. The installation and proper operation of the system must be warranted by the installer.
Page 16 Parts not included: Liquid line copper tubing Suction line copper tubing Insulated ducts CAUTION Liquid and suction line locations may differ from that what is shown below, please check on the units for proper installations. To prepare rough-in, leave minimum 4” clearances for electrical NOTE wiring and refrigeration piping.
Page 17 Fig. 3 Temperature Controller (4.5”L X 4.5”W X 3.75H) Fig. 4 WM-252~652SFCV Evaporator Unit -16-...
Page 18 Fig. 5 WM-252~452SCUR Condensing Unit Fig. 6 WM-652SCUR Condensing Unit -17-...
Page 19 Fig. 7 WM-Liquid Filter Fig. 8 WM-Liquid Indicator 2. Temperature Controller and Air Probe Location 1) The temperature controller can be mounted either inside or outside the wine cellar, but the air probe must be located inside the wine cellar or the return duct.
Page 20 1) Place the condensing units WM-252~652SCUR in a properly ventilated location. Otherwise, heat exhausted by the condensing unit will build up and the cooling system will not operate properly. 2) Condensing unit shall be elevated to avoid possible flooding and shaded from direct sun.
Page 21 Connect all electrical components using the wiring diagrams in accordance with all state and local codes. 7. Evacuating, Charging and Starting the System 1-Manifold High or Low Pressure Hose; 2-Receiver Discharge or Compressor Suction Port; 3-Liquid or Suction Line; 4-Pressure Control; BACK POSITION FRONT POSITION MIDDLE POSITION...
Page 22 1) Turn both discharge and suction valves in the middle positions. 2) Connect the manifold high or low pressure hose to the discharge or suction valve and connect it to a vacuum pump. 3) Open the manifold high and low pressure valves to evacuate the system. 4) Close the manifold high and low pressure valves and switch it to a charging scale.
Page 23 A. P70 Single/Dual Control B. PS2 Dual Control Fig. 12 Adjustable Pressure Control III. Low ambient condition kit (if applicable) The crankcase heater The crankcase heater is installed at the bottom of the compressor and shall be turned on all the time. The heater is self-regulated. The condenser fan control The condenser fan control is installed at the high side.
Page 24 Fig. 13 Condenser Fan Cycle Control 2) A fan speed control may be used to adjust the air flow to achieve the specified CFM. The fan will run from the minimum speed to full speed with the control knob at the lowest and highest speed position. To adjust the minimum speed, turn control knob to the lowest speed position, then rotate the setting (located on the side or front) clockwise to decrease the minimum speed or counter-clockwise to increase the minimum speed.
Page 25 8) If the superheat is high, check the subcooling first to see if the refrigerant charge is sufficient. If the charge is not sufficient, add more refrigerant (Liquid must always be charged into the hide side when the compressor runs). If the charge is good, then increase the evaporator suction pressure by turning the hex nut (5/16”) clockwise.
Page 26 pressure high evaporator load High superheat 7) Low suction pressure head 7) Undercharge pressure High superheat and low subcooling 8) Low suction pressure and low to normal head 8) Liquid line restricted after pressure receiver, solenoid valve High superheat and high subcooling restricted 9) Low suction...
Page 27: Electrical Wirings
Electrical Wiring Diagrams Hidden lines are the field wirings CAUTION Use minimum 14 gauge wires for power lines. If equipped with low ambient condition kit, use low ambient temperature wiring diagrams. A safety switch is always recommended for the condensing unit. Fig.
Page 28 Fig. 17 WM-2520~4520SSV-LA Electrical Wiring Diagram Fig. 18 WM-6520SSV Electrical Wiring Diagram -27-...
Page 29 Fig. 19 WM-6520SSV-LA Electrical Wiring Diagram -28-...
Page 30: Warranty
If the product is defective due to workmanship or materials, is removed within twelve months of the initial sale and is returned to VINOTEMP, in the original shipping carton, shipping prepaid, VINOTEMP will at its option, repair or replace the product free of charge.
Page 31 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
