Vinotemp WM-2500SSH Installation Instruction

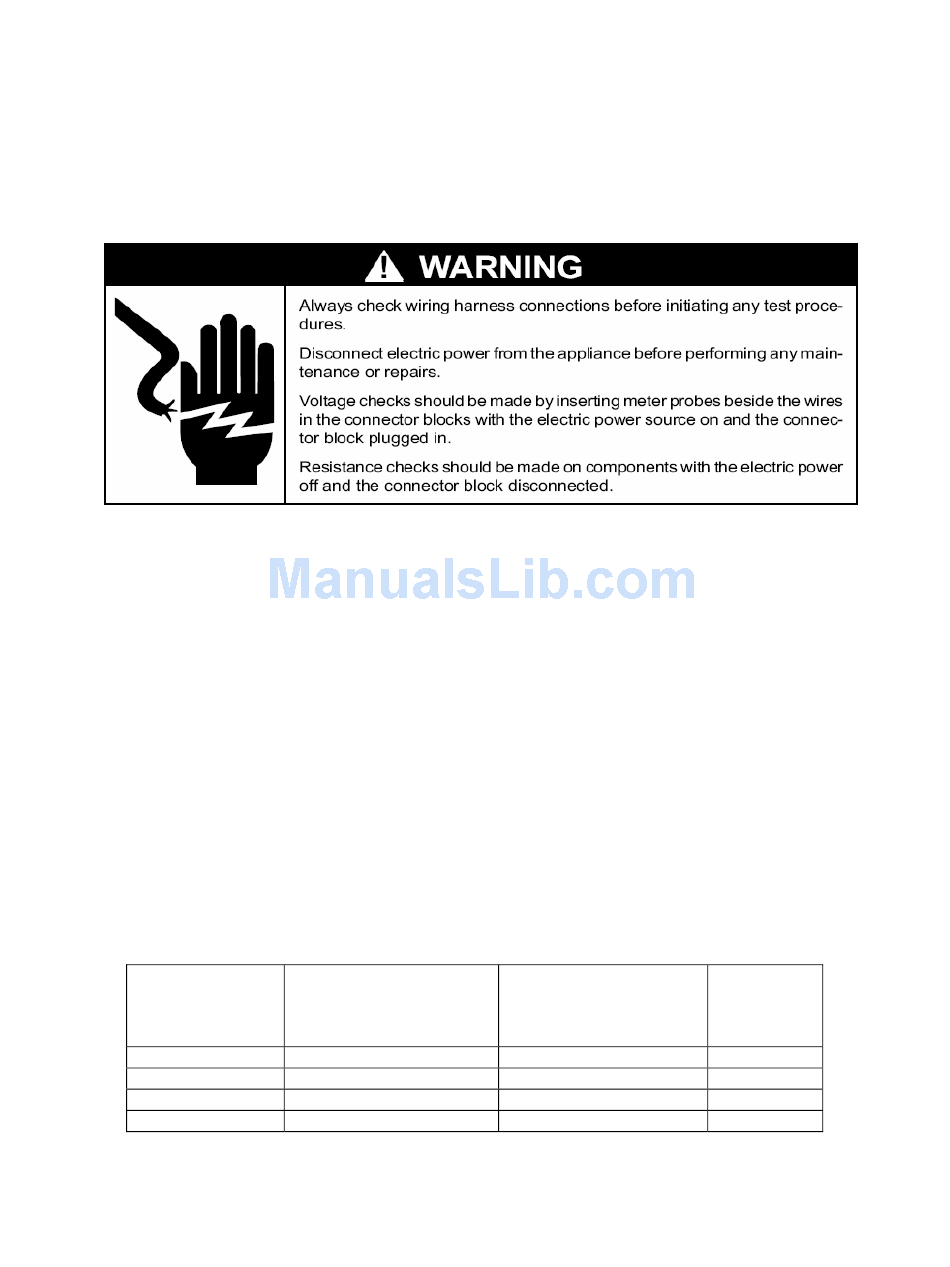

Federal law requires that WINEMATE split cooling systems be
installed by an EPA certified refrigeration technician.

1. Location

• Place the condensing unit in a properly ventilated location. If it is not, heat
exhausted by the condensing unit will build up and the cooling system will
not operate properly.
• Leave minimum 3 feet clearance between the exhaust side and the wall.
• Leave minimum 1 foot clearance for the fresh air supply side.
• Condensing unit should be elevated to avoid possible flooding and shaded
from direct sun. It should not be exposed to temperatures higher than 125
°
F or lower than 20
• Air flow from the unit cooler should be unobstructed for at least 1 foot.

2. Refrigeration Installation

Model
VINO2500SSH
VINO4500SSH
VINO6500SSH
VINO8500SSH
WINEMATE split system is shipped as components and is ready for use only
after a certified refrigeration technician has properly installed and tested the
VINO2500SSH, 4500SSH
VINO6500SSH, 8500SSH
Installation Instruction
°
F.
Liquid Line Diameter
(inch), recommended
3/8
3/8
3/8
3/8
- 1 -
Suction Line Diameter
(inch), recommended
3/8
3/8
5/8
5/8
Pipe (inch)
8
8
10
10
