© 2011, Moog Videolarm, Inc. All Rights Reserved

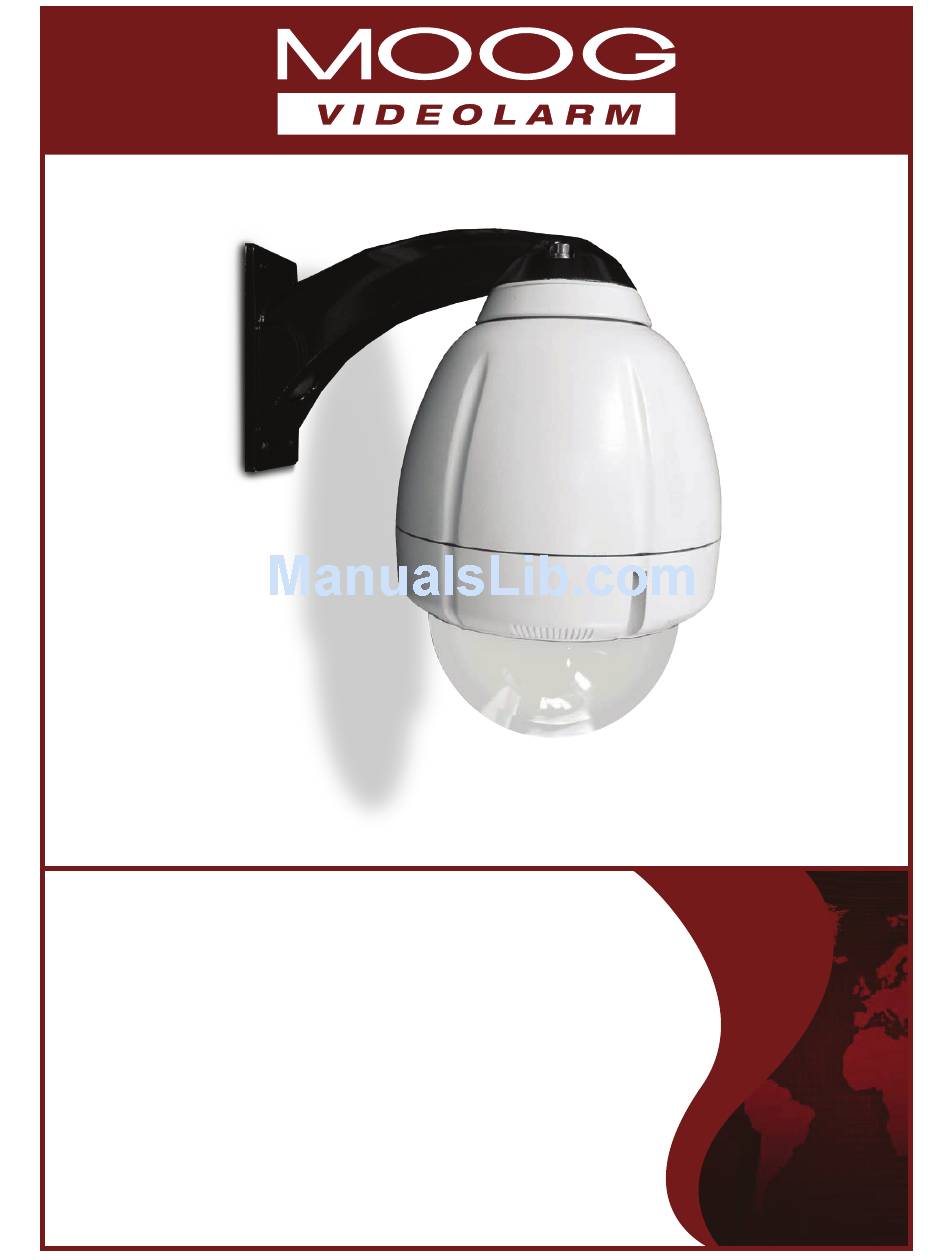

R H W 7 C N - 3
SView™ Vandal-Resistant Rugged (Outdoor Dome Housing)
Installation and Operation Instructions for the following models:
RHW7CN-3
7" Vandal-Resistant Outdoor dome housing with wall mount, rugged cast
aluminum top and polycarbonate clear dome, with 24Vac input, heater/blower,
with a SView network pan/tilt.
RHP7CN-3
7" Vandal-Resistant Outdoor dome housing with pendent style, rugged cast
aluminum top and polycarbonate clear dome, with 24Vac input, heater/blower,
with a SView network pan/tilt.
RHW7CS-3
7" Vandal-Resistant Outdoor dome housing with wall mount, rugged cast
aluminum top and polycarbonate clear dome, with 24Vac input,
heater/blower, with a SView analog pan/tilt.
RHP7CS-3
7" Vandal-Resistant Outdoor dome housing with pendent style, rugged
cast aluminum top and polycarbonate clear dome, with 24Vac input,
heater/blower, with a SView analog pan/tilt.
Before attempting to connect or operate this product, please read these instructions completely.
To be used with the 81-IN5409 Instruction Manual.
www.videolarm.com
81-IN5378
01-23-2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHW7CN-3 SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Moog Videolarm RHW7CN-3 SERIES

  • Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved R H W 7 C N - 3 SView™ Vandal-Resistant Rugged (Outdoor Dome Housing) www.videolarm.com Installation and Operation Instructions for the following models: RHW7CN-3 7” Vandal-Resistant Outdoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear dome, with 24Vac input, heater/blower, with a SView network pan/tilt. RHP7CN-3 7” Vandal-Resistant Outdoor dome housing with pendent style, rugged cast aluminum top and polycarbonate clear dome, with 24Vac input, heater/blower, with a SView network pan/tilt. RHW7CS-3 7” Vandal-Resistant Outdoor dome housing with wall mount, rugged cast...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
  • Page 3: Terms And Conditions

    If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
  • Page 4: Electrical Specifications

    Contents of Box Electrical Specifications RHW7CN-3 RHW7CS-3 RHP7CN-3 RHP7CS-3 Power 24VAC Class 2 Only 24 VAC 80 Watts Accessories: Heater: 50 Watts, Blower: 2 Watt Camera Power: (See Camera Specifications): 28 Watts Max Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 24 VAC 80 Vatios...
  • Page 5 WALL MOUNTING 4”-5” Trim incoming control & power wires to 4”- 5”, Bracket is designed for 45° conduit tting (If using the for either wall or pendent bracket. conduit). Run wire into bracket, secure to wall. • El soporte se diseña para la guarnición del conducto 45° (si usa el •...
  • Page 6 WALL MOUNTING Important Gasket Must be in place 28 Watts 52 Watts COAX (coax wire not supplied) Wiring the dome can be completed by Align large arrows. referring to the diagram. • Atar con alambre la bóveda puede ser terminada • Alinee las flechas grandes. refiriendo al diagrama.
  • Page 7 FOR PENDENT/ WALL MOUNTING 4”-5” Trim incoming control and power wires to 4-5” for Secure lanyard to lanyard clip. either wall or pendent bracket. • Ajuste los alambres entrantes del control y de la energía a • Asegure el acollador al clip del acollador. 4-5”...
  • Page 8 Important Gasket Must be in place Align large arrows. To lock, turn clockwise. • Alinee las flechas grandes. • Para trabarse, dar vuelta a la derecha. • Alignez les grandes flèches. • Pour fermer à clef, tourner dans le sens des aiguilles d'une montre.
  • Page 9 RJ45 24VAC POWER Camera Max 28 Watts Camera Orange Heater/Blower Yellow 52 Watts Heater/Blower Green (Outdoor Only) Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray Common White Make the appropriate male and female connections. • Haga las conexiones masculinas y femeninas apropiadas. •...
  • Page 10: Captive Screw

      Remove Pan/Tilt from shipping carton. Align the arrows on the outside of the dome Install in base bracket in housing. and lock. • Alinee las flechas en el exterior de la bóveda y • Quite Pan/Tilt del cartón del envío. Instale en soporte trábese.
  • Page 11 PB24 Addendum Additional wires are provided to run power to PB24. Use with connector supplied. Run RJ45 connector through PB24, wall mount, and connect lead from housing. • Los alambres adicionales se proporcionan a la energía funcionada con a PB24. El uso con el conectador proveyó. Funcione con el conectador RJ45 con PB24, emparede el montaje, y conecte el plomo de la cubierta.
  • Page 12: Replacement Parts List

    Replacement Parts List RHW75 IRHW75 PART NUMBER DESCRIPTION RC7C CLEAR REPLACEMENT CAPSULE 1A RC7T TINTED REPLACEMENT CAPSULE RPRH752 LOWER TRIM RING RPRH7503 DOME CLAMPING RING RPNET02 NETWORK HGS POWER SUPPLY RPFD072 24V HEATER 5A RPFD072/12 12V HEATER (12VDC MODELS ONLY) RPFD080 BLOWER RP40PCMD01...
  • Page 13: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
