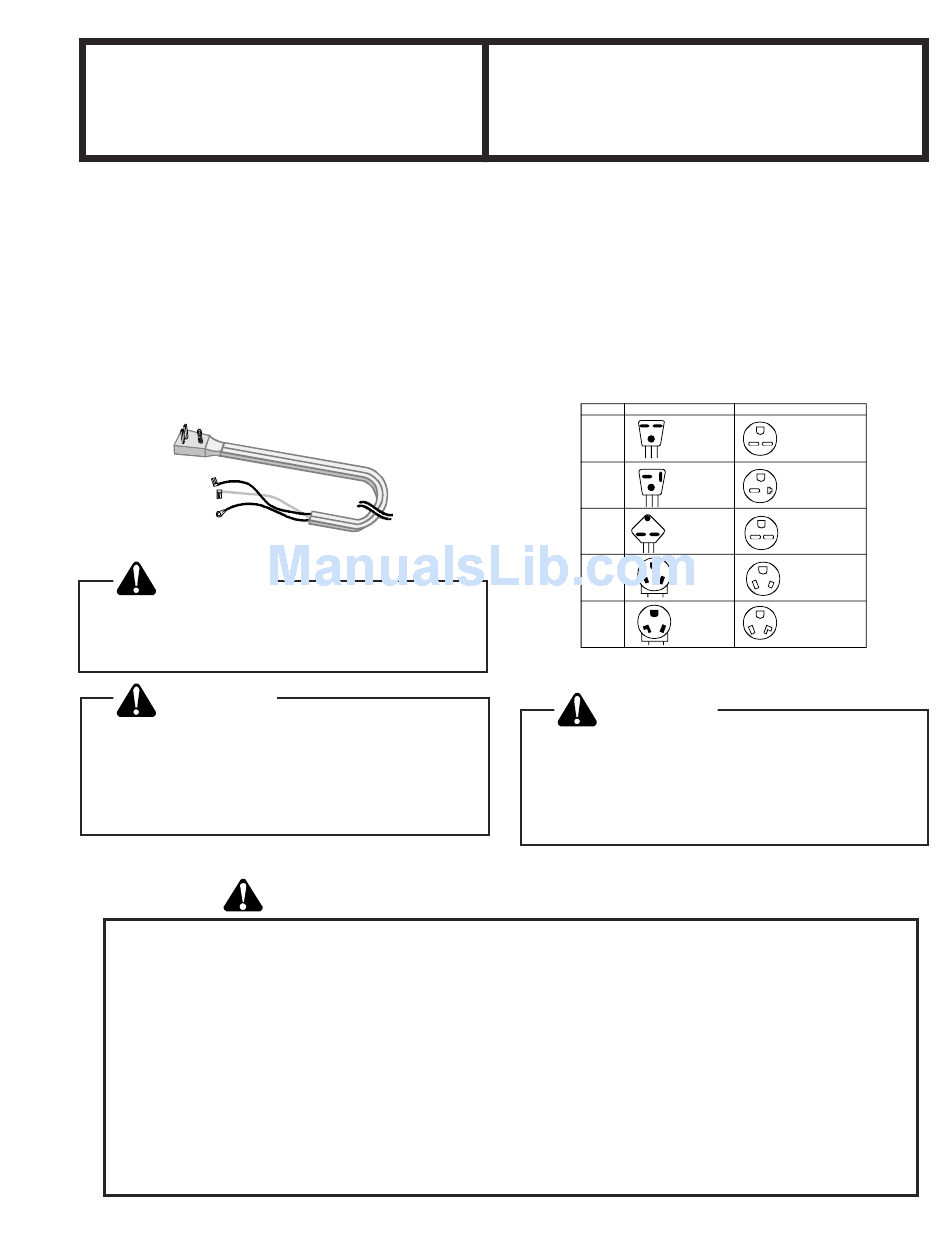

Amana F- Revision Installation Instructions Manual

Ptac f-revision electric heater kit

Advertisement

Quick Links

PTAC
F- Revision
Electric Heater Kit
NOTE: The PTAC F-Revision Electric Heater Kit is specifically for units manufactured since May, 1998. This kit cannot be
used on units manufactured before May, 1998. Refer to the unit serial data for date of manufacture.
Description
The F-revision Heater Kits are for PTAC and PTHP "A" Series with Engineering Revision B and C. They provide
supplemental electric heat to heaterless models of packaged terminal air conditioners and heat pumps and are available
for field installation.
Unit power cords are factory-installed for heater kits up to 15 amps on 230/208 volt units and 20 amps on 265 volt units.
When a 20 (230/208 volt units), 25, or 30 amp heater kit is installed, the factory-installed power cord must be replaced with
the corresponding power cord supplied with the heater kit.
CAUTION
Do not install 5 Kw heater kits HK350F or
HK450F into 7,000 or 9,000 BTU air
conditioners or heat pumps.
WARNING
To avoid death, personal injury or property
damage due to electrical shock, disconnect
electrical power source before installing
power cord. The unit "OFF" switch does
not disconnect all power to the unit.
ATTENTION INSTALLING PERSONNEL
As a professional installer you have an obligation to
know the product better than the customer. This
includes all safety precautions and related items.
Prior to actual installation, thoroughly familiarize
yourself with this Instruction Manual. Pay special
attention to all safety warnings. Often during
installation or repair it is possible to place yourself
in a position which is more hazardous than when
the unit is in operation.
September 2001(2)
Rev. 2
RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION.

Installation Instructions

Voltage
230/208
230/208
230/208
265
265
WARNING
To avoid death, personal injury or property
damage due to electrical shock, the installer
must ensure the unit is properly electrically
polarized and grounded. See specific
instruction.
Remember, it is your responsibility to install the
product safely and to know it well enough to be able
to instruct a customer in its safe use.
Safety is a matter of common sense...a matter of
thinking before acting. Most dealers have a list of
specific good safety practices...follow them.
The precautions listed in this Installation Manual
are intended as supplemental to existing practices.
However, if there is a direct conflict between existing
practices and the content of this manual, the
precautions listed here take precedence.
Made in USA
Unit Plug
Wall or Subbase Receptacle
L1
L2
G
NEMA 6-15R AMP
15 AMP
G
L1
L2
L1
L2
G
NEMA 6-20R AMP
20 AMP
L1
L2
G
G
G
30 AMP
NEMA 6-30R AMP
L1
L2
L2
L1
G
G
20 AMP
NEMA 7-20R AMP
W
W
L2
L1
L1
L2
G
G
30 AMP
NEMA 7-30R AMP
W
W
L2
L1
L1
L2
11114004

Advertisement

loading

Summary of Contents for Amana F- Revision

  • Page 1: Installation Instructions

    PTAC F- Revision Installation Instructions Electric Heater Kit NOTE: The PTAC F-Revision Electric Heater Kit is specifically for units manufactured since May, 1998. This kit cannot be used on units manufactured before May, 1998. Refer to the unit serial data for date of manufacture.
  • Page 2: Unit Preparation

    Power Cord Installation Unit Preparation (HK335F, HK350F, HK450F) 1. Remove the two screws securing the unit front to the WARNING chassis. (Figure 1). Tilt the bottom of the unit front outward and then up. NOTE: Not all installations will To avoid the possibility of electrical shock use these screws.
  • Page 3: Electric Heater Installation

    3. Push about 20 inches of the power cord shipped in the Electric Heater Installation kit through the incoming power opening. WARNING 4. Secure the cord to the partition panel using the power cord clamp and #8 screw shipped in the kit (Figure 2). To avoid death, personal injury or property Ribbed Wire damage due to electrical shock, disconnect...
  • Page 4 FOR SINGLE STAGE HEATERS FOLLOW STEP 6 THEN SKIP TO STEP 16. #8 Screw #8 Screw 6. Connect the two brown wires to each of the 1/4-inch terminals on the control board marked HEATER (Figure 9). ELECTRIC HEATER HEATCRAFT Figure 6 Heater Suppliers 4.
  • Page 5 9. On the LINE 1 terminal of the control board: 15. Connect wire YL36 from the heater 36 terminal to the heater relay 4 terminal. a. Disconnect the RD33 wire. b. Connect VT19 from the heater relay A terminal. BK16 c.
  • Page 6 Electric Electrical Heater kW Heater Total Total Minimum Overcurrent Heater 230/208 V BTU/HR Watts Amps Circuit Protection** Ampacity Size (kW) Ord. No. Stage 1 Stage 2 230V 208V 230V 208V 230V 208V HK315F 1.5/1.2 5100 4100 1580 1280 HK325F 2.5/2.0 8500 6800 2580...
