Speco SK-V251(D)/MP22AI Manual

VANDAL-PROOF & WATERPROOF
WDR IR D&N 3-AXIS DOME CAMERA
SK-V251(D)/MP22AI
MANUAL

◐ PRECAUTION

1. You can install the camera indoors or outdoors.
2. Choose an ideal location for the camera, since a camera unit must
be protected against vibration.
3. Be careful not to scratch the camera unit, especially lens or dome cover.
4. Use the camera within the temperature(-10℃ ~ +50℃).
5. Avoid any direct sun light toward the lens.
6. Use the AC adaptor 12V DC, 300mA regulated.
Dual voltage product can use 24V AC, 300A adaptor.(option)
If the product is to be put out of operation definitively,
take it to a local recycling plant for a disposal which
is not harmful to the environment.

◐ FEATURES

1. IP67(Waterproof)
2. Durable MATERIAL : Body - Aluminum, Dome - Polycarbonate
3. This camera is incredibly flexible to install with its 3-axis camera con-
struction, which makes the camera ceiling, wall or slope mountable.
4. Mechanical filter exchange(True Day & Night), built-in WDR function.
5. Adopted DNR technology, It reduces noise efficiently in low light
condition.
6. SupremeResolution.(690 TV-Line)
7. Multi-language full OSD support.

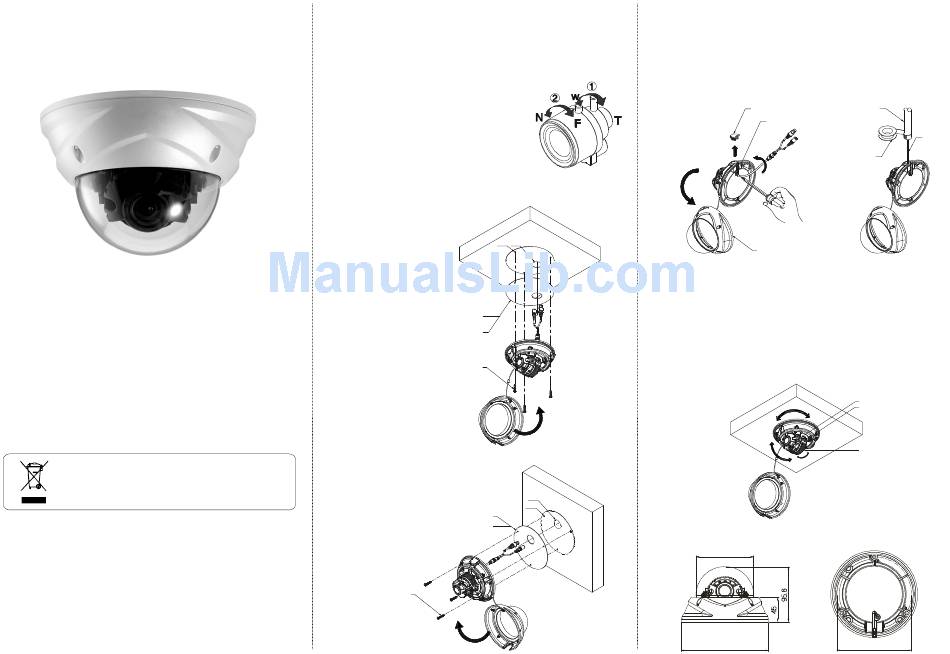

◐ HOW TO INSTALL

1. Camera installation

(1) Fix the camera set with the supplied screws on ceiling or wall mount.
If you don't use supplied screws, the camera may fall off.
(2) Please refer to '3. Camera angle adjustment' regarding adjust
camera angle.
(3) Lens adjustment(Vari-focal Lens only)
① By turning the "Tele-Wide" knob,
you can access a range of focal
lengths within specified limits.
② Since then, by turning the "Near-Far"
knob, you can set the focus toward
the wanted object.
(4) Re-assemble the camera.
<Ceiling mount>
Ø3.5 Ø30
MOUNT HOLE PLATE(STICKER)
Put a sticker on the ceiling and make holes
according to the spots marked on a sticker.
SCREW Tp1 4x25 3EA
<Wall mount>
MOUNT HOLE PLATE(STICKER)
Put a sticker on the wall and make holes
according to the spots marked on a sti c ker.
SCREW Tp1 4x25 3EA

2. Pipe application

(1) Remove the screw for fixing a cable on the bottom of the base.
(2) Open the DOME COVER.
(3) Remove the TAP COVER and place the cables there.
(4) After distributing cables, use the TEPLON tape to wipe the pipe.
(5) Combine the pipe to the base.
<Caution> If you don't wipe TEFLON tape on pipe, it might cause troubles on
water-resistant.
3

. Camera angle adjustment

(1) Pan adjustment
direction to the right or left(-160 ~ 190 )
(2) Tilt adjustment
direction to the up or down(6 ~ 90 )
(3) Roll adjustment
(-178 ~ 178 ) ˚
<Caution> If you try to adjust the camera out of limited angle, it might cause
Ø30
Ø3.5

◐ DIMENSION

PIPE
TAP COVER
CABLE FIXING SCREW
TEFLON TAPE
DOME COVER
:
: Grasp the disk of camera and then adjust
˚ ˚
: Grasp the camera holder and then adjust
˚ ˚
: Grasp the camera holder and then rotate
˚
troubles and damage to camera.
DISK
CAMERA
MODULE ASS'Y
R
L
U
CAMERA HOLDER
ROTA TION
D
Ø100
Ø150.5 Ø129
CABLE
