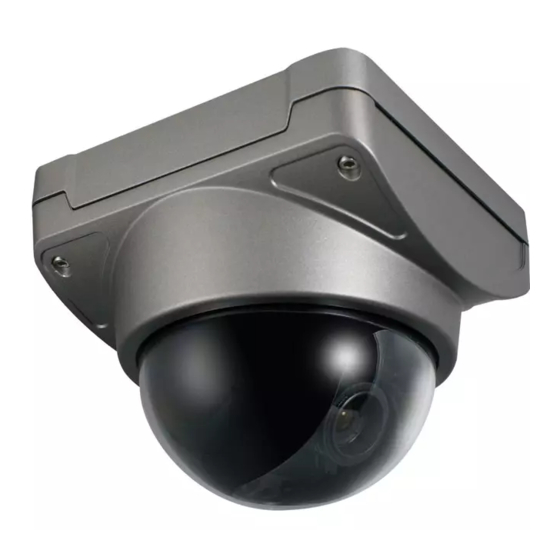

Speco SIPT5 Instruction Manual
  1. Manuals
  2. Brands
  3. Speco Manuals
  4. Security Camera
  5. SIPT5
  6. Instruction manual

Speco SIPT5 Instruction Manual

Internet protocol (sip) series weatherproof bullet cameras, sip tamperproof weatherproof dome cameras, sip traditional camera, sip weathrproof speed dome camera, sip megapixel cameras
Hide thumbs Also See for SIPT5:
Table of Contents

Advertisement

Quick Links

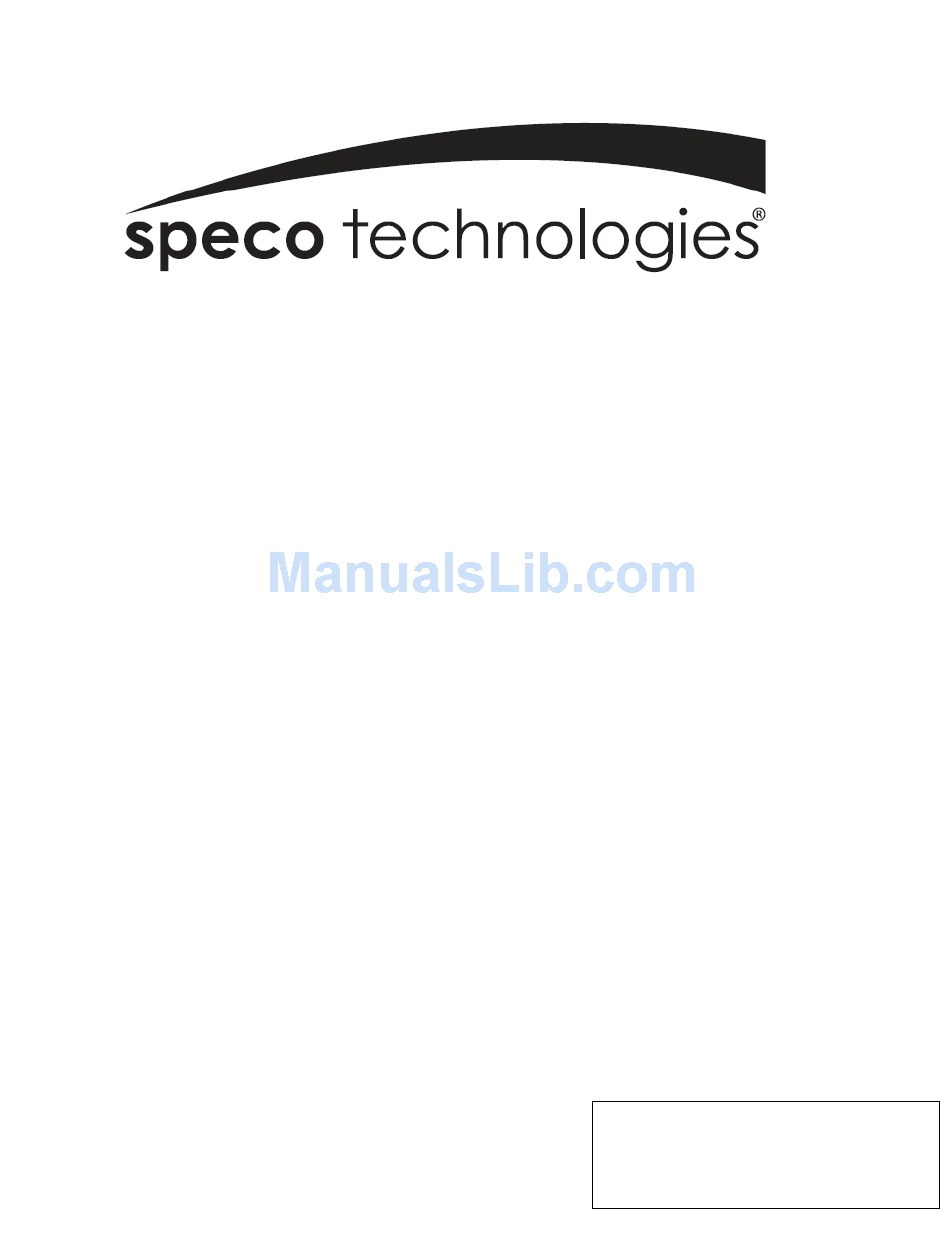

Speco Internet Protocol (SIP) Series
Camera Instruction Manual
(Version 1.0.0)
SIP Weatherproof Bullet Cameras
SIPB1 & SIPB2
SIP Tamperproof Weatherproof Dome Cameras
SIPD3 & SIPD4
SIP Traditional Camera
SIPT5
SIP Weathrproof Speed Dome Camera
SIPSD10X
SIP Megapixel Cameras
SIPMPB & SIPMPD & SIPMPT
i
Speco Technologies
200 New Hwy, Amityville, NY 11701
800-645-5516
www.specotech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIPT5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speco SIPT5

Summary of Contents for Speco SIPT5

  • Page 1 (Version 1.0.0) SIP Weatherproof Bullet Cameras SIPB1 & SIPB2 SIP Tamperproof Weatherproof Dome Cameras SIPD3 & SIPD4 SIP Traditional Camera SIPT5 SIP Weathrproof Speed Dome Camera SIPSD10X SIP Megapixel Cameras SIPMPB & SIPMPD & SIPMPT Speco Technologies 200 New Hwy, Amityville, NY 11701 800-645-5516 www.specotech.com...

  • Page 2: Table Of Contents

    Table of Contents FEATURES... 1-1 1.1 Package ... 1-1 1.2 Dimension and Connector Description... 1-2 1.2.1 Dimensions ...1-2 1.2.2 Connector Description ...1-9 INSTALLATION ... 2-11 2.1 Minimum System Requirements ... 2-11 2.2 Preparation before setup ... 2-12 2.2.1 Setup your PC network...2-12 Configuring the IP device...
  • Page 3 2.4.7 PROTOCOL (SIPSD10X)...2-89 2.4.8 BAUD RATE SETTING (SIPSD10X)...2-89 APPENDIX ... 3-90 3.1 Specification ... 3-90 3.1.1 SIP Camera Series ...3-90 3.1.2 SIPMP Camera Series ...3-97...

  • Page 5: Features

    FEATURES 1.1 Package SIP/SIPMP Camera Software CD Quick Install Guide Cross LAN Cable Accessory Pack Power Lead Cable Package of Products is composed of the main body of the camera, Software CD (NVR Program, Product Manual, NVR Manual), Quick Install Guide, Cross LAN Cable, Accessory Pack, Power Lead Cable.

  • Page 6: Dimension And Connector Description

    Dimension and Connector Description 1.2.1 Dimensions SIPB1 & SIPB2 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧...
  • Page 7 SIPD3 ① ② ③ ④ ⑤ ⑥ ⑧ ⑦...
  • Page 8 SIPD4 ① ② ③ ④ ⑤ ⑦ ⑧ ⑥...
  • Page 9 SIPT5 ⑥ ⑧ ④ ③ ② ⑨ ① ⑤...
  • Page 10 SIPSD10X ② ③ ⑤ ④ ① ⑩ ⑥...
  • Page 11 SIPMPB ① ② ③ ⑤ ⑥ ⑪...
  • Page 12 SIPMPD ① ② ③ ⑤ ⑥...

  • Page 13: Connector Description

    SIPMPT 1.2.2 Connector Description 12 Volts DC Power Input ① Audio Output ② Audio Input : The SIP Camera supports one audio input and output ③ ④ Video Output : The SIP Camera supports one analog video output with BNC connector.(** Not available on the megapixel series) Ethernet Port : Standard RJ45 connector.
  • Page 14 Step 1 : Switch off SIP Camera by disconnecting the power cable. Step 2 : Using a suitable pointed object, press and continue to hold the Reset Button. While continuing to hold the reset button, reconnect the power cable. Step 3 : Keep holding the reset button for 6 seconds, release the reset button. The unit will start up with factory default settings.

  • Page 15: Installation

    INSTALLATION 2.1 Minimum System Requirements Pentinum 4 2.4GHz and above 40 GB or above Hard Disk Memory 256 MB or above Windows XP with SP2 or above Operating System SVGA or XGA with 1024x768 resolution Video Resolution 2-11...

  • Page 16: Preparation Before Setup

    2.2 Preparation before setup To configure your IP device, you have to use Internet Explorer to log in. Before that, your PC’s network settings and the IP device’s IP address must be set up. Make sure all the connections are connected correctly, and then follow the procedures below.
  • Page 17 The procedure below is the setup procedure of a PC using Windows XP as its OS. When running an OS other than Windows XP, please refer to the manual included with the OS. STEP 1 Start up your PC. STEP 2 Click the [Start] and select the "Control Panel"...
  • Page 18 STEP 3 Double-click the "Network and Internet connections" icon. STEP 4 Double-click the "Network connections" icon 2-14...
  • Page 19 STEP 5 Click “Local Area Connections”, and then click “Change settings of this connection” in the network Task menu. STEP 6 Click “Internet Protocol (TCP/IP)”, and then click the [Properties] button. 2-15...
  • Page 20 STEP 7 Click the “Use the following IP address” radio button and enter the IP address and the subnet mask. STEP 8 Click the [OK] button and the window dialog box closes. 2-16 Please set the settings as below. IP address: 192.168. 0.xxx Subnet mask: 255.255.255.

  • Page 21: Configuring The Ip Device

    2.3 Configuring the IP device This section describes how to configure the IP device. The product administrator has unlimited access to all setup windows and normal users can only watch the live image. The IP device is configured under a standard browser (Microsoft Internet Explorer 6.0 or above).
  • Page 22 Once successfully login, the “Video Display page” will be displayed as below. 2-18...

  • Page 23: Video Display

    2.3.1 Video Display This section tells you how to view live images via Internet Explorer. STEP 1: Click the [Video Display] on the “Main Setup page”. The “Video Display page” is displayed as below. STEP 2: Check the [MPEG4/MJPEG] to select the Compression type.
  • Page 24 STEP 6: Click the function by DO1. STEP 7: Click the function by DO2. STEP 8: Click the Setup page”. NOTE: If the streaming is disabled, you cannot see the live images here. NOTE: Be sure to set the Network Connections Type to Auto Negotiation to respective apparatus connected to this IP device via network.

  • Page 25: Host Setting

    2.3.2 Host Setting This section tells you how to setup IP device’s host settings and LAN settings. STEP 1: Click the [Host Setting] on the “Main Setup page”. The “Host setting page” is displayed as below. STEP 2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator.
  • Page 26 ■ Network link speed & duplex Parameters This item lets you select the network transmission speed of WAN port. You can select from WAN port ■ Port Mapping Parameters Select whether to add the TOS tag onto the streaming data. TOS (type of Streaming data with a higher priority TOS tag will be transmitted service)

  • Page 27: Wan Setting

    2.3.3 WAN Setting This section tells you how to setup IP device’s WAN, DNS server and DDNS server settings. STEP 1: Click the [WAN Setting] on the “Main Setup page”. The “WAN setting page” is displayed as below STEP 2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator.
  • Page 28 ■ WAN Setting Parameters Click this to enable IP device’s DHCP function. Dynamic IP It will acquire its WAN port IP address from a DHCP server within the same network. (You must have a DHCP server in address order to enable this function.) Click this to manually enter the IP device WAN port IP address.
  • Page 29 STEP 3: Click the settings or click the NOTE: Check with your system administrator, if Client PC and IP device are setting in different VLANs, please connect to WAN port. NOTE: Once finished all settings, be sure to click the [Save Reboot] button, otherwise, some settings won’t take effect.

  • Page 30: Date Setting

    2.3.4 Date Setting This section tells you how to setup IP device’s date and time settings. STEP 1: Click the [Date Setting] on the “Main Setup page”. The “Date setting page” is displayed as below STEP 2: Configure these settings with reference to the table below. If you are still unsure what to set, contact your system administrator.
  • Page 31 number in a month; select Type 2 to specify daylight saving time by date. Start Time : Select the daylight savings start time. End Time : Select the daylight savings end time. STEP 3: Click the settings or click the NOTE: Once finished all settings, be sure to click the [Save Reboot] button, otherwise, some settings won’t take effect.

  • Page 32: Video Setting

    2.3.5 Video Setting This section tells you how to setup IP device’s video and streaming settings. STEP 1: Click the [Video Setting] on the “Main Setup page”. The “Video setting page” is displayed as below ■ Video setting Parameters The camera name is reserved for customer use. Camera name Select the streaming mode.
  • Page 33 RTP B2 Frame Checkbox to enable the B2 frame in RTP streaming Enable Select enable or disable the audio function. Audio Select HIGH or LOW of the audio input sensitivity Input Sensitivity Select the multicast IP. Default settings is 228.5.6.1 Multicast IP Select the multicast TTL.
  • Page 34 Only) STEP 3: Click the [Apply] button of each setting to confirm the settings or click the [Reset] button to re-enter the parameters. 2-30...

  • Page 35: Video Adjustment

    2.3.6 Video Adjustment This section tells you how to adjust the streaming video. STEP 1: Click the [Video Adjust] on the “Main Setup page”. The “Video adjust page” is displayed as below STEP 2: Set the STEP 3: Set the STEP 4: Set the interval time after the motion event is triggered, no motion event will be triggered.
  • Page 36 the motion activity window, you can adjust the motion sensitivity (for more or less activities to be triggered) and the threshold (for how much activity would trigger a motion event. If you are not sure, recommend you to set a. Sensitivity: 80, Threshold: 2~5 (for normal environment) b.

  • Page 37: Camera Setup

    2.3.7 Camera Setup This section tells you how to adjust the camera. STEP 1: Click the [Camera Setup] on the “Main Setup page”. The “Camera Setup page” is displayed as below ■ Camera setting Parameters Checkbox to flip the video. Video Flipping Checkbox to mirror the video.
  • Page 38 R Gain Add or decrease redness to the video when under Manual White Balance mode. (This function is only available in (Manual White balance Manual White balance mode.) mode only) B Gain Add or decrease blueness to the video when under Manual White Balance mode.

  • Page 39: Camera Setup (Ptz Camera Model)

    2.3.8 Camera Setup (PTZ camera model) This section tells you how to adjust the camera. STEP 1: Click the [Camera Setup] on the “Main Setup page”. The “Camera Setup page” is displayed as below ■ Camera setting Parameters Checkbox to flip the video. Video Flipping Checkbox to mirror the video.
  • Page 40 Select exposure mode. Exposure mode When exposure mode is auto, IP camera will adjust its shutter speed according to AGC gain and the Maximum AGC Gain auto shutter speed. Higher AGC gain = brighter images. Select the Iris level. Auto IRIS Level Select the sense up level.

  • Page 41: Ptz (Pt/Tz Camera Only)

    2.3.9 PTZ (PT/TZ Camera only) This section tells you how to adjust the camera. STEP 1: Click the [PTZ] on the “Main Setup page”. The “PTZ page” is displayed as below ■ Camera setting Parameters Select the pan speed. Pan Speed Select the tilt speed.
  • Page 42 Checkbox to enable/disable auto pan function. Auto Pan Enable Select the preset number Entry Setting the delay time of auto pan function. Dwell Preset state of enable or disable. State Click the button of add preset number. Add Preset Click the button of del preset number. Del Preset 2-38...

  • Page 43: User Account Management

    2.3.10 User Account Management This section tells you how to setup accounts. STEP 1: Click the [User account] on the “Main Setup page”. The “Account management page” is displayed as below STEP 2: Setup the account names and their respective passwords. There are 1 root (administrator) account and accounts.

  • Page 44: System Info

    2.3.11 System Info This section tells you how to see the system information of this IP device including system information, WAN status and system log. STEP 1: Click the [System info] on the “Main Setup page”. The “System information page” is displayed as below STEP 2: View the information at the 3 columns.
  • Page 45 STEP 3: Click of the IP device. STEP 4: Click device while reporting a support to your support channel. 2-41 [Parameter List] where you may see all configurations [Server Report] to export related information of the IP...

  • Page 46: Firmware Upgrade

    2.3.12 Firmware Upgrade This section tells you how to see update IP device’s firmware. You can always visit our web site for the latest firmware. STEP 1: Click the [Firmware] on the “Main Setup page”. The “Firmware upgrade page-1” is displayed as below STEP 2: Click will be displayed as below.
  • Page 47 You can always get the latest version at our website. You can upload the MD5 file here. Click the [browse] to select an MD5 file and click the [enter]. MD5 file You can always get the latest version at our website. NOTE: The version of the firmware image and the MD5 file to be uploaded must be the same, otherwise, the firmware upgrading will...

  • Page 48: Factory Default

    2.3.13 Factory Default This section tells you how to see load IP device’s factory default setting. STEP 1: Click the [Factory Default] on the “Main Setup page”. The “Factory default setting page” is displayed as below STEP 2: Click the [Apply] button to go to loading confirmation page or click the [Reset] button to exit to previous page.

  • Page 49: Save Reboot

    2.3.14 Save Reboot This section tells you how to save all the settings and reboot this IP device. This is critical because some settings might not take effect before save and reboot. STEP 1: Click the [Save and reboot] on the “Main Setup page”. The “Save and reboot page”...

  • Page 50: Logout

    2.3.15 Logout This section tells you how to logout the IP device. Be sure to logout this IP device once your setting is completed. STEP 1: Click the [Logout] on the “Main Setup page”. You will logout and return to the “Login Page” displayed as below. 2-46...

  • Page 51: Function

    2.4 OSD Setting 2.4.1 Function Deleted: <sp>¶ 2-47...

  • Page 52: Osd Menu Setting

    2.4.2 OSD Menu Setting When you control the OSD by using joystick on the camera, refer to the following (select models only) When you control by the five keys on the NVR Software GUI refer to the following 2-48 SETUP DOWN...

  • Page 53: Operating Camera Osd Menu

    2.4.3 Operating Camera OSD Menu STEP 1: Press the Set button to access the SETUP mode. SETUP menu is displayed on the monitor screen. STEP 2: Select the desired feature using the UP or DOWN button. Each time you press the UP or DOWN button, the arrow indicator moves up or down.
  • Page 54 Setting up the LENS Select the lens pressing the RIGHT button. a. On the SETUP menu screen, move the arrow indicator to the lens using the up or Down button. b. Select the desired feature using the LEFT or RIGHT button. 2-50...
  • Page 55 When DC LENS selected, press SET button to control the BRIGHTNESS. 2-51...
  • Page 56 Shutter status and speed control You can control brightness of the screen by the shutter speed. a. Press the SET button to display the setup menu and move the arrow indicator to ‘SHUTTER’ using the UP or DOWN button. b. Set ‘SHUTTER’ the desired mode using the LEFT or RIGHT button.
  • Page 57 Manual : When setting shutter speed manually. (Only for LENS mode) You can select speed from ‘1/60’ to ‘1/200,000’ 2-53...
  • Page 58 ESC : You can control the BRIGHTNESS. c. When completed, press ‘SET’ 2-54...
  • Page 59 SLC ( Speco Light Compensation ) – BACKLIGHT A built-in SR chip provides intelligent light level control to overcome serve Backlight conditions. a. Press the SET button to display the SETUP menu and move arrow indicator to ‘BACKLIGHT’ using the UP or DOWN button.
  • Page 60 AUTO GAIN CONTROL (AGC) AGC is to get bright picture. Higher GAIN level, getting brighter screen. However, you can get noise increase. a. Press the SET button to display the SETUP menu and move arrow indicator to ‘AGC’ using the UP or DOWN button. b.
  • Page 61 WHITE BALANCE (WITE BAL.) For color control on the screen, use ‘WHITE BALANCE’ function. a. Press the SET button to display the SETUP menu and move arrow indicator to ‘ DOWN button. b. SET ‘ WHITE BALANCE or RIGHT button. ATW (Auto Tracking White Balance) : When color temperature is 2400 ~ 12000K, select this mode.
  • Page 62 the SET button. Increase or decrease the value for RED(R-Gain) and BLUE(B-Gain), watching the color of the picture, and press the SET button when you obtain the best color. NOTE: Proper White Balance may not be obtained under the following conditions in these cases select the AWC mode. When the scene contains mostly high color temperature object, such as a blue sky or sunset.
  • Page 63 Digital Noise Reduction (Dynamic Noise Reduction) DNR is to reduce the noise on the screen. a. Press the SET button to display the SETUP menu and move arrow indicator to ‘ b. SET ‘ button. OFF : Deactivation LOW : Low reduction of the noise MIDDLE : Middle reduction of the noise HIGH : High reduction of the noise NOTE:...
  • Page 64 INTENSIFIER Allows you to get clear images with function under night or low light conditions a. Press the SET button to display the SETUP menu and move arrow indicator to ‘ button. b. SET ‘ INTENSIFIER’ RIGHT button. AUTO : When your camera is under night or low-lighting NOTE: If you press SETUP at ‘AUTO’...
  • Page 65 NEXT PAGE a. Press the SET button to display the SETUP menu and move arrow indicator to ‘ button. b. SET ‘ NEXT PAGE’ RIGHT button. 2-61 ’ using the UP or DOWN NEXT PAGE to the desired mode using the LEFT or...
  • Page 66 CAMERA TITLE a. Press the SET button to display the SETUP menu and move arrow indicator to ‘ button. b. SET ‘ NOTE: If the CAMERA ID feature is set to ‘OFF’, the name will not displayed in the monitor. c.
  • Page 67 ⑤ Select the position at which the CAMERA TITKE will b located on the screen. NOTE: If the CAMERA feature is set to ‘OFF’, the name will not displayed in the monitor. After erasing the character from right to left, correct the character again.
  • Page 68 CAMERA TITLE You can choose color and B/W mode electronically. (OPTION) ON : Color mode OFF : B/W mode AUTO : generally color mode, B/W mode in low luminance. NOTE: OSD Key may not work for 3 seconds when the color B/W mode is changed.
  • Page 69 SYNC Two SYNCHRONIZATION modes are available… INTERNAL and EXTERNAL LINE-LOCK. In LINE_LOCK mode, the camera sync to the 60HZ phase. a. Press the SET button to display the SETUP menu and move arrow indicator to ‘ b. SET to the desired mode using the LEFT or RIGHT button. INT : Internal synchronization L/L : if you choose ‘L/L’, you can adjust the desired phase.
  • Page 70 PRIVACY To mask an area that you want to be private. a. Press the SET button to display the SETUP menu and move arrow indicator to ‘ b. SET ‘PRIVACY’ to the desired mode using the LEFT or RIGHT button. OFF : Deactivation ON : PRIVACY mode activated - Press the SET button.
  • Page 71 10. REVERSE a. Press the SET button to display the SETUP menu and move arrow indicator to ‘ b. SET ‘REVERSE’ to the desired mode using the LEFT or RIGHT button. OFF : Deactivation ON : Make a reverse turn to RIGHT or LEFT. 2-67 the UP or DOWN button.
  • Page 72 11. DETAIL a. Press the SET button to display the SETUP menu and move arrow indicator to ‘ b. SET ‘DETAIL’ to the desired mode using the LEFT or RIGHT button. OFF : Deactivation 2-68 the UP or DOWN button. DETAIL’...
  • Page 73 ON : DETAIL control mode (level 0~31) When the level is up, the sharpness will increase. Control this level to get your best picture quality. If the level is too high, you can get an unnatural image with video noise. 12.

  • Page 74: Operating Camera Osd Menu (Sipsd10X)

    2.4.4 Operating Camera OSD Menu (SIPSD10X only) MAIN MENU DOME SETUP CAMERA SET AUTO SCAN TOUR PRAVACY PATTERN ALARM SECTOR EXIT * Use the the five keys on the WebViewer GUI “up down” to move the position and “left right” to make selection 2-70...
  • Page 75 A. Dome Setup To enter Dome setup, use the five keys right to move when cursor on dome setup. DOME SET CAMERA ID CAM1□□□□□□□□□□□□ RECOVER : OFF MANUAL SPEED : 100°/S AUTO FLIP : OFF ZOOM SPEED : FAST ALARM : DISABLE LANGUAGE : ENGLISH...
  • Page 76 “right or left” to select ON or OFF. The default setting is OFF. A-5. DOME SET – ZOOM SPEED Zoom speeds are selectable FAST or SLOW mode. Move five keys to the right direction for selecting FAST or SLOW. The default setting is FAST.
  • Page 77 The default setting is BLANK. ENTER PASSWORD BY ENTERING PRESET CODE PASSWORD *** CONFIRM *** Press any number from 001~255 with preset button on password blank and again it on confirm blank. Then “CONFIRMED” is displayed on the monitor and the menu will go back to the previous page automatically. ENTER PASSWORD BY ENTERING PRESET CODE PASSWORD ***...
  • Page 78 OSD DISPLAY CAMERA ID : OFF PRESET ID : OFF SECTOR ID : OFF COORDINATE: ON [PREVIOUS PAGE] A-8-4. DOME SET – [NEXT PAGE] – [SYSTEM STATUS] This page shows the information of this camera. SYSTEM STATUS PROTOCOL : PELCO D, P BAUD RATE : 2400 BPS FIRMWARE VER.
  • Page 79 INITIALIZATION [TOUR CLEAR] [PRESET CLEAR] [SECTOR CLEAR] [PRIVACY CLEAR] [PATTERN CLEAR] [LOAD OPTIMIZED DEFAULT] [PREVIOUS PAGE] - To clear memorize any data, move five keys to the right direction when cursor is on each item. TOUR CLEAR ARE YOU SURE? YES NO Press FOCUS NEAR button when the cursor is at YES in order to clear memorized data.
  • Page 80 A-9. DOME SET – [NEXT PAGE] – SAVE AND EXIT To saving the memorized data and escape this page, move five keys to the right direction when cursor is at SAVE AND EXIT. A-10. DOME SET – [NEXT PAGE] – EXIT In order not to save any data and wants to escape this page, move five keys to the right direction when cursor is at EXIT B.
  • Page 81 sharpens the edges in the picture. The default seeting is 10. (the aperture level is from 01 ~ 15) (10X Zoom) B-4. CAMERA SET – D ZOOM Move five keys to the right direction in order to set as ON, if Digital Zoom is necessary at install field.
  • Page 82 If DSS turns on, digital slow shutter is working. Per second, the electronic shutter will remain open to receive some more lighting. (10X Zoom) B-10. CAMERA SET – EXIT To escape this page, move five keys to the right direction. C.
  • Page 83 press FOCUS FAR button again after setting a preset location. C-4. PRESET – SAVE Move five keys to the right direction when the cursor is at SAVE and then the cursor will be located on Preset ID for the continuous preset No. setting.
  • Page 84 CW: Clock wise direction (Default) CCW: Count Clock Wise Direction. D-4. AUTO SCAN – ENDLESS Auto Scan can use endless rotation, move five keys to the right direction in order to select ON. Otherwise, the default setting is OFF. D-5. AUTO SCAN – SPEED User can use auto scan speed from 05°/S up to 35°/S and the default setting is 10°/S D-6.
  • Page 85 E. TOUR SET 8 Programmable tours can be set and each tour is available to set up to 64 preset steps. TOUR SET TOUR NO : 01 TOUR TITLE : TOUR01□□□□□□□□□□ TOUR STEP : 01 PRESET NO. : 01 DWELL TIME : 03 SPEED : 200°/S SAVE...

  • Page 86: Id Setting (Sipsd10X)

    setting is 03 seconds. E-6. TOUR SET – SPEED Each tour step can be set with different tour speed up to 200°/S and it is selectable from 10°/S. Move five keys to the right or left direction to select tour speed. The default setting is 200°/S. E-7.
  • Page 87 F-3. PRIVACY SET – ACTION(MOVE/ADJUST) To set the blocking area, press FOCUS FAR button when the MOVE MODE is appeared. Then use the five keys to the user defined area in order to set blocking area. Then press FOCUS FAR button again to escape from MOVE MODE.
  • Page 88 G-1. PATTERN SET – PATT NO. Up to 8 programmable user-defined patterns set by the five keys on the Webviewer GUI are available. G-2. PATTERN SET – PATT TITLE To set PATTERN TITLE, select up to 16 characters using Five keys to the left or right.
  • Page 89 H. ALARM SET 4 Alarm inputs are available and each alarm is activating to presets, group tours or patterns. ALARM SET ALARM NO : 01 ALARM INPUT: OFF ALARM ACT : 001 SAVE EXIT H-1. ALARAM SET – ALARM NO. Up to 4 alarms are selectable by using five keys to the right direction when cursor is on ALARM NO.
  • Page 90 I. SECTOR SET Up to 8 programmable sectors are available with 16 characters. This feature is useful to memory the certain location such as parking zone or so on. When camera goes through this area, it shows the letter you memorized. SECTOR SET SECTOR NO : 01...
  • Page 91 I-5. SECTOR SET – SAVE After setting the SECTOR position, to save the data, move five keys to the right direction when the cursor is on SAVE. After saving the data, the cursor moves to SECTOR NO.2 automatically to prepare the next SECTOR.

  • Page 92: Baud Rate Setting (Sipsd10X)

    2.4.5 DIP SW SETTING (SIPSD10X only) Mini Speed Dome camera provides up to 63 camera ID and it’s adjustable ID with 1 of Dip switch Open the camera case, set ID using DIP SW1. * Factory default: Camera ID = 1, PELCO-D 2.4.6 ID SETTING (SIPSD10X only) (1-ON, 0-OFF)(1...

  • Page 93: Protocol (Sipsd10X)

    010100XXXX 000001XXXX 110100XXXX 100001XXXX 001100XXXX 010001XXXX 101100XXXX 110001XXXX 011100XXXX 001001XXXX 111100XXXX 101001XXXX 000010XXXX 011001XXXX 100010XXXX 111001XXXX 010010XXXX 000101XXXX 110010XXXX 100101XXXX 001010XXXX 010101XXXX 101010XXXX 110101XXXX 011010XXXX 001101XXXX 2.4.7 PROTOCOL (SIPSD10X only) dip switches are used for Protocol Setting. Factory Default: Pelco-D or Pelco-P ( Auto detection) DIP SW1- 7 DIP SW1- 8 2.4.8...

  • Page 94: Appendix

    APPENDIX 3.1 Specification 3.1.1 SIP Camera Series * Network Spec. Video Compression Compression MPEG-4 SP Full D1 (720x480 in NTSC, 720x576 in PAL) VGA (640x480 inNTSC, 640x480 in PAL) Resolution CIF (352 x 240 in NTSC, 352x288 in PAL) QCIF (176x120 in NTSC, 176x144 in PAL) Bit Rate 28 K ~ 3 M bps 30 fps at full D1 resolution (NTSC)
  • Page 95 * Camera Spec. SIPB1 Image Sensor Horizontal Resolution Total Pixels Effective Pixels Electric Shutter Min. Scene Illumination Lens Type Max. Aperture Scanning System Synchronization S/N Ratio Day/Night OSD (On Screen Display) White Balance SLC (Speco Light Compensation) Dynamic Noise Reduction (DNR) INTENSIFIER Color Motion Detection...
  • Page 96 SIPB2 Image Sensor Horizontal Resolution Total Pixels Effective Pixels Electric Shutter Min. Scene Illumination Lens Type Max. Aperture Scanning System Synchronization S/N Ratio Day/Night OSD (On Screen Display) White Balance SLC (Speco Light Compensation) Dynamic Noise Reduction (DNR) INTENSIFIER Color Motion Detection Privacy Video output...
  • Page 97 SIPD3 Image Sensor Horizontal Resolution Total Pixels Effective Pixels Electric Shutter Min. Scene Illumination Lens Type Max. Aperture Scanning System Synchronization S/N Ratio Day/Night OSD (On Screen Display) White Balance SLC (Speco Light Compensation) Dynamic Noise Reduction (DNR) INTENSIFIER Color Motion Detection Privacy Video output...
  • Page 98 SIPD4 Image Sensor Horizontal Resolution Total Pixels Effective Pixels Electric Shutter Min. Scene Illumination Lens Type Max. Aperture Scanning System Synchronization S/N Ratio Day/Night OSD (On Screen Display) White Balance SLC (Speco Light Compensation) Dynamic Noise Reduction (DNR) INTENSIFIER Color Motion Detection Privacy Video output...
  • Page 99 SIPT5 Image Sensor Horizontal Resolution Total Pixels Effective Pixels Electric Shutter Min. Scene Illumination Lens Type Max. Aperture Scanning System Synchronization S/N Ratio Day/Night OSD (On Screen Display) White Balance SLC (Speco Light Compensation) Dynamic Noise Reduction (DNR) INTENSIFIER Color...
  • Page 100 SIPSD10X Pan Rotation Angle Pan Speed Tilt Rotation Angle Tilt Speed System Accuracy Presets Group Tour Auto scan Pattern Privacy Zone Sector Password Protection Auto Flip Protocol Image Sensor Horizontal Resolution Total Pixels Effective Pixels Min. Scene Illumination Lens Day & Night (ICR) Digital Slow Shutter S/N Ratio OSD (On Screen Display)

  • Page 101: Sipmp Camera Series

    Dimensions(HxD) Weight 3.1.2 SIPMP Camera Series * Network Spec. Video Compression Compression MPEG-4 SP SXGA (1280x1024) at 8 fps Resolution HD720 (1280x720) at 10fps VGA (640x480) at 30 fps Up to 8 fps at SXGA resolution; Up to 10 fps at HD720 Image Frame Rate resolution;...
  • Page 102 * Camera Spec. SIPMPB Image Sensor Effective Pixels Electric Shutter Lens Min. scene Illumination Synchronization S/N Ratio Flickerless Day/Night White Balance Motion Detection Power Source Operational Temperature Operational Humidity Dimensions(WxHxD) Weight 3-98 1/3" Micron Progressive Scan CCD 1280 x 1024 1/10 ~ 1/2,000sec (60Hz) 1/10 ~ 1/2,000sec (50Hz) F 4.3mm, f1.8 / 75Deg(Horizontal)
  • Page 103 SIPMPD Image Sensor Effective Pixels Electric Shutter Lens Min. scene Illumination Synchronization S/N Ratio Flickerless Day/Night White Balance Motion Detection Power Source Operational Temperature Operational Humidity Dimensions(HxD) Weight 3-99 1/3" Micron Progressive Scan CCD 1280 x 1024 1/10 ~ 1/2,000sec (60Hz) 1/10 ~ 1/2,000sec (50Hz) F 4.3mm, f1.8 / 75Deg(Horizontal) 0.5 Lux at F1.8 (30 IRE, MAX AGC)
  • Page 104 SIPMPT5 Image Sensor Effective Pixels Electric Shutter Lens Min. scene Illumination Synchronization S/N Ratio Flickerless Day/Night White Balance Motion Detection Power Source Operational Temperature Operational Humidity Dimensions(WxHxD) Weight 3-100 1/3" Micron Progressive Scan CCD 1280 x 1024 1/10 ~ 1/2,000sec (60Hz) 1/10 ~ 1/2,000sec (50Hz) F 4.3mm, f1.8 / 75Deg(Horizontal) 0.5 Lux at F1.8 (30 IRE, MAX AGC)

This manual is also suitable for:
