Speco CLPR66B4B Installation Instructions

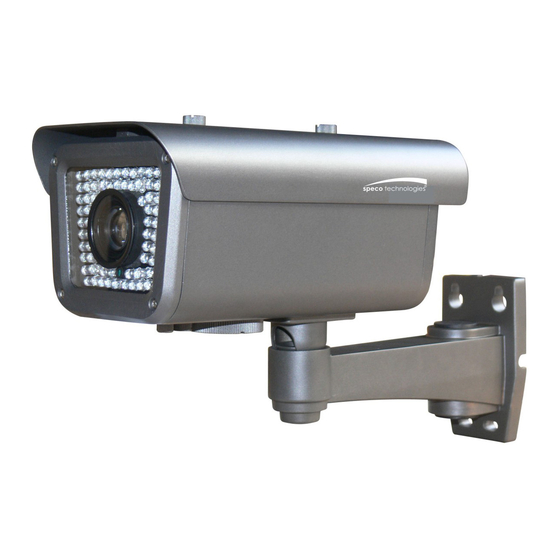

License Plate Camera
CLPR66B4B

Installation Precautions

1. Avoid installing camera where there are frequent vibrations or shocks.
2. Please keep the glass in front of the camera clean. Do not touch it directly.
Use a soft cloth with alcohol to wipe glass if necessary.
3. The available IR range of this camera is shown in the specification.
Please be sure to place the camera within the specified range
3. In order to prevent damage to the camera, please do not loosen any screws or
covers unless modifying settings.
4. Please do not operate camera beyond conditions listed in the specification.
Use 12V DC regulated power supply to avoid damaging camera.

Included Accessories

User Manual x1
Screws x4
Anchors x4
.
Mounting Template x1
Hex shape Wrench x1
DC Connector x1

Specifications:

ITEM
IP Rating IP66
Type Monochrome
Signal System NTSC/PAL
Pick Up Device 1/3" Sony Color High Resolution CCD
Picture Elements NTSC: 811H×508V; PAL: 795H×596V
Resolution 550 TV Lines
Number of LEDs 80 IR LED
Min Illumination 0 Lux
Vertical Frequency NTSC: 60Hz;
Horizontal Frequency NTSC: 15.734KHz; PAL:15.625KHz
Clock Frequency NTSC: 28.636MHz; PAL:28.375MHz
2:1 Interlace
Scanning System
S/N Ratio ≥50dB
Electronic Shutter NTSC: 1/60-1/100,000s; PAL: 1/50-1/100,000s
Lens 9-22mm Varifocal Auto Iris IR Lens
White Balance AUTO Tracking
Back Light ON
ON
Auto Gain Control
GAMMA 0.45
Video Out-put 1V
DC12V ± 10%
Power Supply
Current Consumption 200mA (Max)
IR Range 6.56 ft – 49.18ft (2m – 15m) (Outdoor)
Dimension 12.80" × 7.72" × 4.88" (325×196×124mm)
Weight 67.72oz (1920g)
Storage Temperature -22
-22
Operating Temperature
We reserve the right to modify product design and specification without notice and without incurring any obligation
CLPR66B4B
PAL: 50Hz
,75
p-p
1 40° F (-30 6 0° C)
～ ～
1 04° F (-30 4 0° C)
～ ～
