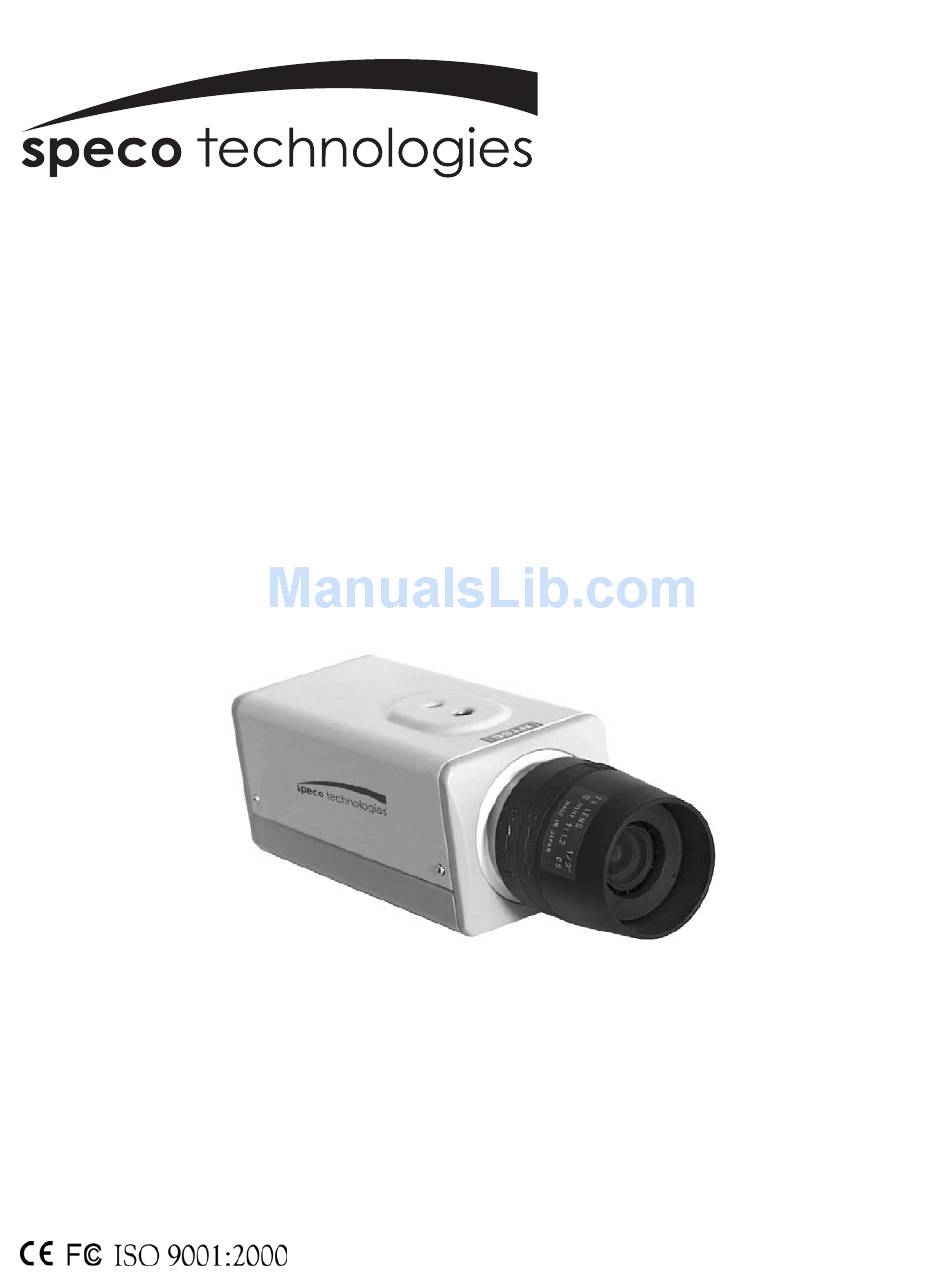

Page 1: Instruction Manual

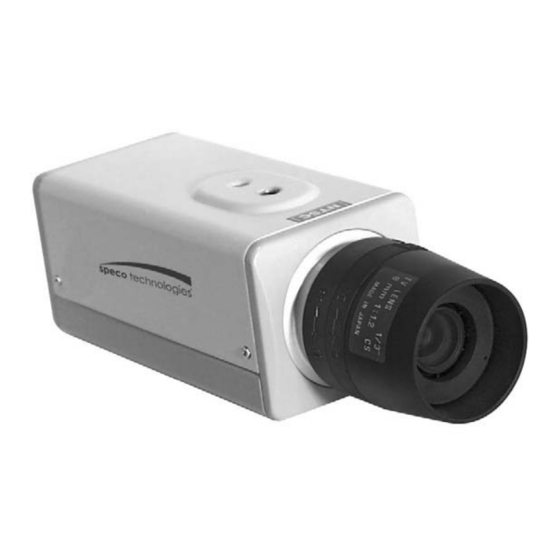

® Instruction Manual CVC-614C High Resolution Color Camera CVC-865DN/24 High Resolution Color Camera With Mechanical IR Cut Filter 200 New Highway Amityville . NY . 11701 1-800-645-5516 Fax: 631.957.9142 or 631.957.3880 www.specotech.com... -
Page 2: Table Of Contents
The user's manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the users' authority to operate the equipment. Speco Technologies CVC-614C : CVC-865DN/24 Instruction Manual... -
Page 3: Warning
Never aim the camera at the sun or other extremely bright objects. ●Cleaning Do not touch the surface of the CCD sensor by hand. Use lens tissue or a cotton tipped applicator and ethanol to clean the CCD sensor and camera lens. Speco Technologies CVC-614C : CVC-865DN/24 Instruction Manual... -
Page 4: Camera Layout
Power supply indicator Power input terminal 12 Volts DC/24 Volts AC – Dual Voltage Video / DC drive auto iris lens selector ALC level adjuster - for DC-DRIVE lens Function control DIP switch Speco Technologies CVC-614C : CVC-865DN/24 Instruction Manual... -
Page 5: Function Description
4. Automatic Gain Control (AGC) AGC can automatically amplify the video signal to compensate for low light environments. Speco Technologies CVC-614C : CVC-865DN/24 Instruction Manual... -
Page 6: Connections
- The picture is not clear ◎Note: If dust adheres to the lens, the picture quality will suffer. To clean the lens, wipe lightly with a soft cloth or a commercially available lens cleaning paper. Speco Technologies CVC-614C : CVC-865DN/24 Instruction Manual RG-6U RG-11U... -
Page 7: Installing The Lens
2. DC servo auto iris lens (without EE amp) Set the lens selector to the "DC" position. To ensure correct lead connection, please refer to the instructions on the lens. Speco Technologies CVC-614C : CVC-865DN/24 Instruction Manual DEFINITION DC +12 V... -
Page 8: Specifications
Shutter Control Dimension Net Weight * Specifications are subject to change without prior notice. * Line Lock is available when AC Voltage is used. Speco Technologies CVC-614C : CVC-865DN/24 Instruction Manual CVC-614C 1/3" Color HQ1 Camera Sony HQ1 Sony Super-HAD CCD Image Sensor <NTSC>... - Page 9 ® Speco Technologies 200 New Highway Amityville . NY . 11701 1-800-645-5516 Fax: 631.957.9142 or 631.957.3880 www.specotech.com Speco Technologies CVC-614C : CVC-865DN/24 Instruction Manual...
