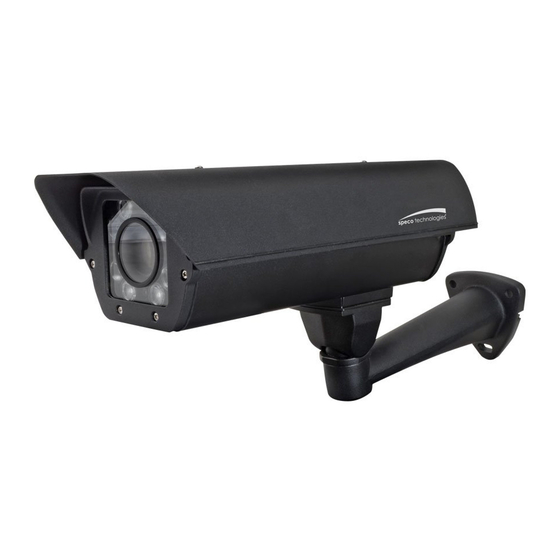

Speco CLPR67H Manual

License Plate Capture Camera
! ITEM №: CLPR67H

Adjustable function

!
1. Resistor A: If you want to change the intensity of the IR light, please open
the back cover. And you can adjust it in the tail of the box camera( the
following picture is for your reference)
2. Resistor B: If you want to change the working time of IR Led, please open
the back cover. And you can adjust the working time in the tail of box
camera (the following picture is for your reference)." – "refers to the IR LED
will start working under the darker situation. "+" refers to the IR LED will
start working under the brighter situation.

! Packing

1. Camera
2. User Manual
3. Screw
4. Metal-Conical-Anchor
5. Adaptor
6. Hexagonal Wrench
7. Mounting drawing paper
!

Specification

ITEM
IP Rating
Type
Signal System
Pick Up Device
Picture Elements
Resolution
LED
Vertical Frequency
Horizontal Frequency
Clock Frequency
Scanning System
S/N Ratio
Lens
Video Out-put
Power Supply
Current Consumption
Recommend Working Distance
Dimension
Weight
Storage Temperature
Operating Temperature
Remark: Non-regulative adaptor may cause camera damaged.
X1
X1
X3
X3
X1
X3
X1
CLPR67H
IP66
Monochrome
NTSC/PAL
1/3" 960H CCD
NTSC:1020H×508V PAL:1020H×596V
700 TVL
8Pieces Super High Power LED
NTSC:60Hz;PAL:50Hz
NTSC:15.734KHz PAL:15.625KHz
NTSC/PAL:36MHz
2:1 Interlace
≥52dB
5-50mm Varifocal Auto Iris IR Lens
1V p-p,75Ω
DC12V±10%
1500mA (with heater and fan)
5-30M （16.3-98.3ft）
492×140×260mm （19.37"×5.5"×10.24"）
2520g (88.8oz)
-30～+60 (-22～+140 )
-30～+40 (-22～+104 )
