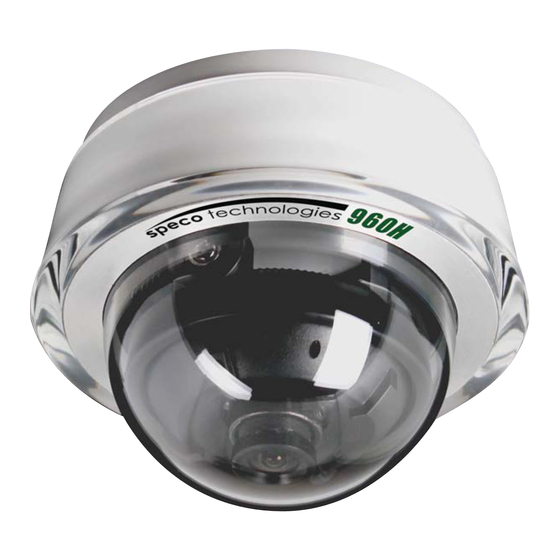

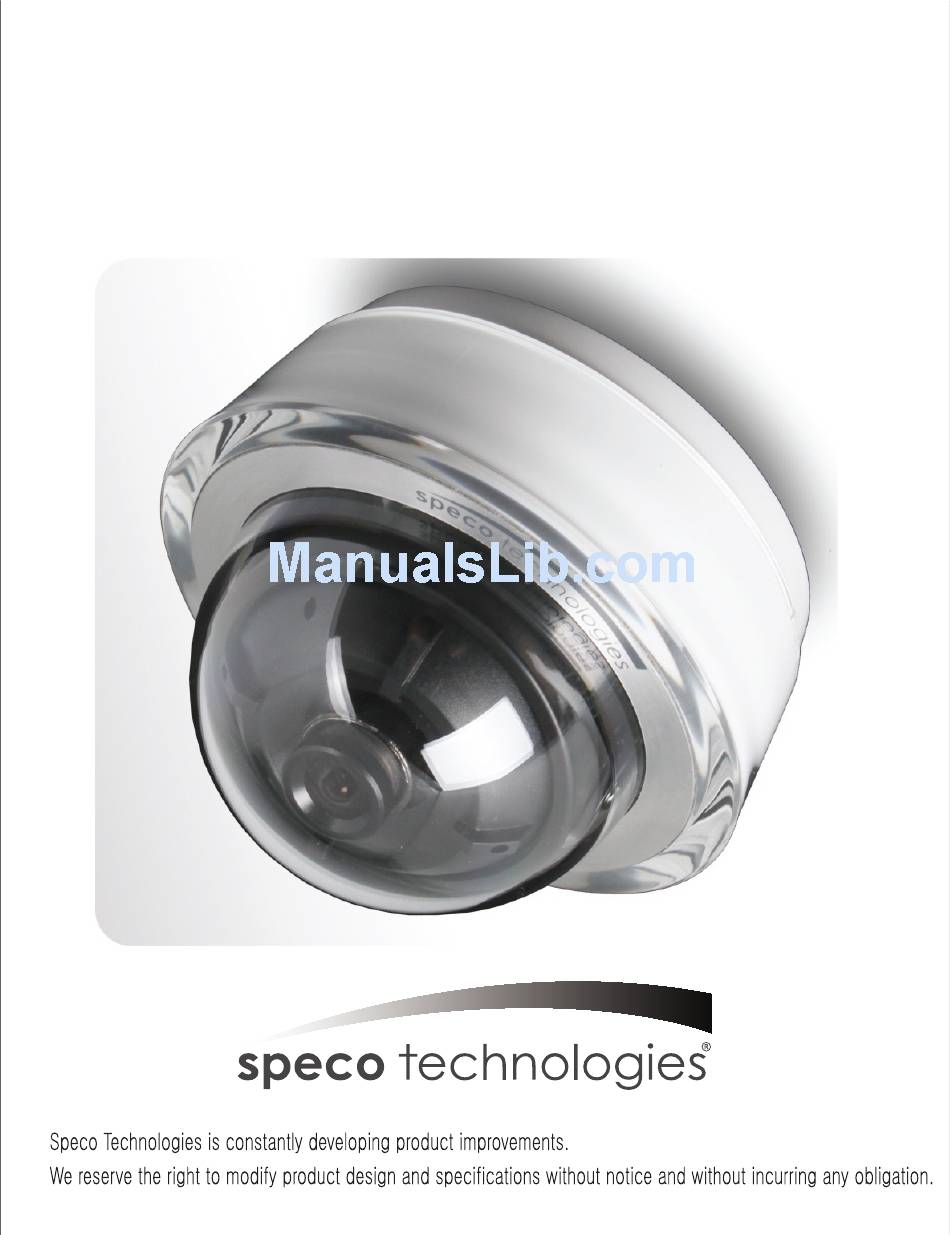

- Page 1 INSTRUCTION MANUAL CDD11HW 960H Diamond Indoor Dome Camera S250...
-
Page 2: Table Of Contents
Content Content Warning & Caution General Features Composition Dimension Connection Product Overview Installation Specification OSD Menu OSD Menu Setting Trouble Shooting... -
Page 3: Warning & Caution
Warning & Caution This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’ s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance persons. -
Page 4: General Features
General Features • Resolution : 700 TV Lines • Built in Fixed Lens 3.6 mm • Min.illumination : Color : 0.1Lux, B/W : 0.01Lux • Tact Switch type OSD Control • Motion Detection, Privacy Zone, Mirror Function • 2nd Video-out connector for installer •... -
Page 5: Composition
Composition 1. Camera 2. Mounting Screws Tapping Screws 4 x 25 3 pcs 3. Instruction Manual 4. Pig Tail... -
Page 6: Dimension
Dimension 2.4” 3.4” Units : inch... -
Page 7: Connection
Connection Monitor 1. DC Jack 2. Power Adaptor (DC 12V) 3. BNC Jack (Video Output) -
Page 8: Product Overview
Product Overview Left Right Down 1. Dome Glass 2.4” 4. Bottom Cover 2. Top Cover 5. Lens 3. Main Body 6. OSD Menu Switch... -
Page 9: Installation
Installation Refer all work related to the installation of this product to qualified service personnel or system installer. Preparation 1. Remove the Top Cover a. Gently turn the Top Cover counter-clockwise to unlock, then pull free of the Main Body. b. -
Page 10: Camera Mounting
Installation Camera Mounting a. Pass the Power Cable and the Video Cable from the camera unit through the hole in the ceiling. b. Install the Main Body to the desired installation surface using 3 supplied mounting screws. Camera Adjustment - The dome camera has three position adjustments, and OSD Menu Setting Switch. - Page 11 Installation - OSD Menu Setting is controlled by Tact Switch type OSD Menu Switch located in backside of control PCB. Left Right Down OSD Menu Switch - After installation and adjustment of the camera is complete, secure the Top Cover by turning it clockwise.
-
Page 12: Specification
Specification Type CDD11HW IImage Sensor 1/3” Sony Supper HAD II CCD (960H) Video System NTSC TV System Total Pixels 1028(H) x 508(V) Effective Pixels 976(H) x 494(V) Scanning Frequency 15.734kHz x 59.94Hz Scanning System 2:1 Interlace Sync System Internal Synce... -
Page 13: Osd Menu
OSD Menu EXPOSURE LENS ELC, DC HBLC/D-WDR BLC - MODE, WEIGHT OFF,LOW,MID,HIGH 2D-DNR RETURN COLOR (W B) WB MODE ATW, MANUAL, PUSH R-Y GAIN B-Y GAIN RETURN DAY&NIGHT D&N MODE AUTO, COLOR, B&W, EXT C_SUP <0 ~ 100> A_SUP <0 ~ 100> RETURN FUNCTION MIRROR... -
Page 14: Osd Menu Setting
OSD Menu PRIVACY MASK1 DOT SEL DOT XY MOVE XY COLOR SET MASK8 DOT SEL DOT XY MOVE XY COLOR SET RETURN SET UP TITLE AUTO/MANUAL OLPF FILTER 1 MONITOR GAMMA 0.45 RETURN SYSTEM CAMERA ID COMMUNI. LANGUAGE OSD COLOR BLUE RETURN EXIT... -
Page 15: Trouble Shooting
OSD Menu Setting EXPOSURE The Lens, HBLC/D-WDR, AGC, etc options that are available in the EXPOSURE menu. EXPOSURE – LENS - Select ELC mode for electronic EXPOSURE shutter AE controls. - Select DC mode for DC-IRIS LENS controls. HBLC/D-WDR HIGH 2D DNR RETURN EXPOSURE –... - Page 16 EXPOSURE – LENS – DC - DC modes use DC-IRIS lenses and they control AE. Electronic shutter speed default is 1/60. EXPOSURE – LENS – DC – E.SHTTER - LENS – DC mode setting. LENS – DC - E.SHUTTER : Electronic shutter E.
- Page 17 EXPOSURE – HBLC/D-WDR – -Selected BLC mode. EXPOSURE LENS HBLC/D-WDR HIGH 2D DNR EXIT EXPOSURE – HBLC/D-WDR – BLC – BLC MODE - Select AUTO or MANUAL. - Sets the total AE level at AE BLC MODE MANUAL value of select window area. BLC WEIGHT - AUTO, selects the darkest area RETURN...
- Page 18 EXPOSURE – HBLC/D-WDR – D-WDR - D-WDR captures the images at all light levels by correcting GAMMA CURVE. - If you use an ordinary camera in a scene with an intensive backlight, the object will be displayed dark on the monitor .To solve this problem, you can use the D-WDR function is to improve the dark parts without saturation from bright part.You can adjust SET LEVEL to get clearer images.
- Page 19 COLOR – B-Y GAIN - The color gain controls B-Y DAY&NIGHT - Color & B/W change, D&N filter change, Color/Aperture level control. DAY&NIGHT – D&N MODE - D&N change mode sets. DAY&NIGHT - Select of AUTO / COLOR / B&W / D&N MODE COLOR EXT.
- Page 20 MOTION - This function informs the user there is motion on the screen. Up to 4 area zones. MOTION - MOTION : Select operates MOTION ON/OFF MOTION - AREA SEL : Select each area AREA SEL AREA1 - SENSITI. : Control MOTION SENSITI.
- Page 21 SETUP - The SETUP mode set USER TITLE, DPC(Dead Pixel Compensation), OLPF, MONITOR MODE. SETUP – TITLE - User sets TITLE ON/OFF. SET UP - The user can edit the TITLE by TITLE selecting ON. MANUAL OLPF FILTER 1 MONITOR GAMMA 0.45 RETURN...
- Page 22 SETUP – OLPF - This mode is intended for the SET UP factory use only TITLE MANUAL OLPF FILTER 1 MONITOR GAMMA 0.45 RETURN SETUP – MONITOR - The DISPLAY MONITOR mode SET UP can supports two kinds of displays( CRT/LCD) TITLE MANUAL OLPF...
- Page 23 SYSTEM - The setting Camera ID, 485 comm., language. SYSTEM – CAMERA ID - This mode is intended for the SET UP factory use only CAMERA ID COMMUNI. LANGUAGE ENGLISH OSD COLOR BLUE RETURN SYSTEM – COMMUNI. (communication setting) - This mode is intended for the factory use only SYSTEM –...
- Page 24 Trouble Shooting No picture Check if the power is connected correctly. Check if all the cables are connected correctly. Camera with heat, abnormal motion black lines Check if the power supply meets standard. Check if input power supply changes irregularly. Blinking Screen Check if the camera set toward sun or fluorescent lamp.
- Page 25 Memo...
- Page 27 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
