Summary of Contents for Speco WIDE DYNAMIC RANGE CVC624WDR

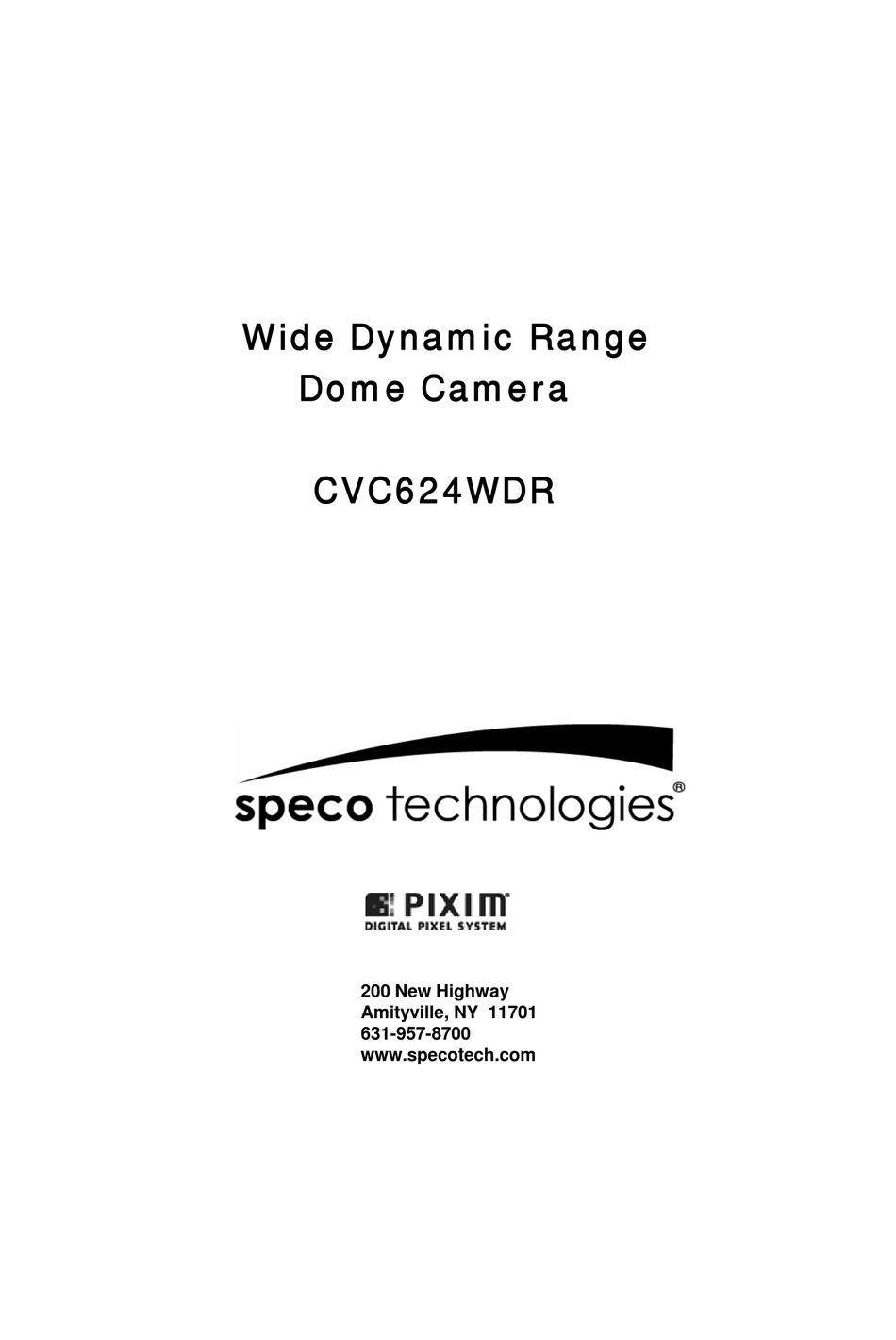

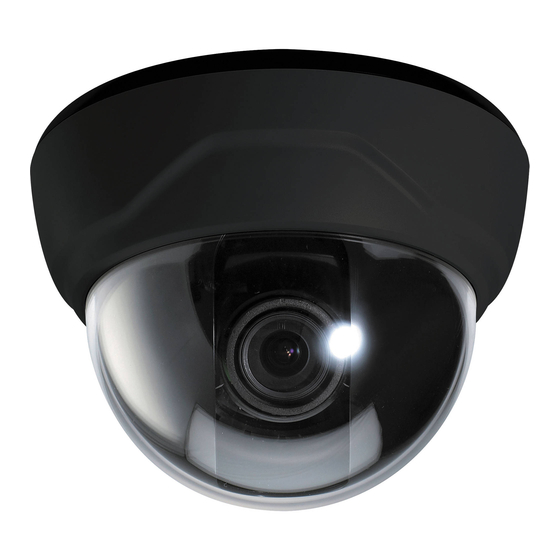

- Page 1 Wide Dynamic Range Wide Dynamic Range Dome Camera CVC624WDR 200 New Highway 200 N Hi h Amityville, NY 11701 631-957-8700 www.specotech.com...
-
Page 2: Warning And Caution
WARNING & CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK D O N O T R E M O V E C O V E R ( O R B A C K ) . N O U S E R S E R V I C E A B L E P A R T S I N S I D E R E F E R S E R V I C I N G... -
Page 3: Table Of Contents
CONTENTS Package Contents Precautions Camera Installation Features OSD Menu Tree OSD Menu Details Troubleshooting Specifications Dimensions Warranty 10-12 13-14... -
Page 4: Package Contents
PACKAGE CONTENTS Please make sure that the following items are included in the package: 1 CVC624WDR Camera 2 Mounting Screws 1 Video Test Connector Please leave this manual with the end-user for future reference. COMPATIBILITY “A” type Box Electrical Box is not included in the package but Is compatible with the camera DFM Series... -
Page 5: Precautions
PRECAUTIONS • THIS CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED PERSONNEL • TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE PROPER POWER CABLE • DO NOT CLEAN THE DOME COVER WITH AN ABRAISIVE CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR TISSUE TO CLEAN THE DOME COVER •... -
Page 6: Camera Installation
CAMERA INSTALLATION CONNECT POWER CABLE 1. WHEN USING 12 VOLTS DC (constant voltage 500 mA) Power Input :RED Center : (+) DC 12V Power Supply 2. CONNECT VIDEO CABLE -CONNECT BNC CABLE TO THE BNC JACK. CONNECT BNC CABLE TO THE BNC JACK... -
Page 7: Camera Installation
CAMERA INSTALLATION MECHANICAL (3) Video Test Terminal (1) VARI-FOCAL LENS Adjust between T W (TELE angle (focal length). Set the focus by adjusting ∞ NOTE: BOTH OF THE ABOVE ADJUSTMENTS GET LOCKED INTO POSITION THROUGH THE USE OF "LOCKING HANDLES". (2) JOY STICK TO SET THE OSD (ON SCREEN DISPLAY) , PRESS THE JOY STICK FOR ONE SECOND AND SET AS DESCRIBED... -
Page 8: Features
FEATURES 1. Superior Wide Dynamic Image Quality It has very Wide Dynamic Range by using the Pixim ORCA Chip Set. Film-like colors are achieved under various Light conditions even in High Dynamic range scenes , Dynamic Range achieves a maximum of 120dB. -
Page 9: Osd Menu Tree
OSD MENU TREE SPECO MAIN MENU PRESETS SET UP ID LENS SELECT WB CONTROL LOW LIGHT SPECIAL EXIT MENU DEFAULT / INDOOR / OUTDOOR / CUSTOM DISPLAY ID : (OFF / ON) CAMERA ID : 8 CHARACTER ID POSITION : (UP-LEFT / UP-CENTER / UP-RIGHT DOWN-LEFT / DOWN-RIGHT) MANUAL AUTO... -
Page 10: Osd Menu Details
OSD MENU DETAILS 1. OSD MENU ENTER / EXIT A. OSD MENU ENTER • Push Center Key for 2 seconds B. OSD MENU EXIT • Press EXIT Menu from Main Menu • If Pressing Set Key for 2 seconds from Main Menu appears. In this case, just press Set Key. - Page 11 OSD MENU DETAILS C. LENS • MANUAL : Use Manual lens Only. D. WDR • WDR (Wide Dynamic Range) : You can adjust the desired WDR BIAS from -20 to 20 and WDR RANGE from 0 to 36 E. WB CONTROL E WB CONTROL •...
-
Page 12: Osd Menu Details
OSD MENU DETAILS • BACK LIGHT : BACK LIGHT ADJUST or SELECT AREA • RESOLUTION : Select Resolution of CCD or PIXIM • COLOR MODE : COLOR or B/W SELECTION • SHARPNESS : ON (You can adjust the desired Sharpness form - 8 to 8) or OFF H. -
Page 13: Troubleshooting
TROUBLESHOOTING If you have trouble operating your camera, refer to the following If you have trouble operating your camera refer to the following Problem ● Check that the power cord and line connection Nothing appears on between the camera and monitor are correct the screen. - Page 14 TROUBLESHOOTING Problem ● Check that you have properly set the The color of the picture is not ‘ WHITE BALANCE ’ menu proper. ● Is the camera facing to direct sunlight or fluorescent The image on the screen flickers. lighting? Change the camera position. Solution...
-
Page 15: Specifications
SPECIFICATIONS Signal System NTSC 1/3 inch Pixim ORCA CMOS (Dramatic Pick-up Device Dynamic range sensor) Total of pixels 742(H) x 552(V) Horizontal Resolution 540 Horizontal TV Lines (color) Vertical Resolution 460 VTVL Scanning System 525 Iines interlaced / 625 Iines interlaced Synchronization Internal Video Output... -
Page 16: Dimensions
DIMENSIONS * SIDE VIEW * TOP VIEW... -
Page 17: Warranty
WARRANTY... - Page 18 MEMO...
- Page 19 MEMO...
- Page 20 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 100317...
