Drive Installation and Enclosure Setup
WARNING:
When inserting drive modules into the enclosure,
do not force the levers closed. If a lever does not close easily,
remove and reinsert the module, and then push the lever in again.

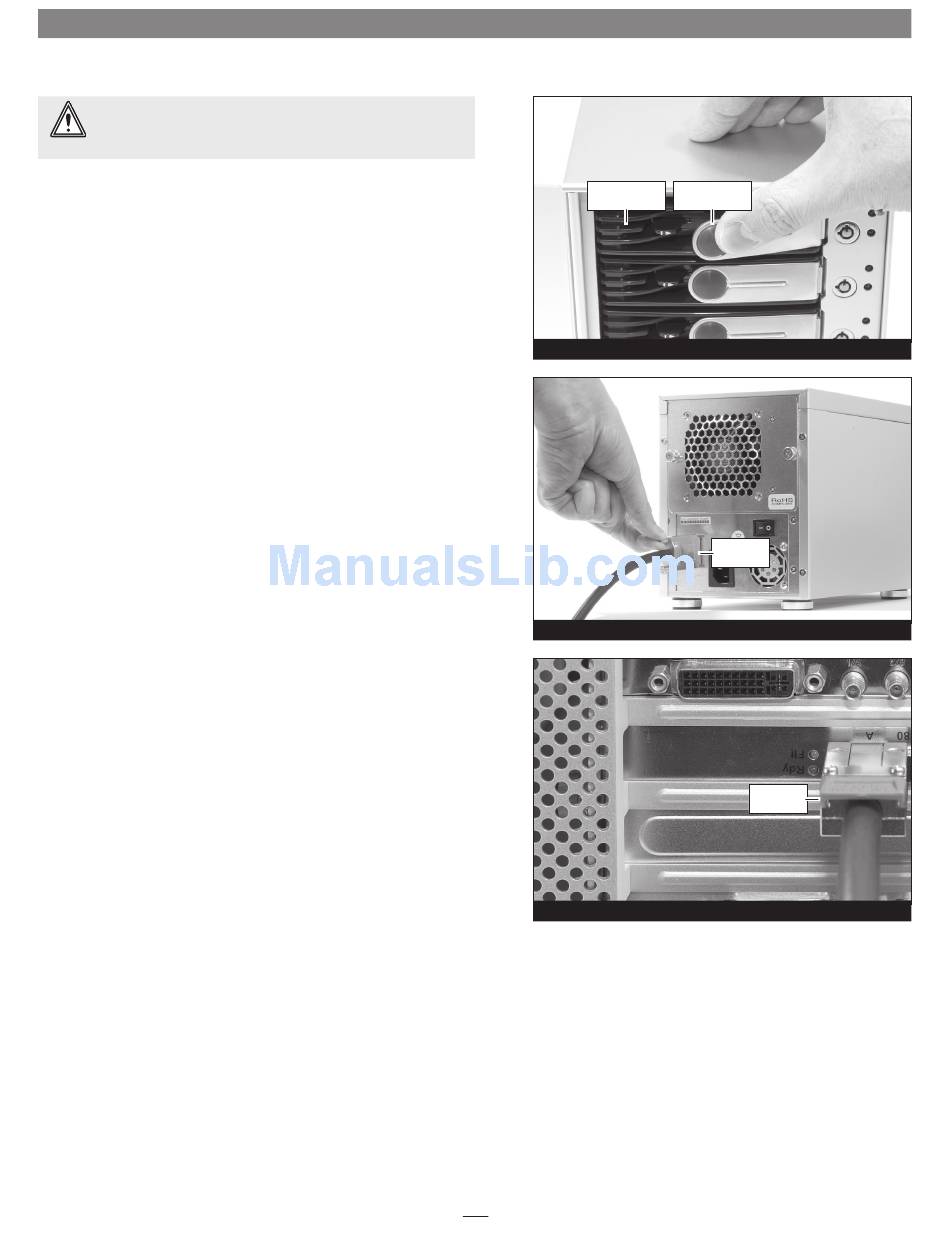

6. Carefully insert the drive module into the enclosure until it
clicks, and then push the lever in to secure the module inside the
enclosure (Figure 7).
7. Repeat steps 2-6 for additional drives.
Connect Fusion D400RAID Drive Enclosure to Sonnet

RAID Controller

This section describes the connection of the Fusion D400RAID drive
enclosure to the Sonnet RAID controller card.
1. Connect the Infiniband end (with thumbscrews) of the supplied
data cable to the Infiniband port on the enclosure; use the
thumbscrews to secure the connector (Figure 8).
2. Connect the mini-SAS end of data cable to a port on the Sonnet
RAID controller card; verify the connector is plugged in securely
(Figure 9).
3. Connect the supplied power cable between the Fusion D400RAID
enclosure and a grounded wall outlet or power strip; verify the
cable is plugged in securely.
4. Push the switch on the back of the enclosure to the on position,
and then power on your computer.
5. Format the drives installed in the Fusion enclosure accord-
ing to your needs; refer to the Configuration Tool and Utilities
Operation Manual for more information.
push tray in
until it clicks

push lever until
it stops
Figure 7
Infiniband
connector
Figure 8
mini-SAS
connector
Figure 9
