ENGLISH
U1

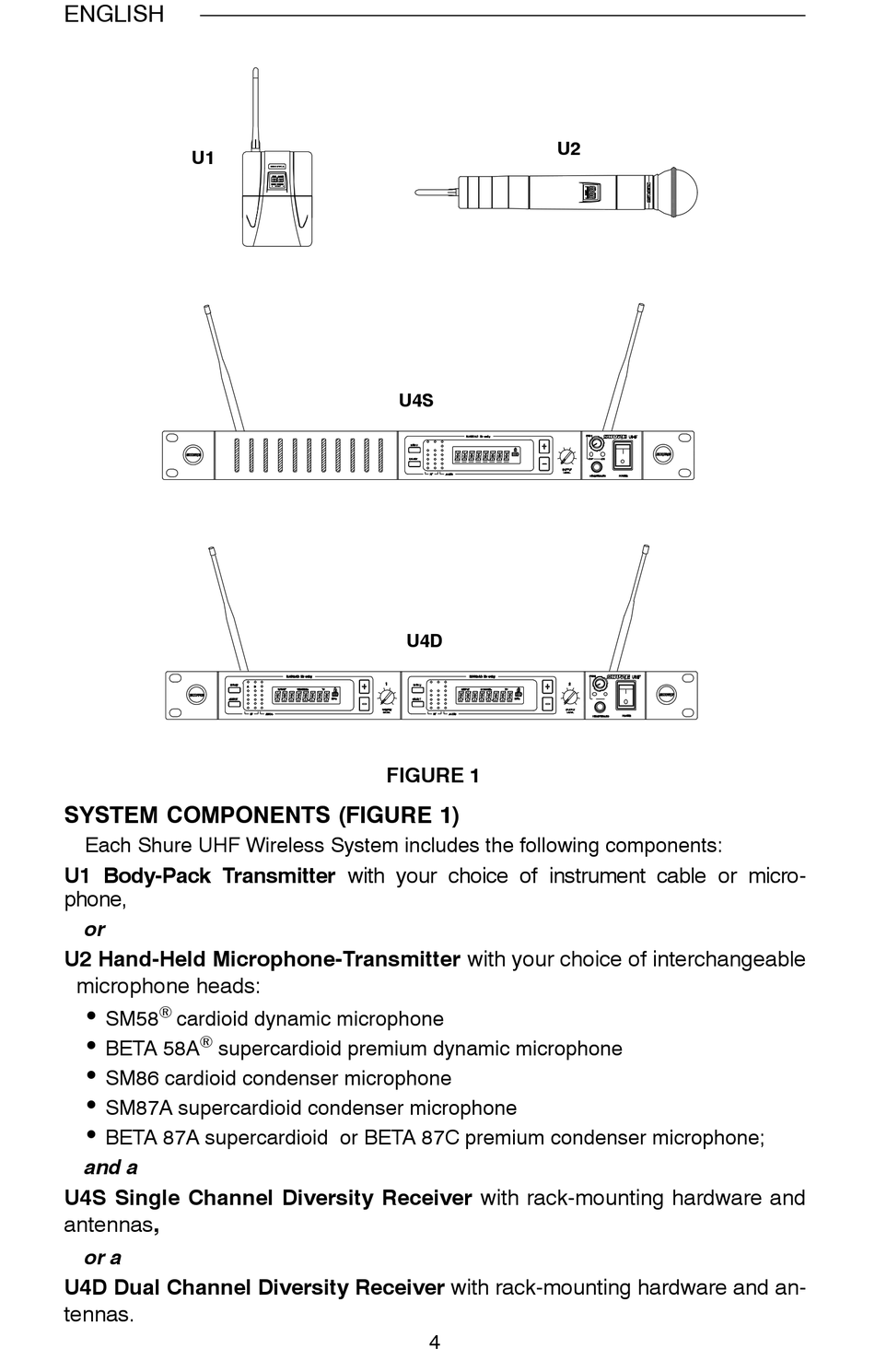

SYSTEM COMPONENTS (FIGURE 1)
Each Shure UHF Wireless System includes the following components:
U1 Body-Pack Transmitter with your choice of instrument cable or micro-
phone,
or
U2 Hand-Held Microphone-Transmitter with your choice of interchangeable
microphone heads:
•

SM58 cardioid dynamic microphone
•

BETA 58A supercardioid premium dynamic microphone
•
SM86 cardioid condenser microphone
•
SM87A supercardioid condenser microphone
•
BETA 87A supercardioid or BETA 87C premium condenser microphone;
and a
U4S Single Channel Diversity Receiver with rack-mounting hardware and
antennas,
or a
U4D Dual Channel Diversity Receiver with rack-mounting hardware and an-
tennas.
U4S
U4D
FIGURE 1
4
U2
