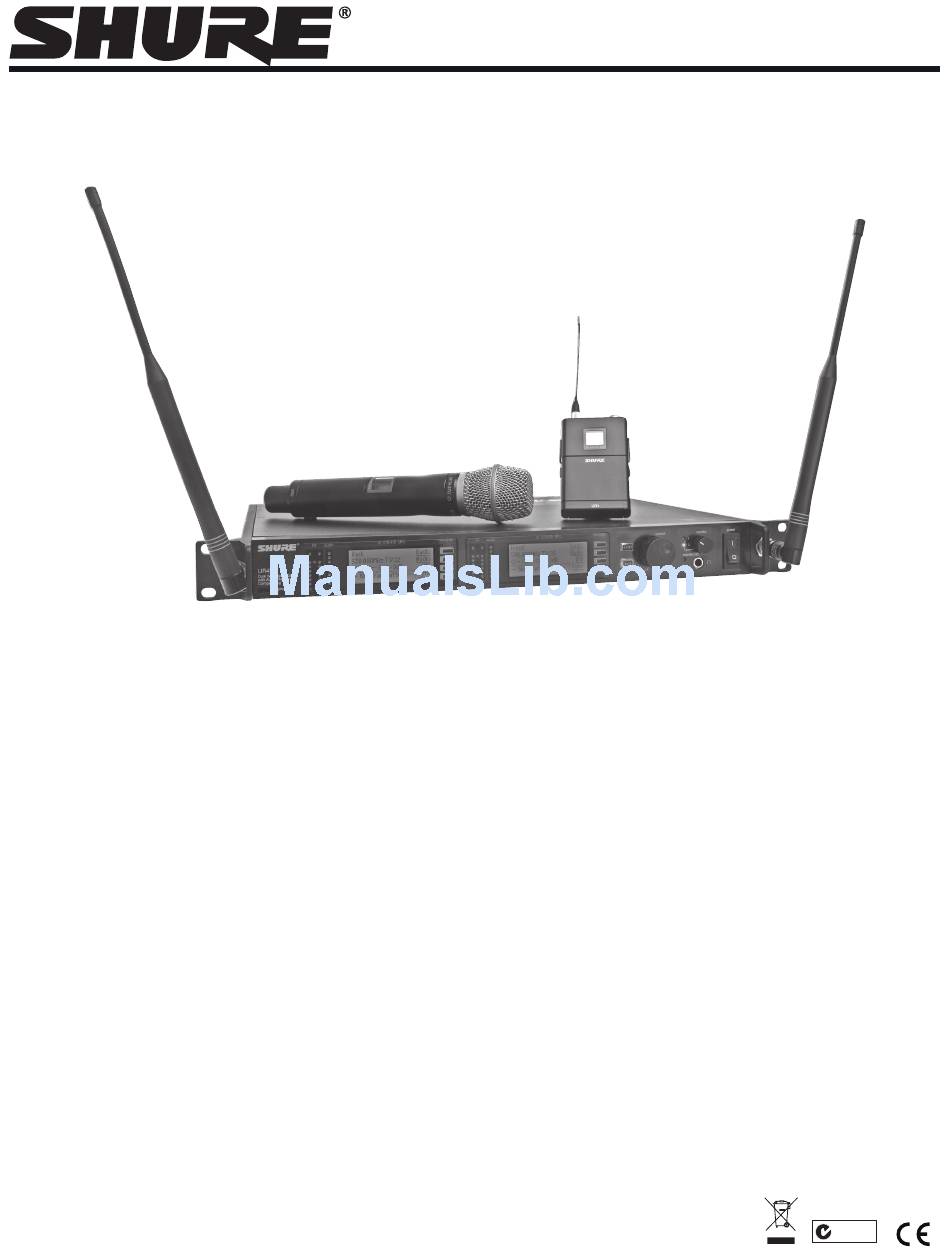

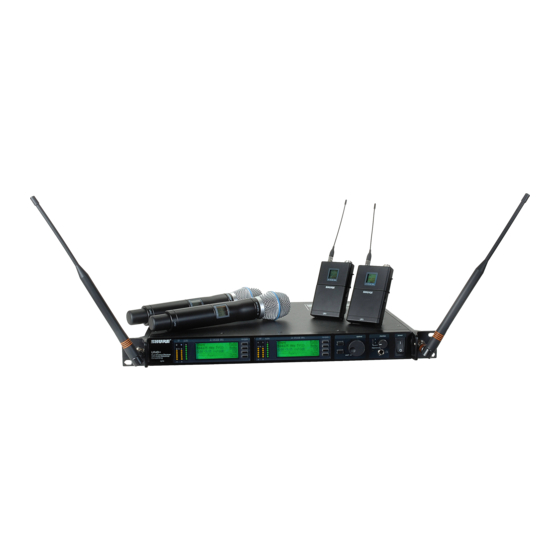

Model UHF-R
Wireless Systems User Guide
®
Model UHF-R
Wireless Systems User Guide
®
UR1M Micro bodyPack Transmitter
©2010 Shure Incorporated
27HK14492 (Rev. 1)
Printed in U.S.A.
N108

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHF-R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shure UHF-R

Summary of Contents for Shure UHF-R

  • Page 1 Model UHF-R Wireless Systems User Guide ® Model UHF-R Wireless Systems User Guide ® UR1M Micro bodyPack Transmitter ©2010 Shure Incorporated 27HK14492 (Rev. 1) Printed in U.S.A. N108...

  • Page 2: Important Safety Instructions

    Shure UHF-R Wireless ! IMPORTANT SAFETY INSTRUCTIONS ! READ these instructions. USE only with a cart, stand, tripod, bracket, or table KEEP these instructions. speci ed by the manufacturer, or sold with the HEED all warnings. apparatus. When a cart is used, use caution when FOLLOW all instructions.

  • Page 3: Table Of Contents

    Transmitter Batteries ..................................12 Transmitter Parameters ..................................13 Setting Transmitter Gain ..................................13 RF Safety Mode ....................................13 Automatic Transmitter Sync ................................14 Troubleshooting ....................................15 Specifications ....................................16 Replacement Parts and Accessories ..............................19 UHF-R Wireless System Compatibility Guide ........................... 21...

  • Page 4: Feature Overview

    The system’s band and frequency range are identified on the face of the receiver and transmitter. For example, “H4 518–578 MHz.” For information on bands available in your area, consult your local dealer or phone Shure. More information is also available at Shure’s website (www.shure.com).

  • Page 5: System Components

    Two RF Distribution Cables UR4S+ or UR4D+ Receiver (UR4D+ pictured) Two 1/2 Wave Antennas IEC Power Cable Shure’s Wireless Workbench Software 2 Antenna hole plugs 4 Rack Mount Screws with Washers IEC Power Extension Cable AA or AAA Batteries Transmitter Carrying Case Ethernet Network Cable with “Ruggedized”...

  • Page 6: Receiver Controls And Connectors

    Shure UHF-R Wireless Receiver Controls and Connectors Audio XX YYY-ZZZ MHz Navigate POWER Monitor Control ENTER UR4S+ push Wireless Receiver Monitor Clip with Audio Reference Conpanding EXIT push sync receiver outputs networking antenna B in antenna A in RF A out...

  • Page 7: Receiver Lcd Interface

    After changing a parameter, the ENTER button flashes. item you want to select. Press it to save the value. Cursor Control Radio SHURE Push the Control wheel to move Audio 524-025 MHz TV: 32 the cursor to the next item.

  • Page 8: Connecting Multiple Receivers To The Rf Distribution Ports

    Shure UHF-R Wireless Network Parameters Device ID Assists in identifying receivers through the Wireless Workbench NOTE: Software (has no effect on network identification). • The receiver reboots after you press ENTER to accept Menu: Util > Network network parameter changes 1. Push the Control wheel to move the cursor to the...

  • Page 9: Automatic Frequency Selection

    English Automatic Frequency Selection Follow these steps to use the channel scan and group scan features. Before you begin... • Install the receivers in the location where they will be used and power them on. • Mute all inputs on mixing devices connected to receivers. • Turn off all bodypack or handheld transmitters for the systems you are setting up.

  • Page 10: Networking Receivers

    NOTE: Dual receivers use a single IP address, which may be set through either LCD interface. Existing UHF Network Installations Both Shure’s UHF-R receivers and legacy UHF receivers can be networked to the same PC and accessed using the latest Wireless Workbench software.

  • Page 11: Handheld And Bodypack Transmitter Controls And Connectors

    English Handheld and Bodypack Transmitter Controls and Connectors » ¶ º ¾ µ · ¿ ´ ²  Interchangeable microphone head (BETA 87A pictured).  LCD Panel.  Power Switch.  Control buttons for LCD interface. ¿  Infrared (IR) port. See page 14. ´...

  • Page 12: Transmitter Lcd Interface

    Shure UHF-R Wireless Transmitter LCD Interface Up Arrow Key. Scroll up or increase a value. enter Key. Press to select parameters exit Key. Move to the left, or and accept the selected value. exit without saving changes. 524.025 MHz Main Menu Down Arrow Key.

  • Page 13: Transmitter Parameters

    Gain (Gain). Adjusts audio level from –10 dB to +20 dB 524.025MHZ Gain +20dB Sensitivity (Sens) (bodypack only). SHURE INC. Sets audio input to +15 dB, 0 dB, or –10 dB recommended for guitars. Name Display. 12-digit ASCII. Use the following key combinations to access additional features and parameters:...

  • Page 14: Automatic Transmitter Sync

    Shure UHF-R Wireless Automatic Transmitter Sync This feature automatically updates a bodypack or handheld transmitter’s group and channel settings to match those of a selected receiver. To perform a transmitter sync... 1. Open the transmitter battery cover to display the infrared (IR) port.

  • Page 15: Troubleshooting

    English Troubleshooting Issue See Solution... No sound Power, Cables, or RF Faint Sound or Distortion Gain Lack of range, unwanted noise bursts, or drop outs Cannot turn transmitter off or change frequency settings, or can’t program receiver Interface Locks Excessive hum or buzzing Ground lift Power Radio Frequency (RF)

  • Page 16: Specifications

    Shure UHF-R Wireless Specifications Signal Polarity Positive pressure on microphone diaphragm (or positive Frequency Range and Transmitter Output Power voltage applied to tip of WA302 phone plug) produces positive voltage on XLR output pin 2 with respect to XLR pin 3 and on...
  • Page 17 English Receiver Input Wiring for TA4F: MICROPHONE TA4F TA4M Antenna Power ELEMENT Connector Connector UR1 MIC JACK BOARD Connector Type: Actual Impedance: Ω Nominal Input Level: –95 to –30 dBm 100-240 VAC,50/60 Hz Active Load Maximum Input –20 dBm 240 VAC, + 10%, Audio 50/60 Hz Level:...
  • Page 18 Shure UHF-R Wireless 1/4" Phone 1/4" Monitor/headphone...

  • Page 19: Replacement Parts And Accessories

    • Antennas and receivers must be from the same frequency band. • The supplied 1/2 wave antennas can be remotely mounted or mounted directly to the UA845. • Antennas and cables for use with the UA845 can also be used with stand-alone UHF-R receivers. Passive Antenna/Splitter Combiner Kit...

  • Page 20: Licensing Information

    Note: To fully interact with the Receiver, it is recommended to upgrade the UR4 firmware to 1.50 or higher and Shure Wireless Workbench to 5.0.1 or higher. LICENSING INFORMATION: Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements.

  • Page 21: Uhf-R Wireless System Compatibility Guide

    SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BANDS G1HK, H4HK, J5HK, L3HK, Q5HK G1HK FREQUENCY BAND (470.125 - 529.875 MHz) Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10 470.525 529.500 471.250 470.750...
  • Page 22 G1HK FREQUENCY BAND (470.125 - 529.875 MHz) Channel Group Group Group Group Group Group Group Group Group Group Group 21 478.100 486.100 494.100 502.100 510.100 518.100 470.250 470.125 470.375 510.375 471.350 479.350 487.350 495.350 503.350 511.350 519.350 470.875 470.750 471.000 511.200 471.975 479.975...
  • Page 23 H4HK FREQUENCY BAND (518 - 578 MHz) Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10 518.100 518.900 518.750 518.750 518.100 518.500 520.225 518.300 518.500 518.575 518.825 519.625 519.500 519.500 521.500...
  • Page 24 J5HK FREQUENCY BAND (578 - 638 MHz) Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10 578.375 578.375 578.500 578.500 578.225 578.225 578.775 580.000 589.375 581.050 579.400 579.100 579.250 579.250 578.975...
  • Page 25 L3HK FREQUENCY BAND (638 - 698 MHz) Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10 638.100 638.900 639.500 639.500 640.775 638.500 640.225 639.000 647.625 639.350 638.825 639.625 640.500 640.500 642.225...
  • Page 26 Q5HK FREQUENCY BAND (740 - 805.875 MHz) Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10 740.300 740.425 740.100 740.625 740.250 740.250 742.750 740.900 740.500 740.900 740.825 740.850 740.625 741.050 742.750...
  • Page 27 Q5HK FREQUENCY BAND (740 - 805.875 MHz) Channel Group 11 Group 12 Group 13 Group 14 Group 15 Group 16 Group 17 Group 18 Group 19 Group 20 741.100 740.700 741.100 790.100 790.100 790.250 790.300 790.350 790.400 791.475 741.900 741.100 741.500 791.050 791.575...
  • Page 28 Q5HK FREQUENCY BAND (740 - 805.875 MHz) Channel Group 21 Group 22 Group 23 Group 24 Group 25 Group 26 Group 27 Group 28 Group 29 790.925 742.750 742.100 750.100 758.100 766.100 774.100 782.225 790.100 791.400 744.625 742.925 750.925 758.925 766.925 774.925 782.650...
  • Page 29 Q5HK FREQUENCY BAND (740 - 805.875 MHz) Channel Group 30 Group 31 Group 32 Group 33 798.100 742.000 740.175 798.925 743.200 740.900 799.525 743.850 742.300 800.575 744.800 742.850 801.900 748.175 743.975 803.650 748.650 746.550 804.050 749.500 747.550 805.200 751.250 751.525 752.750 751.925 802.600...
  • Page 30 Europe, Middle East, Africa: United States, Canada, Latin Asia, Pacific: America, Caribbean: Shure Europe GmbH Shure Asia Limited Wannenäckestr. 28, Shure Incorporated 22/F, 625 King’s Road 74078 Heilbronn, Germany 5800 West Touhy Avenue North Point, Island East Niles, IL 60714-4608 USA...
