Replacing Tail Lamp/Turn/Backup Lamp Bulbs; Replacing High-Mount Brakelamp Bulbs - Ford 2000 Excursion Owner's Manual

Maintenance and care

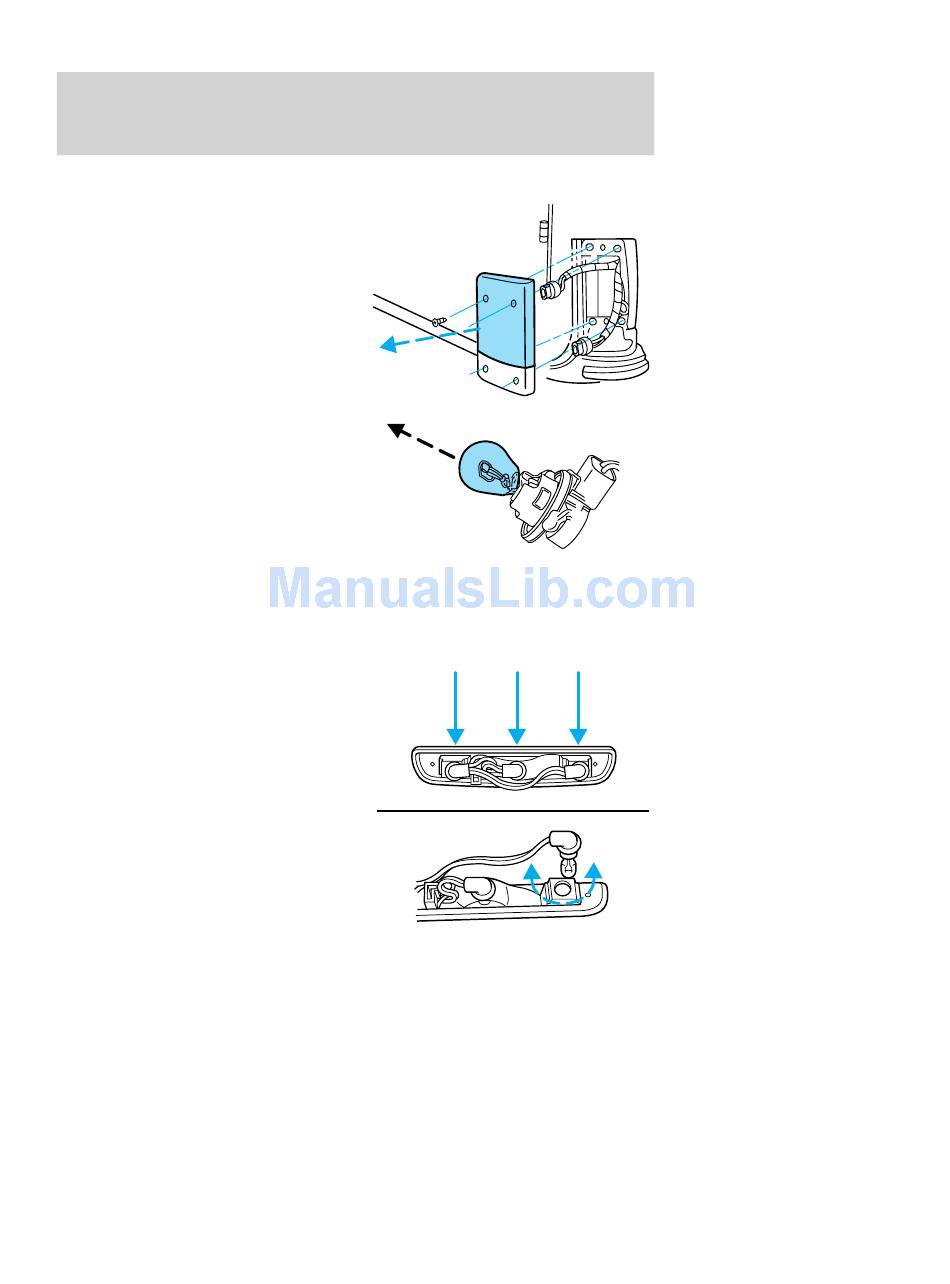

Replacing tail lamp/turn/backup lamp bulbs

The tail lamp/turn/backup lamp
bulbs are located in the same
portion of the tail lamp assembly,
one just below the other. Follow the
same steps to replace either bulb:
1. Remove the four screws and the
lamp assembly from vehicle.
2. Rotate bulb socket
counterclockwise about 1 ⁄ turn and
4
remove from lamp assembly.
3. Carefully pull the bulb straight
out of the socket and push in the
new bulb.
4. Install the bulb socket in lamp
assembly by turning clockwise.
5. Install the lamp assembly and
secure with four screws.

Replacing high-mount brakelamp bulbs

To remove the brakelamp assembly:
1. Remove the two screws and lamp
assembly from vehicle.
2. Remove the bulb socket from
lamp assembly by rotating it 45
degrees.
3. Carefully pull bulb straight out of
socket and push in the new bulb.
197
