Welcome

Introduction

The AdderLink AV range of digital signage extenders are designed and built
specifically for use wherever high quality video and sound must be faithfully
reproduced at distant locations. Mindful of the need for variety and flexibility
to suit disparate installations, Adder have created a family of products that can
fulfil your current requirements and be easily expanded at any future stage.

Standard AdderLink AV models

There are three different AdderLink AV transmitter and receiver module types
available, the choice of each depends upon the quantity and types of devices
that need to be driven:
AdderLink AV100 pair
The AdderLink AV100 package provides a single transmitter and single receiver
capable of directly supporting two remote display and speaker sets. The
transmitter can additionally support a local monitor and speaker set located
adjacent to the source system. Expansion is made possible by connecting
further AV100 transmitters to the original module, each supporting their own
AV100 receiver modules. The AV100 transmitter and
receiver modules are also available separately and are
known as the AV100T and AV100R respectively.
100
PC
VIDEO
AUDIO
TRANSMITTER
POWER

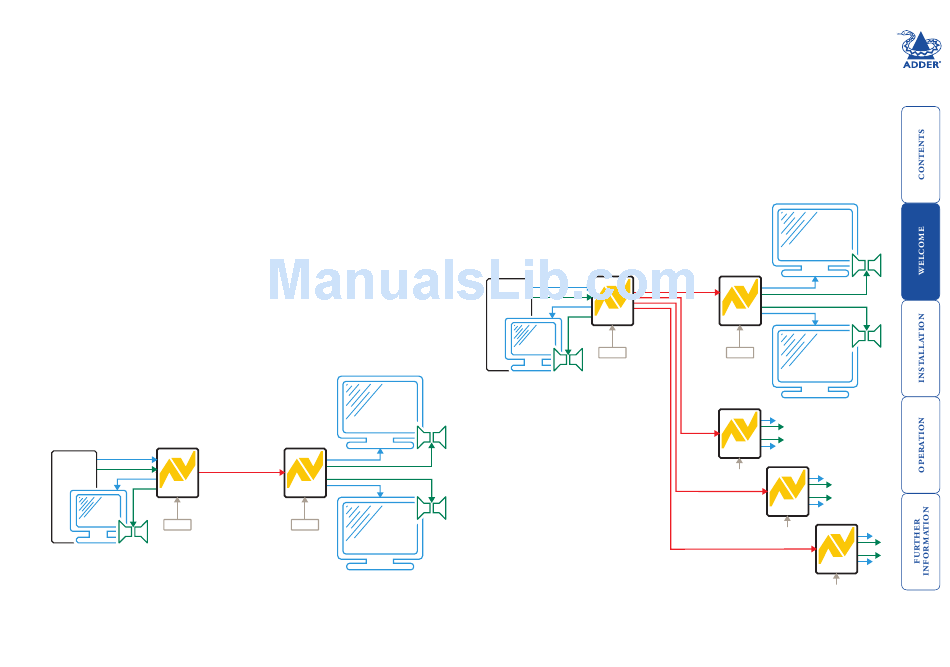

AdderLink AV100 transmitter and receiver pair driving two remote
displays and speakers in addition to a local monitor and speaker set
100
CATx LINK
UP TO 300m
RECEIVER
POWER
AdderLink AV104 and AV101 (or AV100)
The AdderLink AV104 transmitter and multiple AV101 modules are designed
to provide potentially enormous expansion possibilities from the outset. Each
AV104 transmitter is capable of directly feeding up to four AV101 receivers.
Each receiver supports two remote display and speakers sets, but additionally
can also drive a further three receivers and their
respective displays/speakers. Additional expansion is
also possible by connecting further AV104 transmitters
to the original module, each supporting their own
multiple AV101 receiver modules.
104
PC
VIDEO
CATx LINKS UP TO 300m
AUDIO
TRANSMITTER
POWER
AdderLink AV104 transmitter and four AV101
(or AV100) receivers driving up to eight remote
displays and speakers in addition to a local
monitor and speaker set
101
RECEIVER
POWER
101
RECEIVER
101
RECEIVER
101
RECEIVER
