ADDERLink LPV154
Line powered video distribution up to 150 meters
PRODUCT IN BRIEF
The ADDERLink LPV delivers HD
quality digital signage video via CATx
cable over distances of 150 meters
This digital signage extender is
possibly the easiest to install point-
to-point extender available today. By
transmitting the power to the receiver
via the cable it removes the need for
extra power supplies and sockets at
the screen
A 4-way transmitter is available for
point-to-multipoint transmissions
FEATURES
Video performance
Full HD 1080p, 1080i & 720p
Distances up to 150m (500ft)
Line power for simplicity
To help reduce cable clutter, the
ADDERLink LPV150 has been designed
to be powered by a USB port on your
computer. Furthermore, this power is
also transmitted alongside the video over
the CATx cable, in turn powering your
receiver unit.

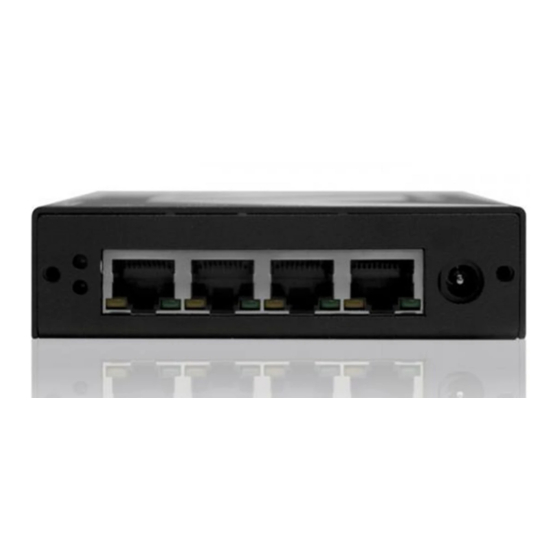

4-way transmitter for point-to-multipoint
The ALPV154T is able to take the same
HD input and send it to 4 different
screens connected via the ALPV150R
receivers. There is a feed through port on
the unit to allow a local display or you can
cascade another ALAV154T so you can
supply 8 screens.
Video sharpness adjustment
The remote module has a video
adjustment screw to control picture
sharpness on the display screen.
Absolute simplicity
Getting into professional digital signage
has never been so easy. Simply plug
the transmitter's VGA port into your
computer and plug in the USB port, then
plug the receiver unit into your screen.
Finally, connect the two units together
Digital Signage
Professional Video Extender
High density, small form factor
line powered video distribution
ALPV150 Pair (single screen)
with a length of CATx cable, and you're
finished. Now start delivering your
message to customers, clients, staff or
whoever you wish.
Advanced EDID cloning
The ADDERLink LPV enables the user
to clone the EDID (Extended Display
Identification Data) from a display or use
a default EDID. This approach enables the
widest possible compatibility whilst also
providing a plug and play experience for
most applications.
On/off control via RS232
The LPV154T unit is fitted with a serial
port that enables you to remotely switch
video on and off. This feature provides a
simple way of switching remote screens
on and off as most will go into standby
when the video signal is removed.
Rack mountable
The LPV154T units are rack mountable
at high density using the AdderLink rack
mount chassis.
Fit and forget
Adder digital signage products are the
professional choice because they give
you the ability to deliver, fit and forget
installations. The LPV is no exception.
