Connections at the REMOTE module

When using the full capabilities of the X-Series USB extender modules, the
following connections are made to the REMOTE module:
• Video monitor - see below
• USB devices - see below
Audio (microphone and speakers)
•
• Link connection(s)
• Power supply
Cables can be attached in any order, not necessarily the order shown in this
section.

Video monitor

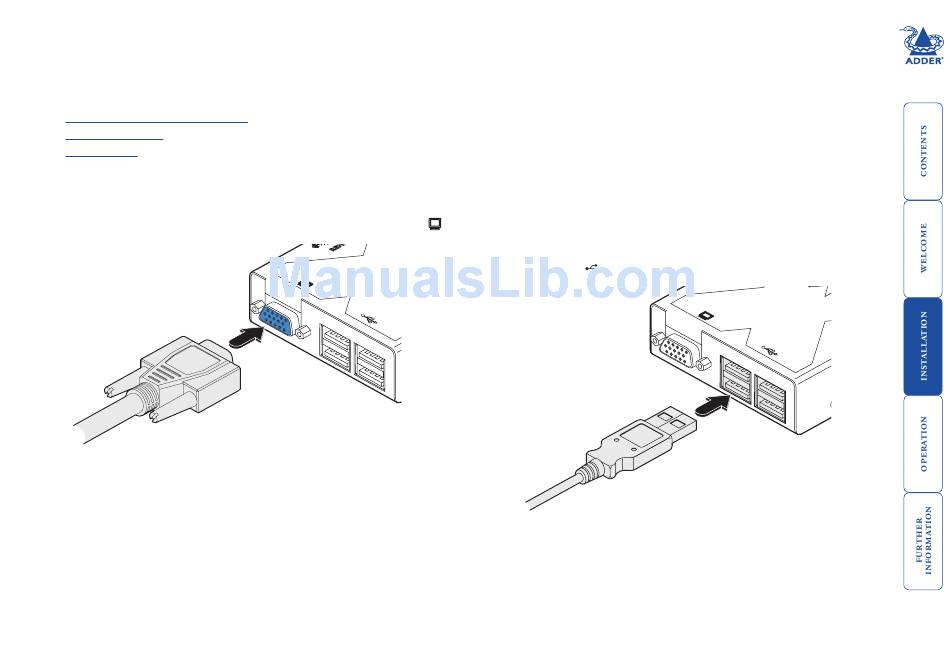

1 Attach the lead from the monitor to the REMOTE module socket marked
USB devices
. The REMOTE module contains a USB hub that provides four separate USB 1.1
channels.
1 Attach the leads from up to four USB devices to the REMOTE module
sockets marked .
