About the Adaptec RAID 71685

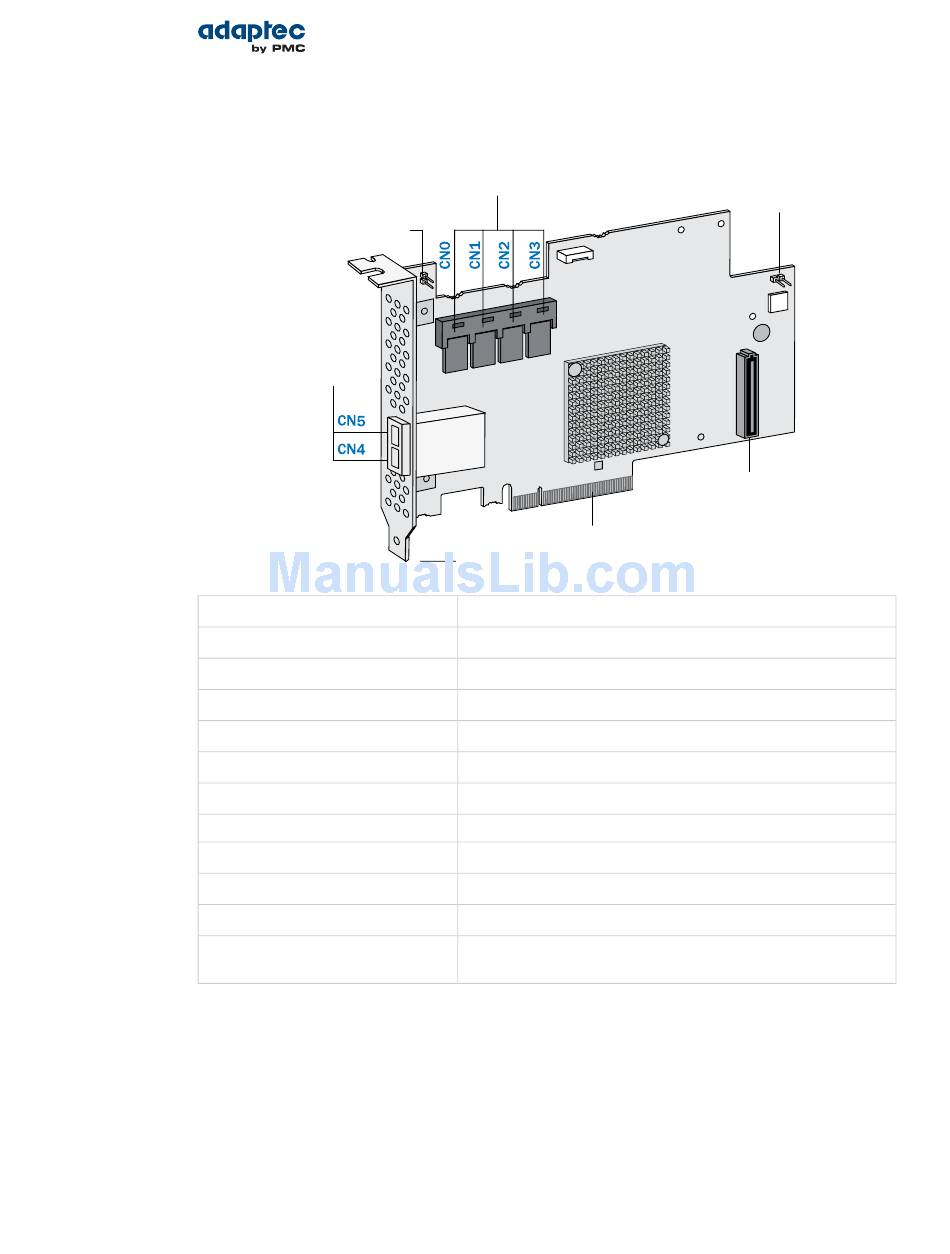

The Adaptec RAID 71685 is a SAS RAID controller with these features:
HDA mode
connector
2 external
mini-SAS HD
connectors
Form Factor
Bus compatibility
PCIe bus width
Data transfer rate
Phys (Unified Serial Ports)
Standard cache
Connectors, internal
Connectors, external
Maximum number of disk drives
Enclosure Support
Onboard speaker
Zero Maintenance Cache Protection
Module
Proprietary and Confidential to PMC-Sierra, Inc.
Document No.: CDP-00277-01-A Rev. A, Issue:
Serial Attached SCSI RAID Controllers Installation and User's Guide
4 internal mini-SAS HD connectors
PCIe x8 connector
Mounting bracket
Full Height, Half Length
PCIe Gen3
x8
6 Gb/s per port
24
1024 MB DDR3
4 mini-SAS HD x4 (SFF-8643)
2 mini-SAS HD x4 (SFF-8644)
24 direct-attached (or up to 256 with expanders)
IBPI and SGPIO (Serial General Purpose Input/Output)
Yes
Adaptec Flash Backup Module AFM-700 (optional, sold separately)
Ext. Alarm
connector
Daughterboard
connector
