I
NTRODUCTION

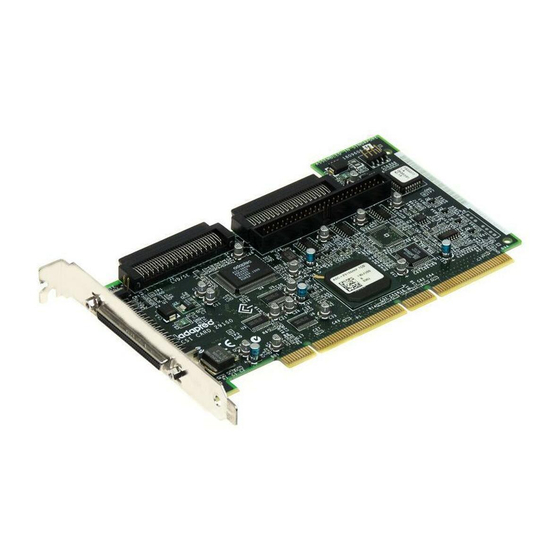

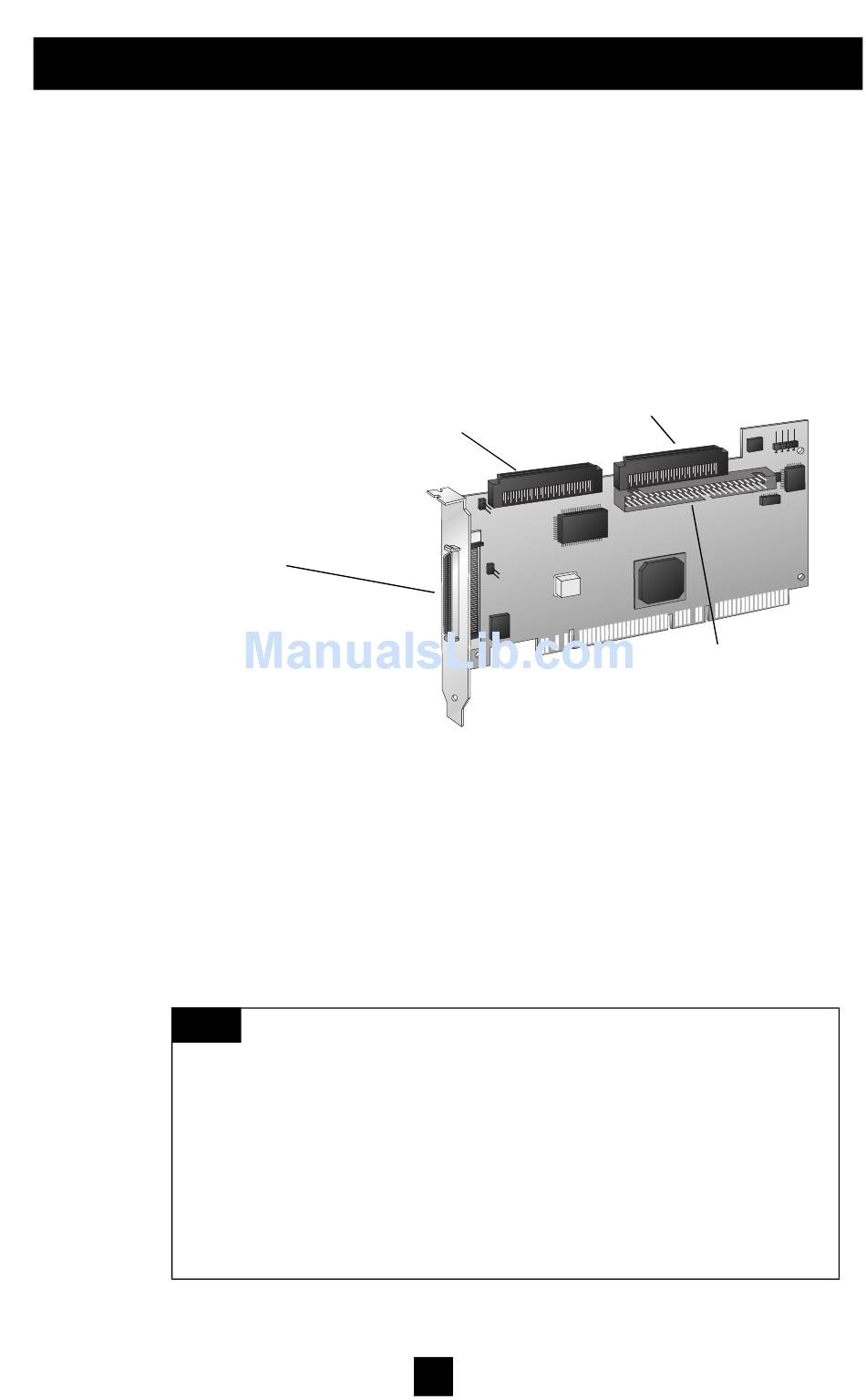

The Adaptec SCSI Card 29160 Ultra160 SCSI controller enables
you to connect up to 15 SCSI devices—such as hard disk drives,
scanners, and CD-ROM drives—to any Intel-based computer
with 32-bit or 64-bit PCI expansion slots. You can connect newer
Ultra160 and Ultra2 SCSI devices to the two 68-pin Low Voltage
Differential/Single-Ended (LVD/SE) connectors. You can also
connect legacy SCSI devices to the 68-pin and 50-pin internal
Single-Ended (SE) connectors.
68-pin External LVD/SE
Connector
Although the Adaptec SCSI Card 29160 is a 64-bit PCI card, it
also works in a 32-bit PCI slot. When installed in a 32-bit PCI
slot, the card automatically runs in the slower 32-bit mode.
This installation guide explains how to
•
Install the Adaptec SCSI Card 29160
•
Set up SCSI devices
•
Connect SCSI devices
N
OTE
system original equipment manufacturers (OEMs). Use this
product with the original computer system designed by the
OEM; each OEM tailors their product specifications for their
specific design needs. Adaptec assumes no responsibility for
incompatibility or consequential damages if you use the
Adaptec SCSI Card 29160 in another computer system. All
product support and services are provided by the OEM.
68-pin Internal LVD/SE
Connector
The Adaptec SCSI Card 29160 is designed for computer
1
68-pin Internal SE
Connector
50-pin Internal SE
Connector

Advertisement

loading
Need help?

Need help?

Do you have a question about the 29160 and is the answer not in the manual?

Questions and answers

Related Manuals for Adaptec 29160

Summary of Contents for Adaptec 29160

  • Page 1 Connector 50-pin Internal SE Connector Although the Adaptec SCSI Card 29160 is a 64-bit PCI card, it also works in a 32-bit PCI slot. When installed in a 32-bit PCI slot, the card automatically runs in the slower 32-bit mode.
  • Page 2 Ultra160 and Ultra2 SCSI devices by electronically isolating the primary LVD/SE segment from the secondary SE segment on the SCSI bus. This allows the Adaptec SCSI Card 29160 to support newer Ultra160 and Ultra2 SCSI devices at speeds up to 160 MBytes/sec on the primary LVD/SE segment while at the same time supporting Ultra (legacy) devices at speeds up to 40 MBytes/sec.
  • Page 3 SCSI C 29160 NSTALLING DAPTEC Discharge any static electricity build-up before handling the SCSI card by touching a grounded metal object (like the exposed metal parts on the back of your computer). ARNING Turn OFF power to the computer and disconnect the power cord.

  • Page 4: Setting U Pscsi Devices

    Since setup can vary from device to device, always refer to the device’s documentation for specific instructions. Below are some guidelines for setting SCSI IDs and termination on your devices. Refer to the Adaptec SCSI Card 29160 User’s Ref- erence for more information on these topics.

  • Page 5: Terminate The Ends

    SCSI ID number ranging from 0 to 15. No two devices can have the same number. The Adaptec SCSI Card 29160 is preset to SCSI ID 7 and should not be changed. If your computer will boot from a SCSI hard disk, make sure the SCSI ID of that hard disk is set to 0.
  • Page 6 Locate a 68-pin internal LVD SCSI cable, which may have either twisted wires as shown below or flat, laminated wires. Non-terminated end Terminated end Plug the non-terminated end of the cable to the internal LVD/SE connector. Plug the internal Ultra2 or Ultra160 SCSI devices to the other cable connectors, starting with the connector at the terminated end of the cable.
  • Page 7 Locate a 68-pin internal Wide SCSI cable. Plug one end of the cable to the Wide SCSI connector on the Adaptec SCSI Card 29160. Plug the other end of the cable to a terminated Ultra/Fast Wide SCSI device.
  • Page 8 Locate a 50-pin internal Ultra Narrow SCSI cable. Plug one end of the cable to the 50-pin internal SE Narrow SCSI connector on the Adaptec SCSI Card 29160. Plug the other end of the cable to a terminated Ultra/Fast Narrow SCSI device.

  • Page 9: Connecting External Scsi Devices

    Ultra SCSI devices, the data transfer speed of the Ultra160 and Ultra2 SCSI devices will drop to the speed of the older devices. (See Bus Segments on the Adaptec SCSI Card 29160 on page 2.) Follow these steps to connect the external devices: Connect one end of the external LVD SCSI cable to the external LVD/SE connector on the Adaptec SCSI Card 29160.
  • Page 10 Connect other external devices by cabling each device to the pre- vious one, as shown below. Terminate only the device at the end of the chain. Not terminated Terminated Connect power cables to all external devices and to the computer.

  • Page 11: Troubleshooting

    Adaptec SCSI Card 29160. Pre-loaded Adaptec Drivers If the Adaptec SCSI Card 29160 was included as part of a com- puter system you purchased, then the appropriate Adaptec driver has already been pre-installed by the computer manufacturer and you do not need to install it.
  • Page 12 Copyright © 1999 Adaptec, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopy- ing, recording or otherwise, without the prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.
  • Page 13 Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matérial brouilleur du Canada. Japanese Compliance We move the information that moves your world. ™ © 1999 Adaptec, Inc. All rights reserved. Printed in Singapore Stock No.: 512462-03, Rev. A KL 10/99 (SRC: 512462-00, Ver. AA)
  • Page 14 NSTALLATION (OEM) UIDE SCSI C 29160 DAPTEC 160 SCSI C LTRA ONTROLLER...
