medTester 5000C
Automated Biomedical Equipment
Test System
Field Upgrade Installation
Instructions
PN 2245628
April 2005
 2005 Fluke Corporation, All rights reserved. Printed in USA
All product names are trademarks of their respective companies

Advertisement

loading

Summary of Contents for Fluke Network Device MedTester 5000C

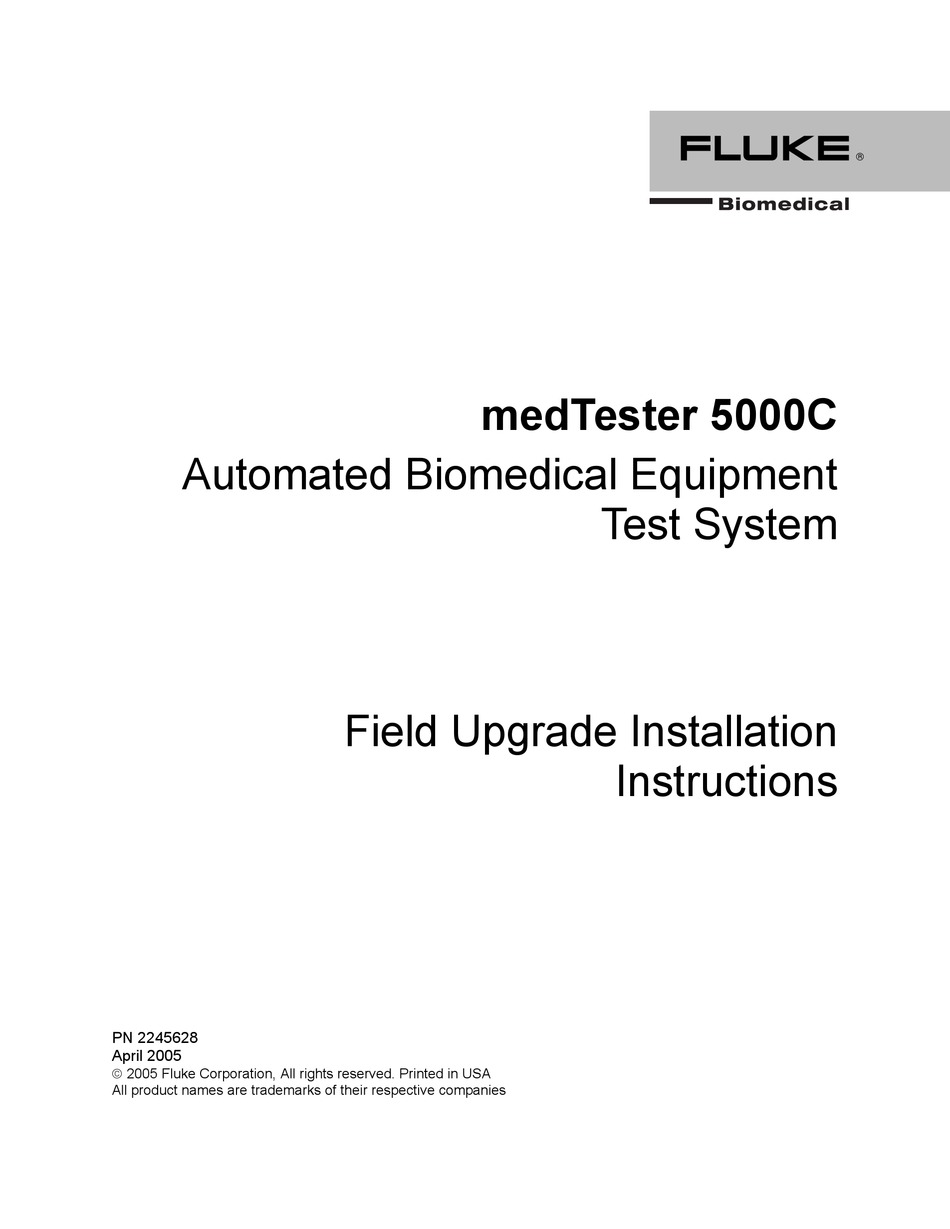

  • Page 1 5000C Automated Biomedical Equipment Test System Field Upgrade Installation Instructions PN 2245628 April 2005  2005 Fluke Corporation, All rights reserved. Printed in USA All product names are trademarks of their respective companies...
  • Page 3: Before You Begin

    You have received all of the parts necessary to perform the installation yourself and to enable individual medTester 5000C modules. If you have already had Fluke Biomedical upgrade your medTester or install modules at the factory, you are receiving the module installation disks in the event that you need to reinstall the modules later.
  • Page 4: Module Identification

    M E D T E S T E R 5 0 0 0 C F I E L D NOTE: IMPORTANT When upgrading your 5000C firmware, all memory for test records and checklists will be erased. Process all current medTester test records first. For example, upload them to your compatible CMMS or print them.
  • Page 5: Firmware Upgrade

    M E D T E S T E R 5 0 0 0 C F I E L D Module and Upgrade Parts Check that you have received the following parts with your module or upgrade: Firmware Upgrade • 2 IC RAM chips (40-pin devices, labeled U20 and U21) Modules 2, 3, 5, 6, 8, 9, 10, 11, 12, 13, and 14 •...
  • Page 6 If your computer has a 25-pin serial port: use a 25-pin female to 25-pin female null-modem cable (Fluke Biomedical part no. 2392186). If your computer has a 9 pin serial port: use a 25-pin female to 9-pin female, null-modem cable (Fluke Biomedical part no.
  • Page 7 M E D T E S T E R 5 0 0 0 C F I E L D IC Removal and Installation Description There are two types of IC sockets which you may encounter—one that is plain, and one that has a lever handle. ICs are removed or installed as follows: Plain Socket IC Removal •...
  • Page 8 M E D T E S T E R 5 0 0 0 C F I E L D IC Installation Procedure This section describes the procedure you can use to install ICs. It includes instructions for the disassembly of the medTester 5000, replacement and installation of ICs, testing of your IC installation, and reassembly.
  • Page 9: Test The Installation

    M E D T E S T E R 5 0 0 0 C F I E L D Install Integrated Circuits For a medTester 5000C Firmware Upgrade, remove IC U20 and U21 on the digital PCB, and install the new U20 and U21 (40-pin devices with labels).
  • Page 10 M E D T E S T E R 5 0 0 0 C F I E L D Fold the case halves back together. Attach the top case to the bottom case with the nine (9) screws and lockwashers. These are the stainless steel screws.
  • Page 11 M E D T E S T E R 5 0 0 0 C F I E L D Run the computer in DOS mode (command prompt). Note If running Windows 95 or 98, with the mouse you can click and hold the Start button, then select Programs and MS-DOS Prompt.
  • Page 12 M E D T E S T E R 5 0 0 0 C F I E L D To install more than one module, repeat steps seven (7) through nine (9) for each module which has an installation disk. Install them in numerical order.
