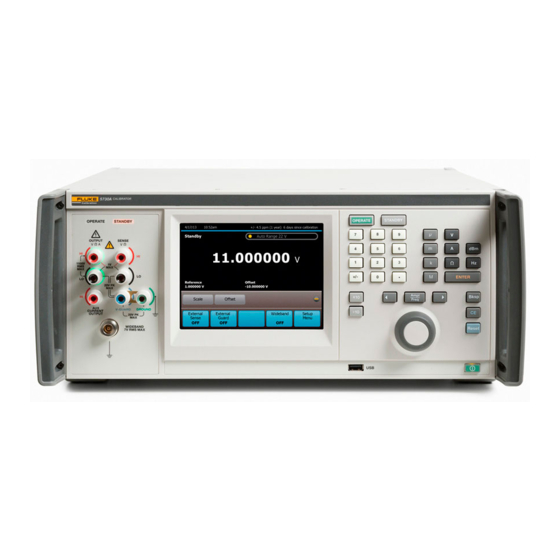

Fluke 5730A Sales Manual
Multifunction calibrator
Hide thumbs
Also See for 5730A:
- Operator's manual (220 pages) ,
- Calibration manual (104 pages) ,
- Getting started manual (56 pages)
Subscribe to Our Youtube Channel
Related Manuals for Fluke 5730A
Summary of Contents for Fluke 5730A
-

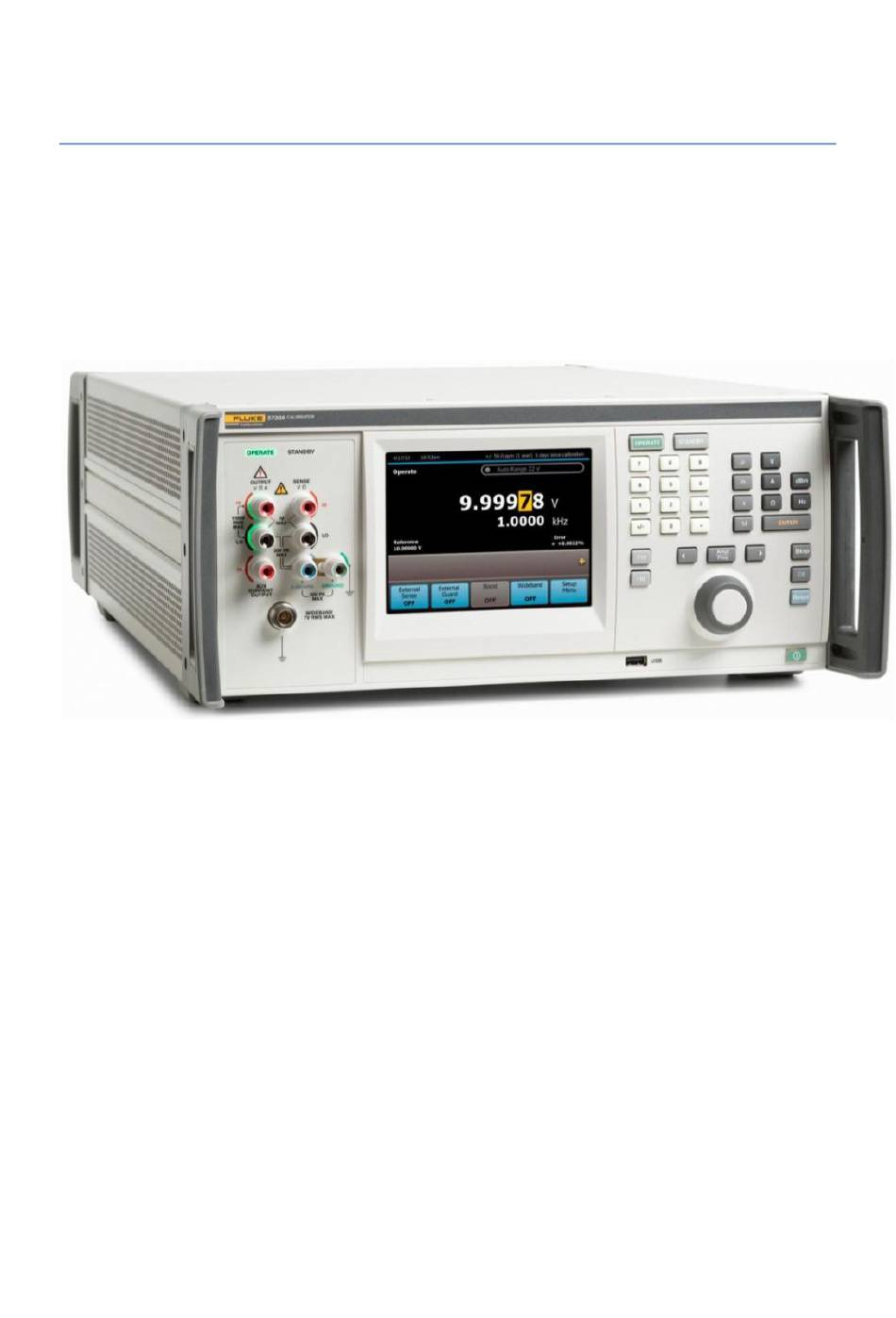

Page 1: 5730A Multifunction Calibrator
Sales Guide 5730A Multifunction Calibrator The new GOLD standard in electrical calibration... -
Page 2: Table Of Contents
5730A Sales and Demo Guide Contents 5730A MULTIFUNCTION CALIBRATOR ......................1 THE NEW GOLD STANDARD IN ELECTRICAL CALIBRATION ..............1 OBJECTIVE ..............................3 INTRODUCTION ............................. 3 PRODUCT POSITIONING ..........................3 VALUE PROPOSITION ............................. 4 FEATURES AND BENEFITS ..........................4 TARGET CUSTOMERS ............................. 5 WHO DO I CALL.............................. -
Page 3: Objective
3. Product Positioning The 5730A is positioned in terms of price and performance above existing Fluke Calibration and competitor Multifunction Calibrators. It is capable of calibrating digital multimeters up to 8.5 digits. It sources DC/AC voltage, DC/AC current, and resistance at better accuracy specifications than the Fluke Calibration 5720A Multifunction Calibrator, which is widely regarded as the most accurate Multifunction Calibrator in the world. -
Page 4: Value Proposition
All of these advances come together in the 5730A to save you time and money while leveraging your existing procedure and programs through emulation of the industry standard 5700A and 5720A. -
Page 5: Target Customers
DC/LF calibrations. Generally, the largest workload is 6.5 digit DMMs, although DMMs up to 8.5 digits can be calibrated with additional standards. The 5730A offers the best accuracy specifications of any Multifunction Calibrator, making it a necessary instrument for individuals who require the very best performance in DCLF calibration. -
Page 6: Typical Applications
5730A Sales and Demo Guide 8. Typical Applications The following provides some typical and non-typical applications where the 5730A can be utilized. Calibration of long-scale DMMs (typical units) o Fluke 8508A, 8845A, 8846A, 8842A, 8840A o Tektronix DMM4040, DMM4050 o Agilent 3458A, 34401A, 34410A, 34411A... -
Page 7: Key Features
5730A Sales and Demo Guide Key features 10.1. Features at-a-glance (left side) Fluke Corporation Company Confidential Page 7 of 28... -
Page 8: Features At-A-Glance (Right Side)
5730A Sales and Demo Guide 10.2. Features at-a-glance (right side) 6.5” VGA Touchscreen Display • All operations other than Alpha Numeric Entry • All Menu operations • Spec Display (%, PPM, dB) Multiplier Function • Auto Meter Error calculations •... -
Page 9: Touchscreen Display Operation
• Terminal One high level rule to remember with the 5730A touchscreen is this: If it’s yellow, it’s touchable. There are a few exceptions, but for the most part, any font in yellow is a button. This holds for many of the tables and options that pop up when you hit a “+”... - Page 10 5730A Sales and Demo Guide Setup Menu Easy to Edit “Breadcrumb” Touching an • Move up 1 or existing value will • multiple levels open a blank by simply space to input touching the new numbers Menu level Date is password •...
-
Page 11: Onnection To 5725A & 52120A Amplifiers
When connected to the 52120A or 5725A, the output screen on the 5730A displays the current level output from the amplifier (i.e. you can program in 120 A into 5730A and the output will go to 120 A). The 52120A-specific cable connecting the amplifier to the calibrator allows for two way, or “closed loop,”... -
Page 12: Wideband Rf Option
The 30 MHz Wideband option can be purchased to expand the AC Frequency and RF calibration capability of the 5730A. The Wideband option increases the addressable workload of the calibrator. Most customers interested in the Wideband option are the Military, Prime Contractors who work with Military systems, and large 3 Party Calibration labs that own Military contracts. - Page 13 5730A Sales and Demo Guide 5700A 5720A 5730A User Interface / Display / Ergonomics 6.5" Touchscreen Display Visual Connection Management (VCM) Terminals Soft Touch Ergonomical Handles Local Language Support Connectivity Copper Alloy Terminals ...
- Page 14 Depth: 64.8 cm (25.5 in), overal; 59.4 cm (23.4 in), rack depth Weight (w/o options) 27 kg (62 lb) 5730A accuracy specifications include stability, temperature coefficient, linearity, line and load regulation, and the traceability of the external Absolute accuracy definition standards used for calibration.
-
Page 15: Price Vs. Performance
5730A Sales and Demo Guide Competitive Comparisons Front Wideband Artifact USB control RS232 Ethernet Boost Make/Model Display IEEE488 Panel Price Specs Calibration port control port port Current Protection Fluke 5730A/03 300 μV - 3.5 V, 6.5" VGA 5725: 11 A... -
Page 16: 5730A Vs . 5720A
5730A Sales and Demo Guide 5730A vs. 5720A The 5730A adds the functional improvements over its predecessor listed in the table below. The 5700A and 5720A will remain available to customers for a limited time (5720A production until 8/2014; 5700A production planned until 8/2015). After the 5700A & 5720A are discontinued, Fluke Calibration will only be able to service existing 5700A and 5720A calibrators as long as replacement parts are available (unknown at this time). -
Page 17: Product Demonstration
3) A list of all the editable features of the 5730A appears, grouped by feature type. Each of the 5 feature types are essentially huge buttons to access each of the features in the list on the next lower menu level. - Page 18 Specification displayed in the top right of the touchscreen. (It may be in different units). 7) Notice that the 5730A is in the 220 mV range and in “Auto Range” as shown by the oval located directly above the output voltage on the touchscreen. To lock the 5730A in the current range, press the yellow dot to the left of “Auto Range.”...
- Page 19 5730A output. 7) Use the knob on the 5730A to adjust the output so the display of the 8846A is exactly 10 mV. 8) Press the “Scale” button. The 8846A Scale Error is now displayed in the lower right of the output screen.
- Page 20 Press the “Phase Control” button. 10) The “Phase Lock” key allows you to lock 5730A output to an external signal applied to a BNC connector on the rear panel. The Phase Lock will toggle between “Internal” and “External” when pressed. To activate the Phase Lock, press the square check box next to the Phase Output scale.
- Page 21 5730A Sales and Demo Guide 4) There are 18 discrete resistance values available in the 5730A, from 1 Ω to 100 MΩ in decade values of 1 and 1.9. The 1.9X values allow you to calibrate most DMMs at near full scale.
-
Page 22: Ordering Information
Product Announcement – September 18, 2013 Orders Accepted – September 18, 2013 First Product Shipments -- October 2013 Sales and Marketing Materials The following sales and marketing materials are accessible from the 5730A Launch Page found at: http://eu.flukecal.com/5730A-Launch-EU Fluke Corporation Company Confidential... -
Page 23: Faq
Current unit/replacement/upgrade The 5720A will be available one year after introduction of the How much longer can I purchase the 5700A or 5730A. The 5700A will remain in production longer, based on 5720A? availability of components The 5700A and 5720A will be supported 5 years after date of... - Page 24 The mechanical supports also allow for minimal flexibility when pressing the touch screen. No, the 5730A does not have rear outputs as an option at this Does the 5730A have rear outputs? time.
- Page 25 Through this, the How does Artifact Cal give me better specs? 5730A can be used against 90 day or even 24 hour specs, depending on how often Artifact Cal is performed. The only instruments required to calibrate the 5730A are a...
- Page 26 5730A Sales and Demo Guide If you are accredited using the 1-year specifications for your scope and then perform the Artificat Cal, you are OK. If you When I perform an Artifact Cal, how will this are accredited using the 90-day specification, then you will be...
- Page 27 5730A Sales and Demo Guide Appendix A: Performance Specification Improvements 5730A vs. 5720A Summary Specification Improvements, 1 year, 99% Resistance Nominal Value (Ω) Present Spec New Spec (ppm) Improvement (%) (ppm) 10 k 100 k AC Current Range Frequency Present Spec...
- Page 28 5730A Sales and Demo Guide Fluke Corporation Company Confidential Page 28 of 28...
