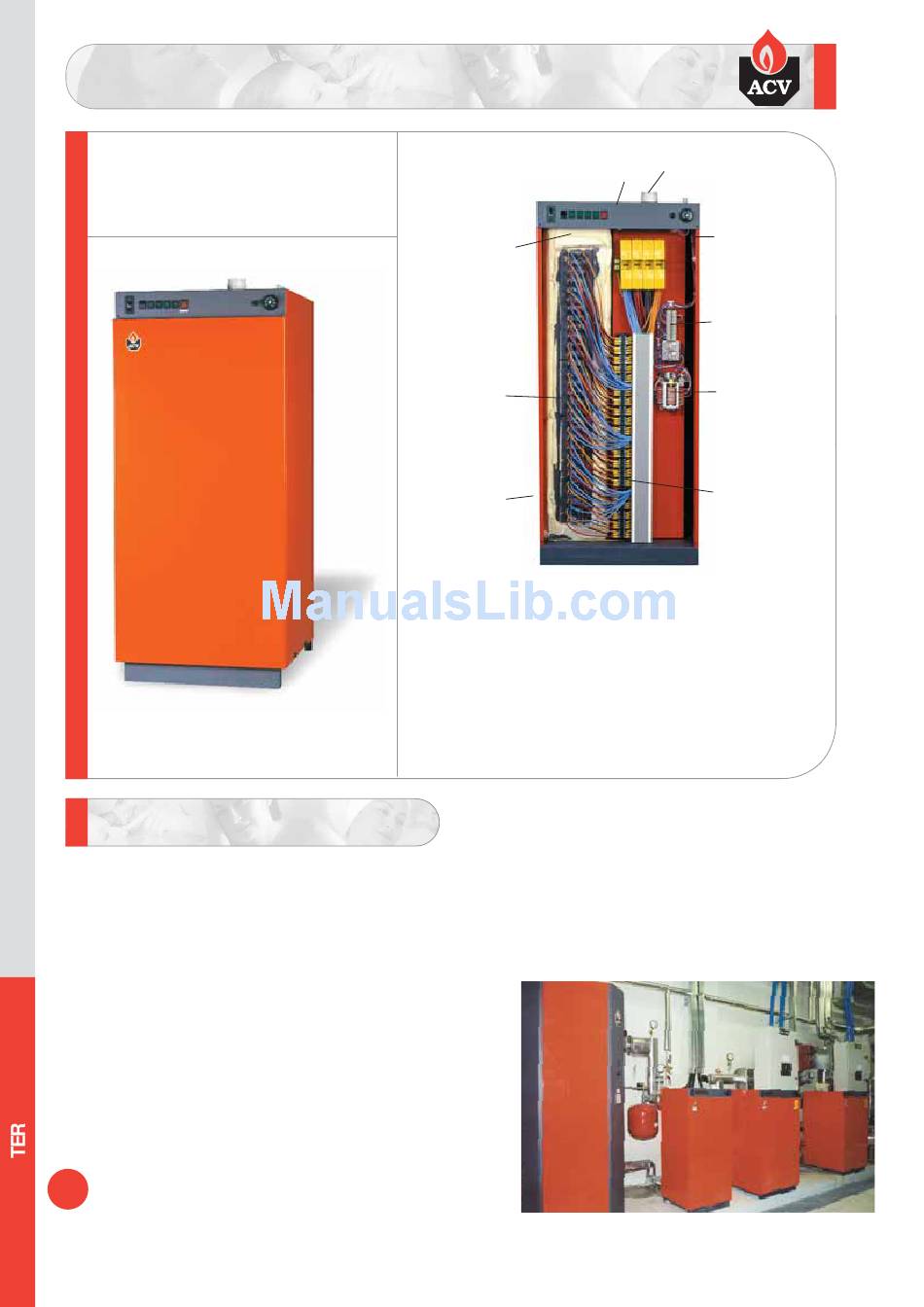

ACV TER 57 Specification

Electric Boilers
TER

Product Description

• Floor standing high output electric boiler
• Steel heating body and removable stainless
steel heating elements
• Six standard models of 57.6 to 259 kW
• Four power stages – controlled by a stage delay timer
• Can easily be de-rated to provide less output if required
• Fully wired power and control circuits
• 50mm rigid polyurethane foam insulation
• Stove enamelled casing
• Control panel including thermostats, thermometer,
indicators and on/off switch
• Very little maintenance required
• Can also be used in multiple boiler installations
35
9
8
7
1. Control panel
2. Power cable entry position
3. Power cable connections
4. Control circuit terminals
5. Power stage delay timer
Typical Installation
Three TER boilers providing full heating and hot water
capabilities in conjunction with a Jumbo 1000 hot water
storage tank.
2
1
3
4
5
6
6. Element supply contactors
7. Stove enamelled metal casing
8. Heating elements
9. Rigid polyurethane foam
insulation
