PANEL INSTALLATION

Custom Panels

For overlay and flush inset applications, custom door and
grille panels must be installed. Panel size is critical for a
proper fit. To verify panel requirements and dimensions,
refer to the Sub-Zero design guide at subzero.com/specs.
Flush inset applications require a
IMPORTANT NOTE:
minimum 1 / " reveal on all sides.
(13)
2
Finish all sides of custom panels. They may be visible
when the door is open or through the window of glass door
models.
EXTERNAL DISPENSER
For external dispenser models, the dispenser glasswell will
need to be removed before custom panels can be installed.
The total panel thickness (including
IMPORTANT NOTE:
backer and spacer, if used) in the glasswell area can range
1
from / " to a maximum 1
(6)
4
the area must be routed to 1
To remove the glasswell, lift the water grille up and out.
Remove the control panel by removing the center plastic
mandrel supports. Tilt the control panel out and disconnect
the wire harness (blue side up) from the back side. Remove
the bezel by removing the four screws. Refer to the illustra-
tions below.
Once custom panels have been installed, reverse the proce-
dure to reinstall the glasswell.
ICE
WATER
LOCK
INDICATOR
LIGHT
WATER
GRILLE

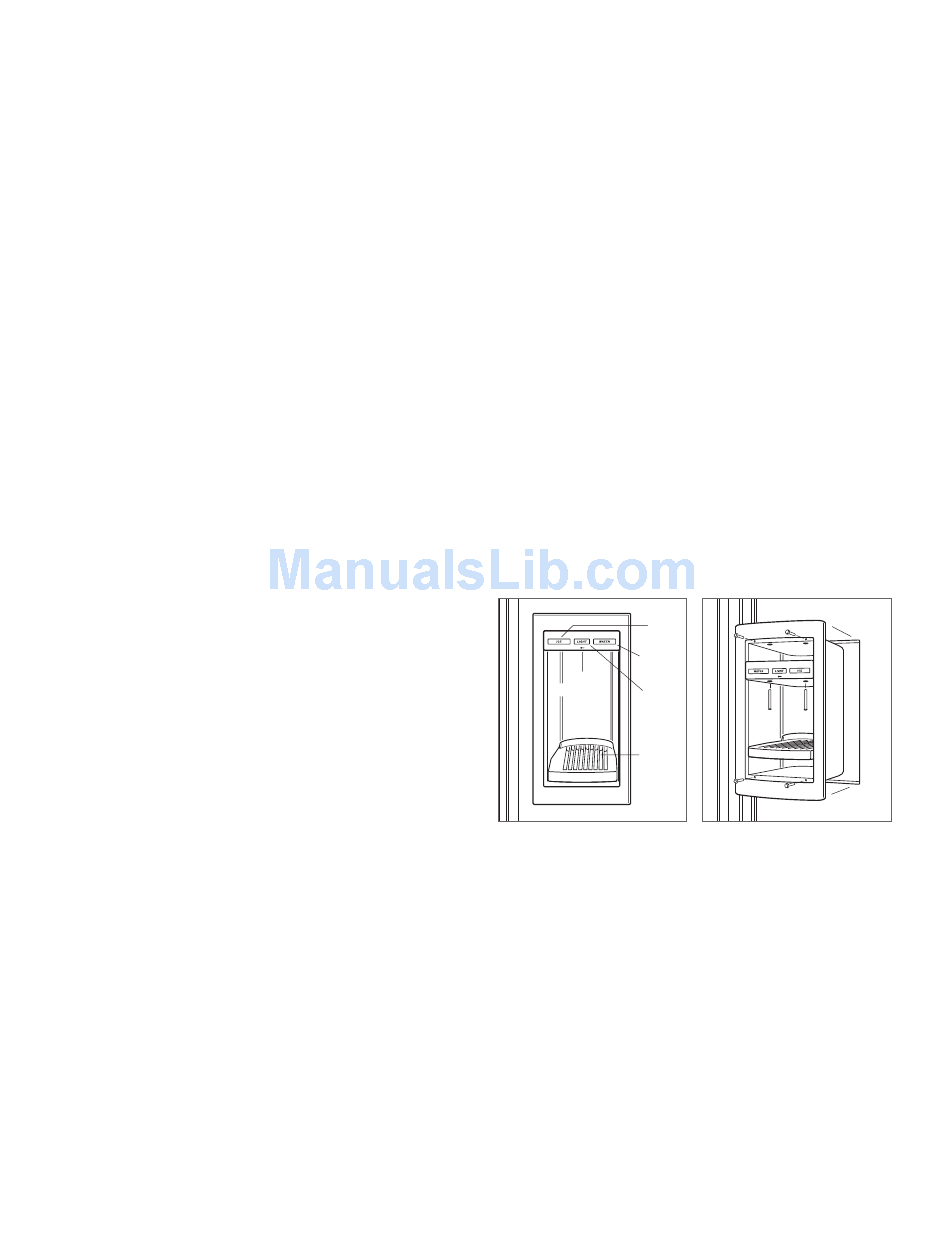

Dispenser glasswell.
1
/ " . If the panel is thicker,
(29)
8
1 / " maximum thickness.
(29)
8
Glasswell removal.
|
subzero.com 13
