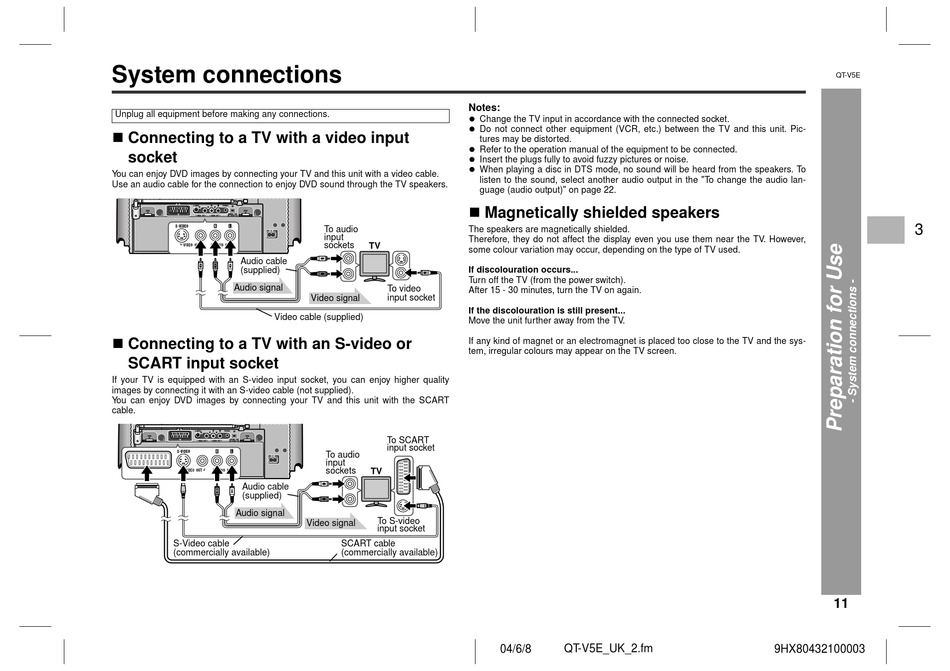

System connections

Unplug all equipment before making any connections.
" Connecting to a TV with a video input
socket
You can enjoy DVD images by connecting your TV and this unit with a video cable.
Use an audio cable for the connection to enjoy DVD sound through the TV speakers.
Audio cable
(supplied)
Audio signal
Video cable (supplied)
" Connecting to a TV with an S-video or
SCART input socket
If your TV is equipped with an S-video input socket, you can enjoy higher quality
images by connecting it with an S-video cable (not supplied).
You can enjoy DVD images by connecting your TV and this unit with the SCART
cable.
Audio cable
(supplied)
Audio signal
S-Video cable
(commercially available)
Notes:
! Change the TV input in accordance with the connected socket.
! Do not connect other equipment (VCR, etc.) between the TV and this unit. Pic-
tures may be distorted.
! Refer to the operation manual of the equipment to be connected.
! Insert the plugs fully to avoid fuzzy pictures or noise.
! When playing a disc in DTS mode, no sound will be heard from the speakers. To
listen to the sound, select another audio output in the "To change the audio lan-
guage (audio output)" on page 22.
" Magnetically shielded speakers
To audio The speakers are magnetically shielded.
input
Therefore, they do not affect the display even you use them near the TV. However,
sockets TV
some colour variation may occur, depending on the type of TV used.
If discolouration occurs...
Turn off the TV (from the power switch).
To video
After 15 - 30 minutes, turn the TV on again.
Video signal input socket
If the discolouration is still present...
Move the unit further away from the TV.
If any kind of magnet or an electromagnet is placed too close to the TV and the sys-
tem, irregular colours may appear on the TV screen.
To SCART
input socket
To audio
input
sockets
TV
To S-video
Video signal
input socket
SCART cable
(commercially available)
