Cheetah 4LP Installation Guide, Rev. B

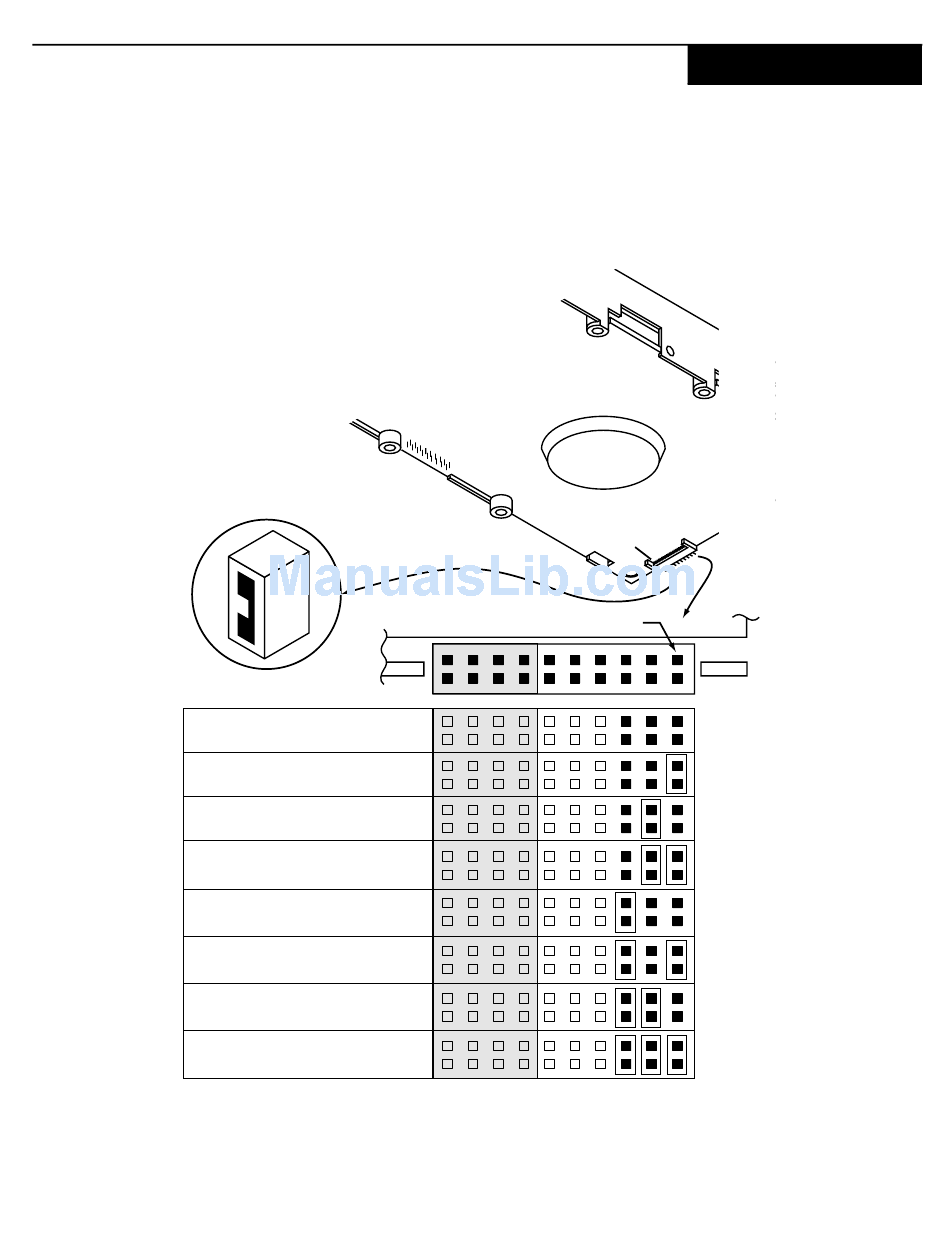

Setting the SCSI ID jumpers
Use the J6 connector to set the SCSI ID (see Figure 7). To
change the SCSI ID, install jumpers on the appropriate pins as
shown in the illustration.
Jumper Plug
(enlarged to
show detail)
SCSI ID = 0 (default)
SCSI ID = 1
SCSI ID = 2
SCSI ID = 3
SCSI ID = 4
SCSI ID = 5
SCSI ID = 6
SCSI ID = 7
Figure 7.
Setting the SCSI ID on model "N" drives
N drives sectionb
J2
J6 [4]
N drives
Pin 1
J6
End
Pin 1
39
