Cheetah 4LP Installation Guide, Rev. B
31
.
Above unit
Under unit
Note. Air flows in the direction shown (back to front)
or in reverse direction (front to back)
Above unit
Under unit
Note. Air flows in the direction shown or
in reverse direction (side to side)

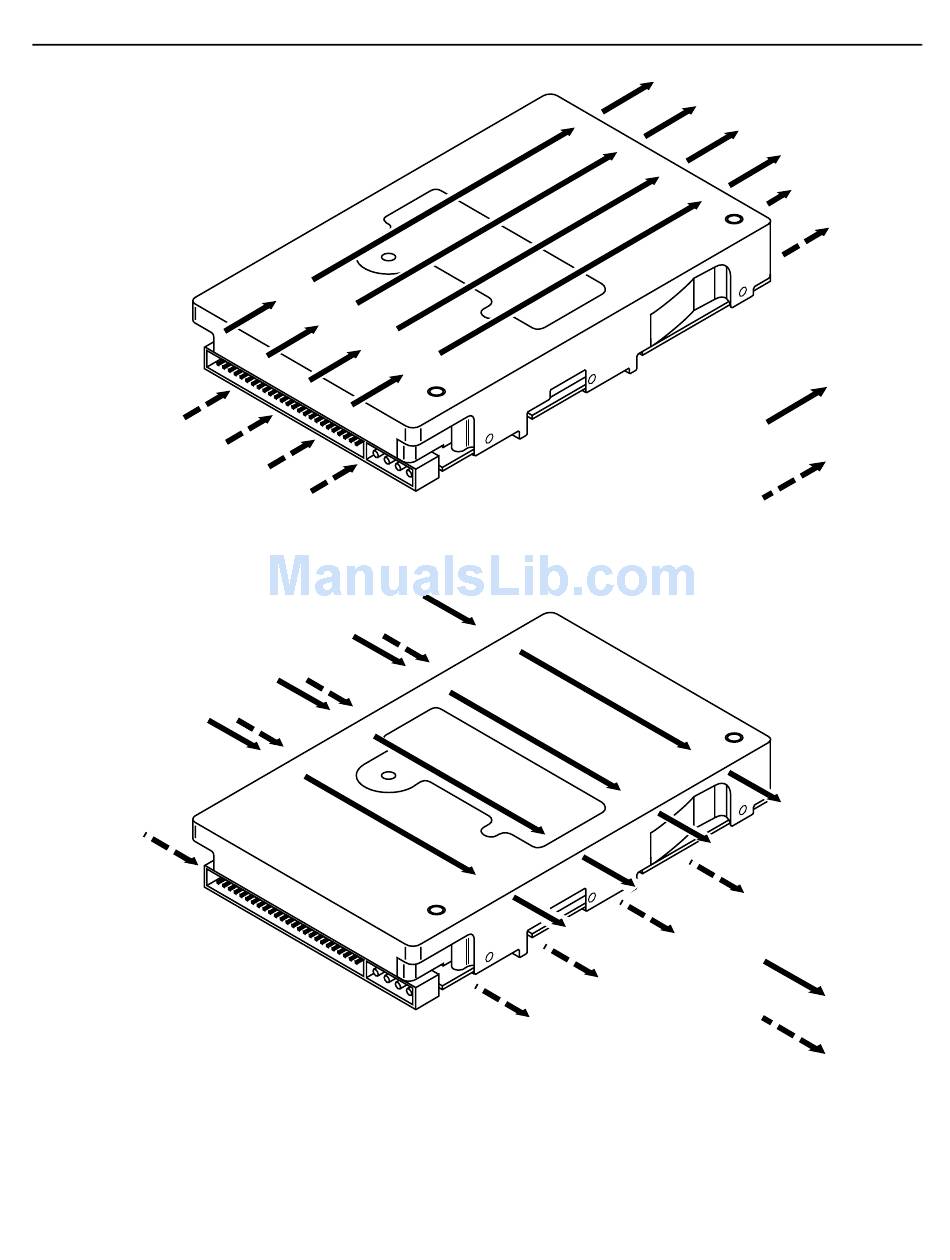

Figure 4.
Suggested air flow
Abbildung 4. Empfohlener Luftstromverlauf
