N drives
Terminator power
There are three possible terminator power ( TP ) configurations
for "N" model drives (see Figure 9). You will not normally need to
change this option and can leave the drive configured as it was
shipped from the factory.
"N" model drives
Term. Power from Drive
Term. Power to SCSI Bus
Term. Power from SCSI Bus
J2 Jumper Type
(enlarged to
show detail)

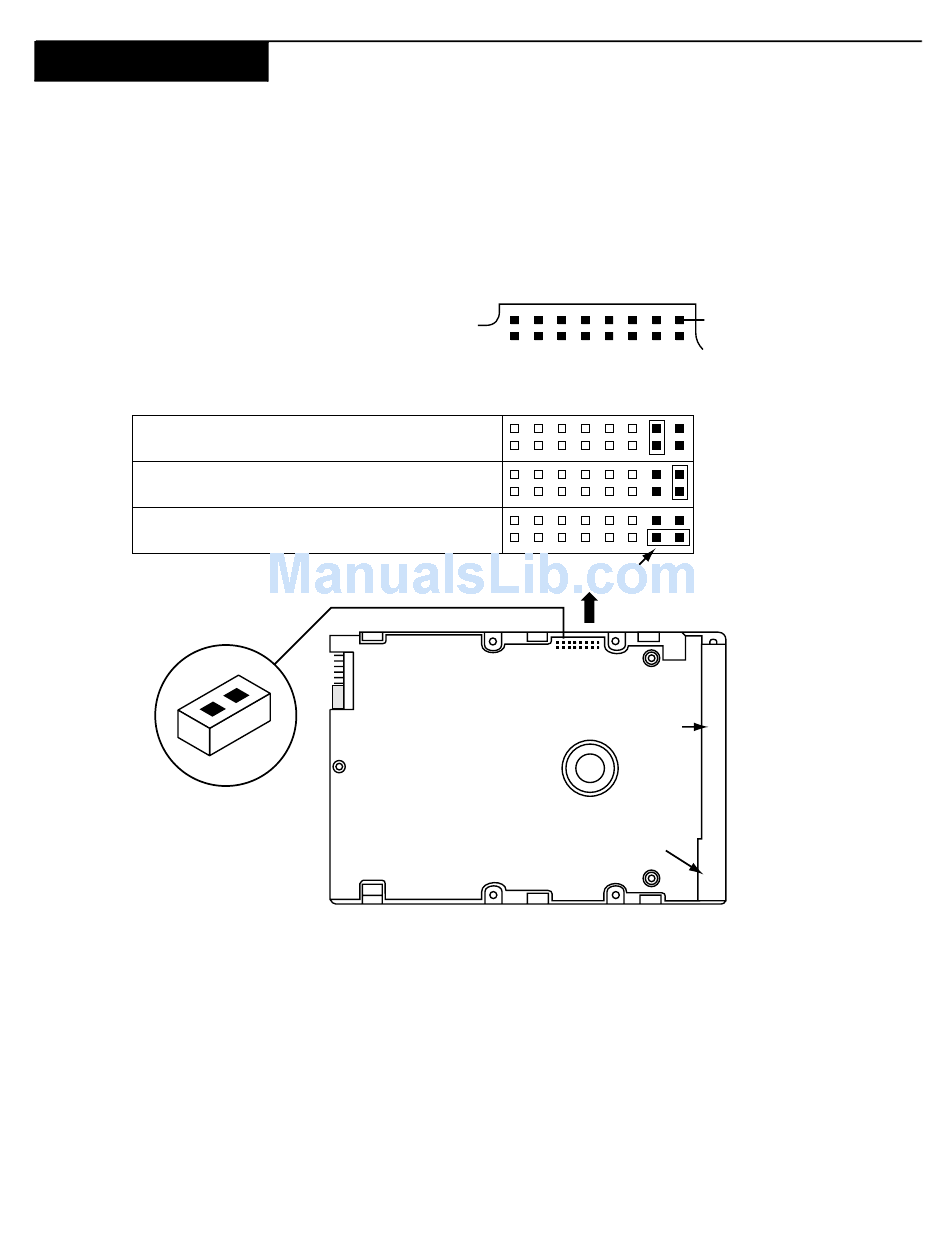

Figure 9. Setting terminator power jumpers
Hawk 4XL Installation Guide, Rev. A
J2
T D
E S
Position A
J6
Drive
Front
Pin 1
R
M W P E T T
E P D S P P
(default)
J2
SCSI I/O
J1
Connector
DC Power
Connector
