Setting the SCSI ID jumpers
Use the J6 connector to set the SCSI ID (see Figure 7). To
change the SCSI ID, install jumpers on the appropriate pins as
shown in the illustration.
Drive
Front
Jumper Plug
(enlarged to
show detail)

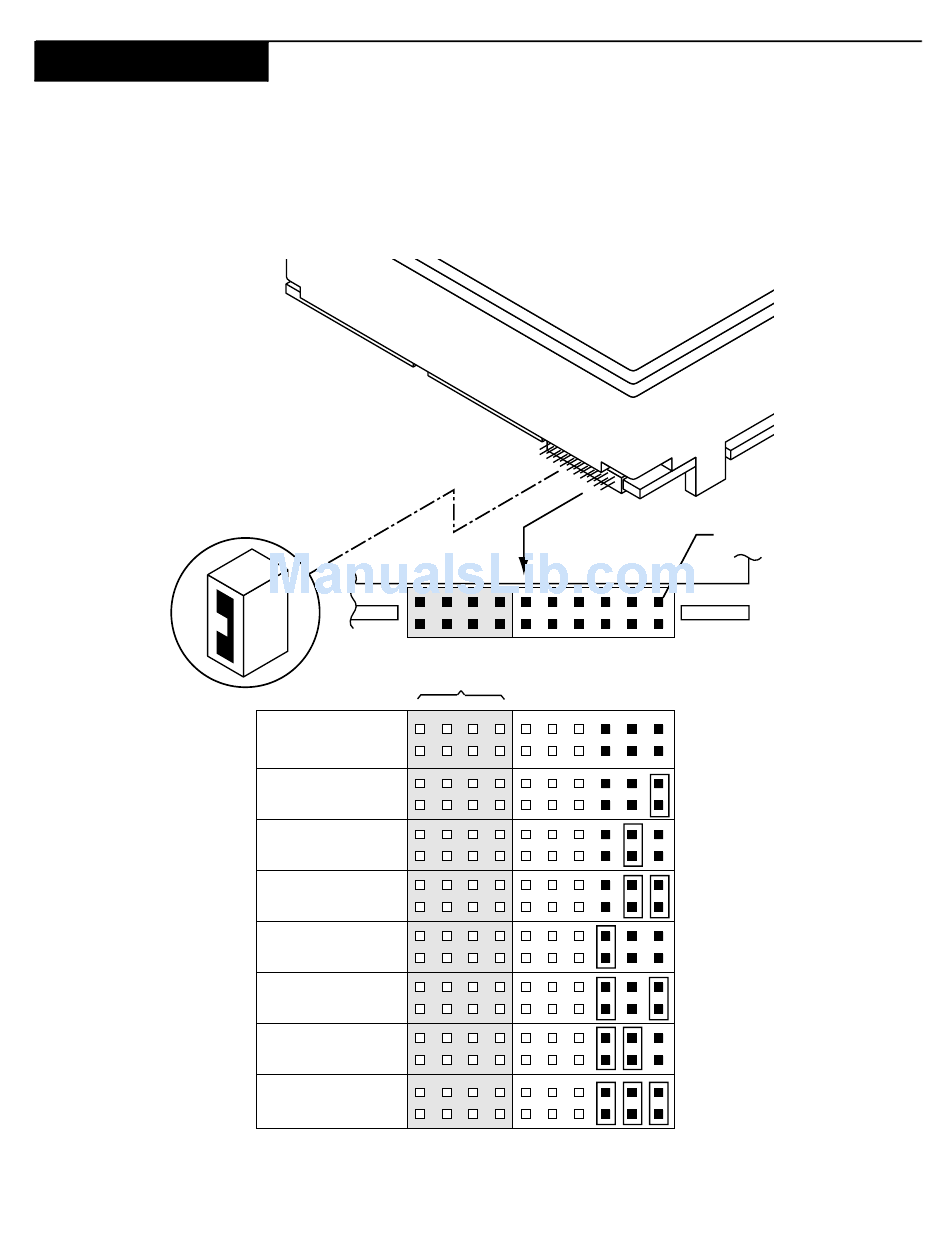

Figure 7.
Setting the SCSI ID on model N drives
Hawk 4XL Installation Guide, Rev. A
N/ND drives section
Reserved
SCSI ID = 0
SCSI ID = 1
SCSI ID = 2
SCSI ID = 3
SCSI ID = 4
SCSI ID = 5
SCSI ID = 6
SCSI ID = 7
J6
L
R
R
E
E
E
A 2 A 1 A 0
D
S
S
(default)
Pin 1
