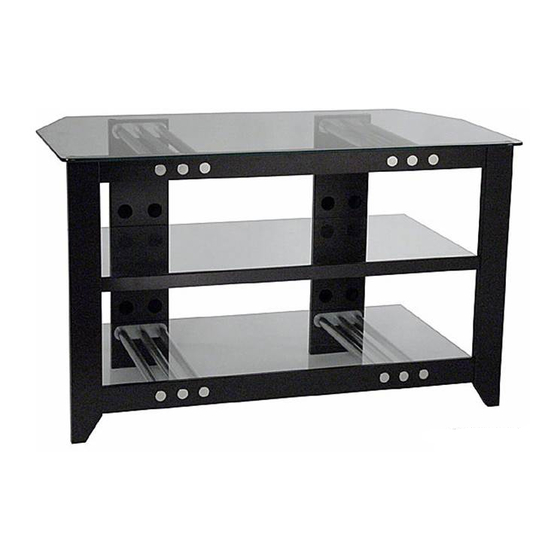

Assembly Instructions for Natural Furniture, Models: NF203, NF213, NFV49
Thank you for choosing the Natural Furniture line from Sanus Systems. If you have any questions regarding this or any
other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service
representatives can assist you quickly with any issues regarding assembly or missing parts. Check carefully to make sure
none of the parts are missing or defective. Never use defective parts. Replacement parts for products purchased from an
authorized dealer will be shipped directly to you. Please call Sanus Systems before returning products to retail stores.
Supplied Parts List: (Threaded fasteners are shown full size)
Front Frame - A
Glass Shelf - D
Top Glass Shelf - G
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 04.06.06 (100043)
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Qty. 1
Qty. 2
Qty. 1
Steel Cross Tube- B
Qty. 12
Rear Support - E
Qty. 2
Wire Strap - H
Three Hole Plate - C
Qty. 8
Plastic Wire Cover - F
Qty. 2
Qty. 4
Advertisement
Table of Contents
Related Manuals for Sanus Systems NF203
Summary of Contents for Sanus Systems NF203
- Page 1 Assembly Instructions for Natural Furniture, Models: NF203, NF213, NFV49 Thank you for choosing the Natural Furniture line from Sanus Systems. If you have any questions regarding this or any other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service representatives can assist you quickly with any issues regarding assembly or missing parts.
- Page 2 Allen Bolt - I Qty. 12 Washer - J Qty. 4 Allen Key - M Glass Protector - L Decorative Face Bolt - K Qty. 1 Qty. 8 Qty. 12 Step 1: Attach the Cross Tubes to the Front Frame Position the Front Frame (A) as shown in Diagram 1;...
- Page 3 Step 2: Attach Rear Supports NOTE: The Rear Supports (E) must be positioned with set of three holes closest to the edge toward the top and the horizontal slots facing the Front Frame (A). Thread an Allen Bolt (I) through a Washer (J), the middle hole in a Rear Support (E), the middle hole in a Three Hole Plate (C), and into the middle Steel Cross Tube (B), as shown in Diagram 2.
- Page 4 Wire Cover attaches to the Rear Support. Diagram 5 Top View Plastic Wire Cover (F) Grooves in Rear Support (E Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 04.06.06 (100043) Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com...
