Sanus Systems NF203 Assembling Instructions

Natural furniture series

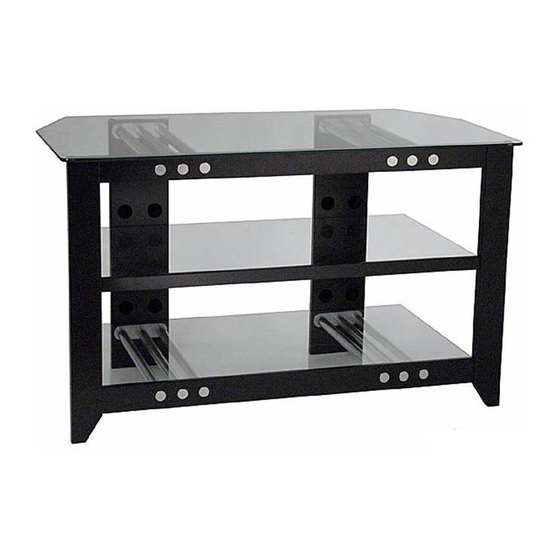

Assembly Instructions for Natural Furniture: Model NF203, NF213, NFV49

Thank you for choosing the Natural Furniture line from Sanus Systems. If you have any questions regarding this or any other Sanus

Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service representatives can assist you

quickly with any issues regarding assembly or missing parts. Check carefully to make sure none of the parts are missing or defective.

Never use defective parts. Replacement parts for products purchased from an authorized dealer will be shipped directly to you. Please

call Sanus Systems before returning products to retail stores.

Supplied Parts List:

(12) Steel Cross Tube - b

(8) Three Hole Plate - c

(1) Front Frame - a

(2) Glass Shelf - d

(2) Rear Support - e

(2) Plastic Wire Cover - f

(4) Wire Strap - h

(1) Top Glass Shelf - g

Sanus Systems 2221 Hwy 36 West. St. Paul, MN 55113

800.359.5520 www.sanus.com 8.31.04

Table of Contents

Do you have a question about the NF203 and is the answer not in the manual?

Page 1 Assembly Instructions for Natural Furniture: Model NF203, NF213, NFV49 Thank you for choosing the Natural Furniture line from Sanus Systems. If you have any questions regarding this or any other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service representatives can assist you quickly with any issues regarding assembly or missing parts.
Page 2 Supplied Hardware List: (12) Allen Bolt - i (4) Washer - j (12) Decorative Face Bolt - k (8) Glass Protector - l (1) Allen Key - m Step 1: Attach the Cross Tubes to the Front Frame Position the Front Frame (a) like it is pictured in Diagram 1. Next, slide each Decorative Face Bolt (k) through the Front Frame, a Three Hole Plate (c) and into a Steel Cross Tube (b).
Page 3 Step 2: Attach the Rear Supports Thread an Allen Bolt (i) through a Washer (j), through the middle hole in a Rear Support (e), through the middle hole in a Three Hole Plate (c) and into the middle Steel Cross Tube (b). See Diagram 2 for assistance. Repeat the process until all 4 middle Allen Bolts, the 4 accompanying Washers, and the Rear Supports are attached to the middle Steel Cross Tubes.
Page 4 Note: The glass in Diagram 5 is shown as a cutaway view to provide greater detail of how the Wire Cover attaches to the rear sup- port. Top View slot slot Sanus Systems 2221 Hwy 36 West. St. Paul, MN 55113 Diagram 4 800.359.5520 www.sanus.com 8.31.04 Diagram 5...
