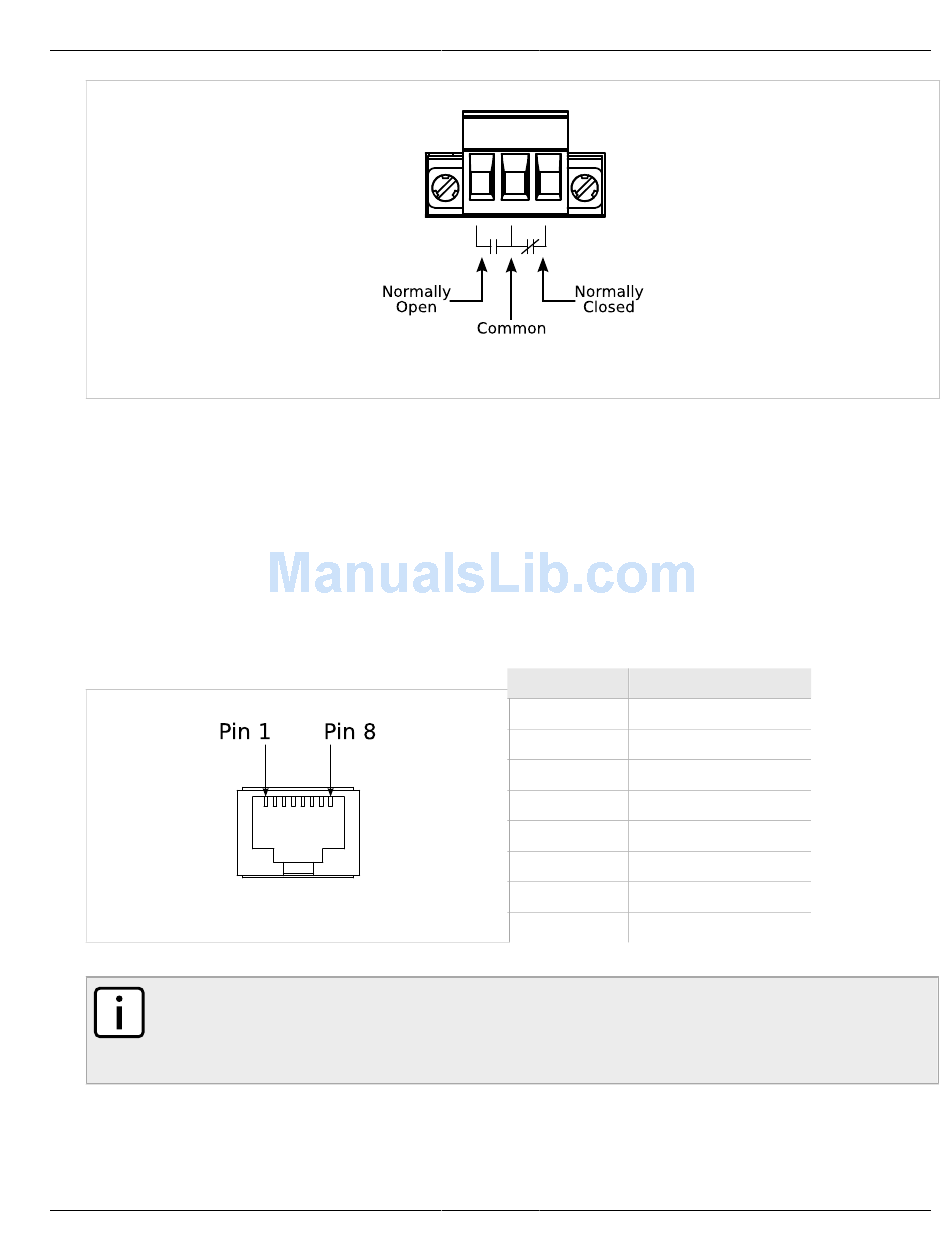

Figure 45: Critical Alarm Relay Connector
Section 3.4

Serial Console Port

The serial console port on the front panel provides access to the boot-time control and configuration menu
interface, and a console interface to the ROX operating system.
The serial ports implement RS232 DCE on a RJ45 connector. Serial settings are: 57600 bps, 8 bits, No parity, 1
stop bit. See the illustration and table below for pin configuration and assignment.
Figure 46: RJ45 Serial Console Port
NOTE
The RX1510 connects the DSR/RI, RLSD, and DTR pins internally and does not drive or require these
pins.
The RX1510 connects the CTS and RTS pins internally and does not drive or require these pins.
Serial Console Port
Table 2: RJ45 Serial Console Pinout
RJ45 Pin Signal Function
1
2
3
4
5
6
7
8
Installation
DSR/RI
RLSD
DTR
GND
RD
TD
CTS
RTS
