Installation
Section 3.1
Mounting
The RuggedBackbone™ RX1510 features optional mounting brackets for panel and DIN rail mounting. The
optional brackets attach to both sides of the appliance at the rear of the chassis. For panel mounting, the
mounting bracket provides four mounting holes. For DIN rail mounting, the DIN adaptor mounts to a standard 1"
DIN rail and is secured with a lock screw on each adaptor.
To attach the mounting brackets, align the brackets with the threaded holes on the sides of the appliance. Secure
the mounting brackets to the appliance with the screws included in the mounting bracket kit.

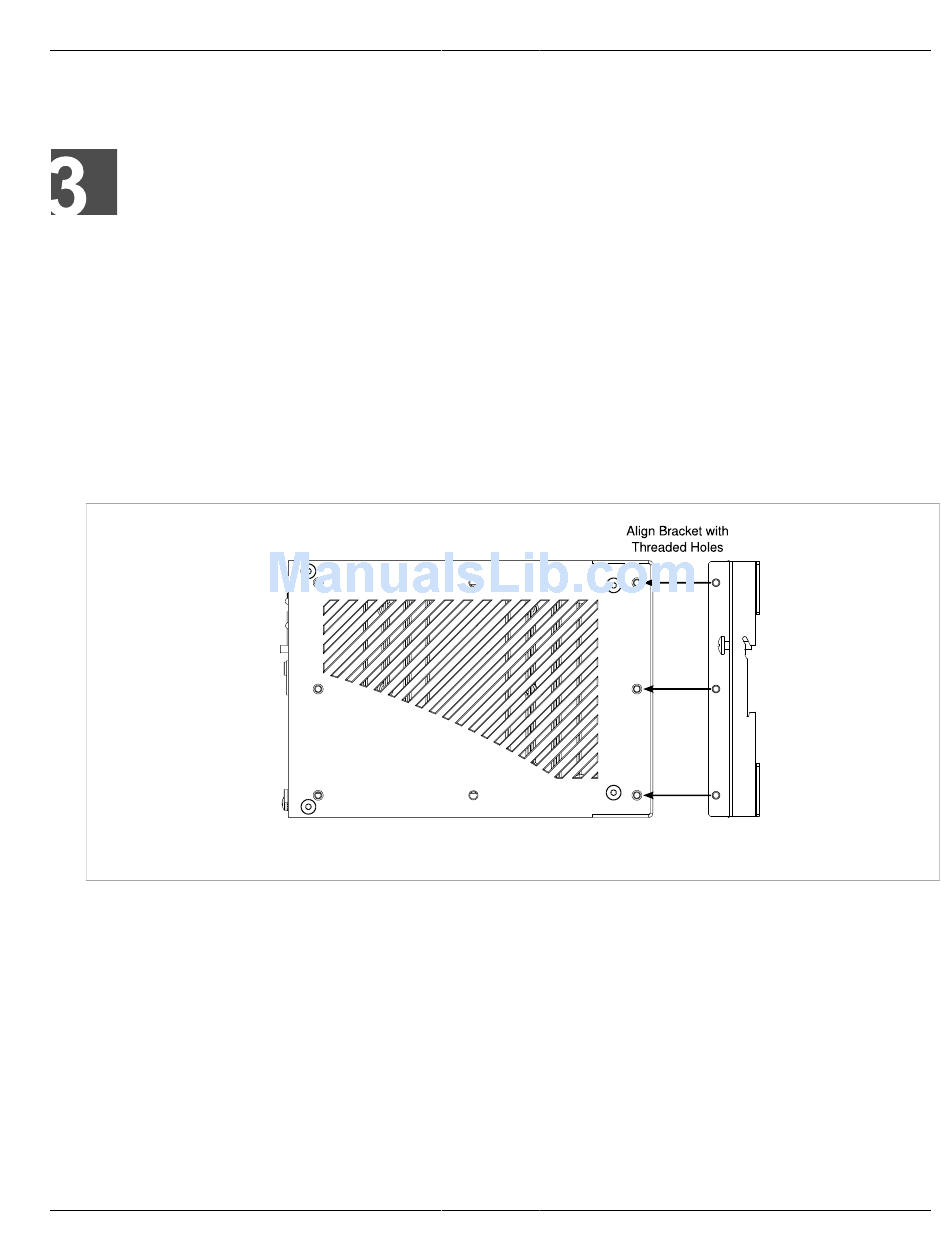

Figure 31: Installing Mounting Brackets
Mounting
Chapter 3
Installation
13
