RuggedBackbone™ RX1510
Installation Guide
• Critical Alarm (Failsafe) Relay Interface:
Section 2.2.1

Module Status LEDs

The front panel module status LEDs provide the following information:
Table 1: Module Status LED Indications
LED
LM 1 through 4
Section 2.3

Line Modules (LM)

The RuggedBackbone™ RX1510 supports four line modules in slots LM1 through LM4. Several types of line
modules may be ordered, depending on the type, speed and number of Ethernet ports required.

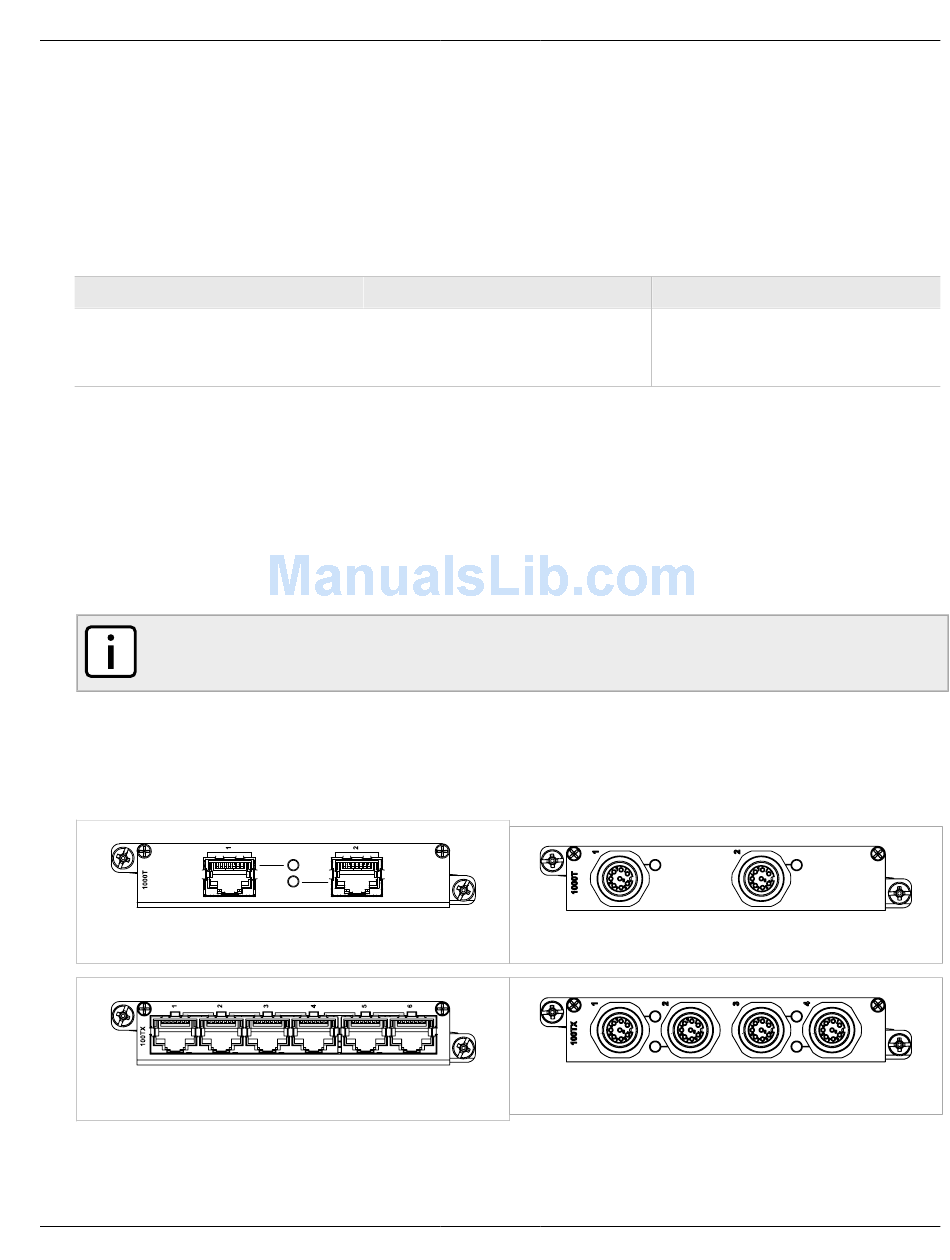

The following illustrations show the typical port configurations and connectors available for RX1510 line modules.
For complete information on the available line modules, refer to the RuggedBackbone™ RX1510 data sheet.
NOTE
Only one T1/E1 module may be used per router.
Section 2.3.1

Ethernet - Copper

Figure 3: CG01: 2 × 10/100/1000TX RJ45
Figure 5: 6TX01: 6 × 10/100TX RJ45
Module Status LEDs
Section 3.3, "Critical Alarm Wiring"
Purpose
Indicates the line module status.
Figure 4: CG03: 2 x 8-Pin 10/100/1000TX M12
Figure 6: 4TX03: 4 x 8-Pin 10/100TX M12
Chapter 2
RuggedBackbone™ Modules
Description
Green = OK
Orange = Warning alert
Red = Configuration error
7
