Appendix A. Connector and Cable Pinouts
A.2. Console Cable Pinouts
In normal operation, the console connector should remain closed and should only be
used by an authorized technician.
The console connection is a 3-pin female connector, based on the RS-232 serial standard. The
port provides a standard terminal connection through which a technician can configure and monitor
the base station through its command line interface (CLI).
• Cable type: 3 wire 28AWG
• Cable connectors: DB9F, proprietary 3 pin console connector
• Cable length: 2m
• The cable is supplied by RuggedCom.

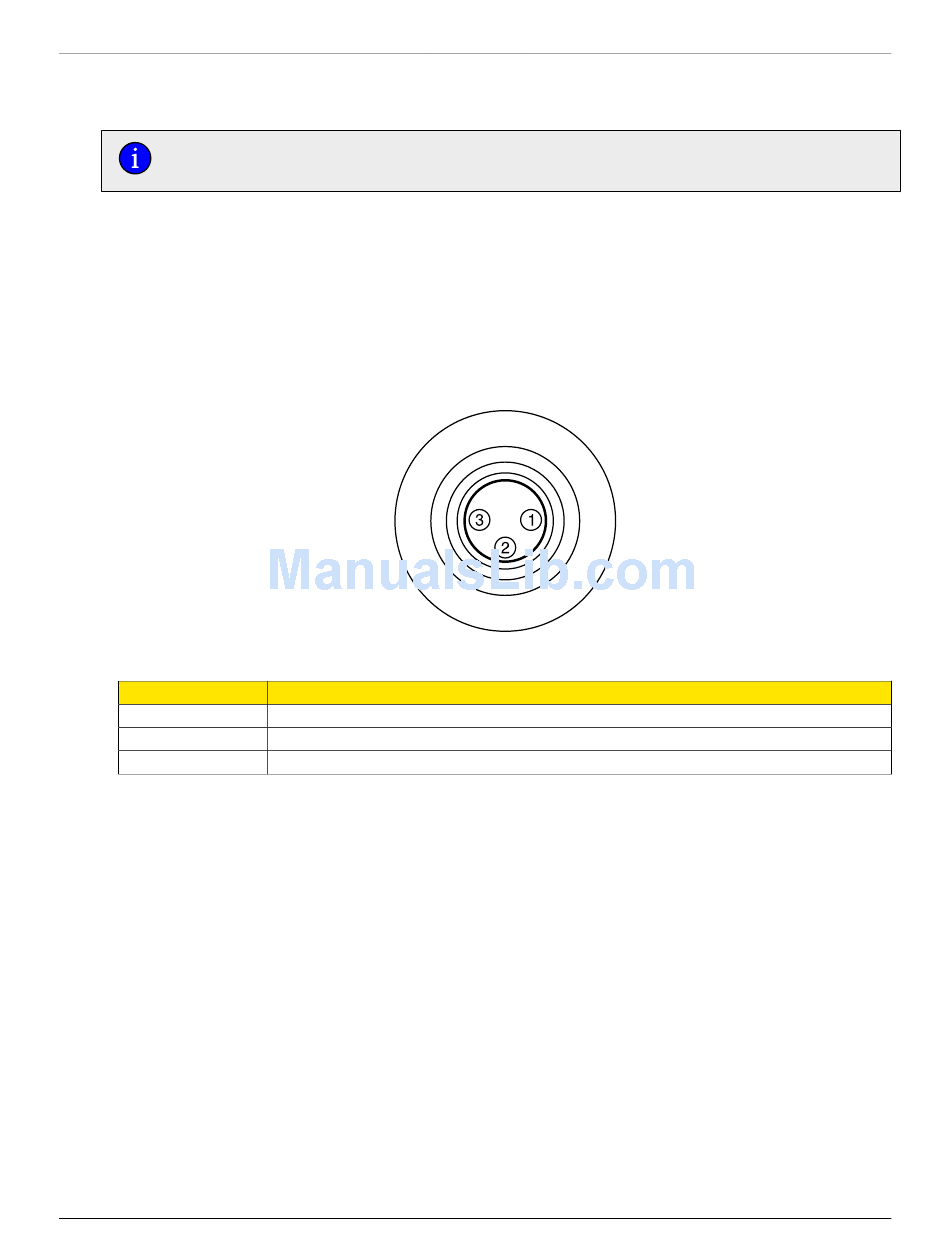

Figure A.2. WiN7000 Console Connector Pinout
Pin Number
1
2
3
Table A.2. WiN7000 Console Connector Pinout
RuggedCom® RuggedMAX WiN7000
Type
TX
RX
GND
30
Installation Guide Rev1
