3. Installation Procedures

Procedure 3.2. Installing the WiN7000 on a Wall

Select a mounting location.

Place the mounting bracket on the wall and mark the location of the four mounting holes, two

at the top and two at the bottom.

With a 5/16" drill bit suitable for the wall material, drill holes at the marked locations.

Insert the 5/16" dowels (Item 10) into the holes.

Assemble four 5/16" flat washers (Item 8), four 5/16" spring washers (Item 9), and four 5/16"

× 2" hex cap screws (Item 7) into the holes on the mounting bracket.

Secure the mounting bracket to the wall.

Lift the base station by the eye bolts and secure it to the mounting bracket. At the top of the

unit and mounting bracket, use NC 1/4" × 1/2" hex screws (Item 3), NC 14" flat washers (Item

4), and NC 1/4" spring washers (Item 5).

Complete the wiring connections.

Seal all connectors with self-fusing electrical tape or insulating putty suitable for

use in the unit's installation environment. For more information on sealing the

connectors, see

3.4.4. Tower Mount

Follow the same procedure as for wall mounting; see

the tower can hold the load of the base station.

The WiN7000 can be equipped with copper or fiber Ethernet connections.

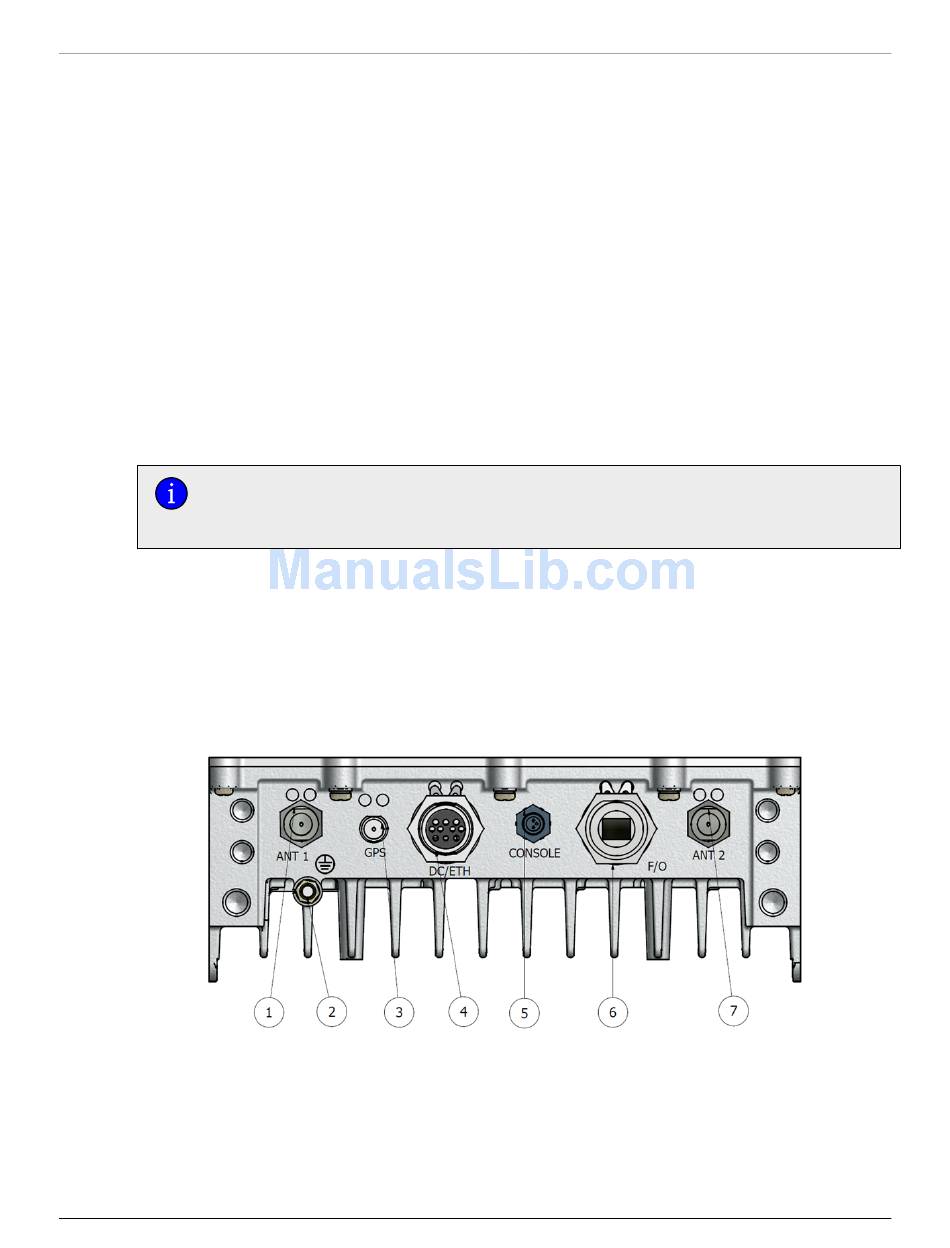

Figure 3.4. Fiber Optic Ethernet Port Option

RuggedCom® RuggedMAX WiN7000

Section 3.5,

"Weatherproofing".

Section 3.4.3, "Wall

Mounting". Ensure that

Installation Guide Rev1
