Appendix A. Connector and Cable Pinouts
Appendix A. Connector and Cable Pinouts
A.1. Power and Ethernet Cable Pinouts
The pinout of the power cable is shown below:

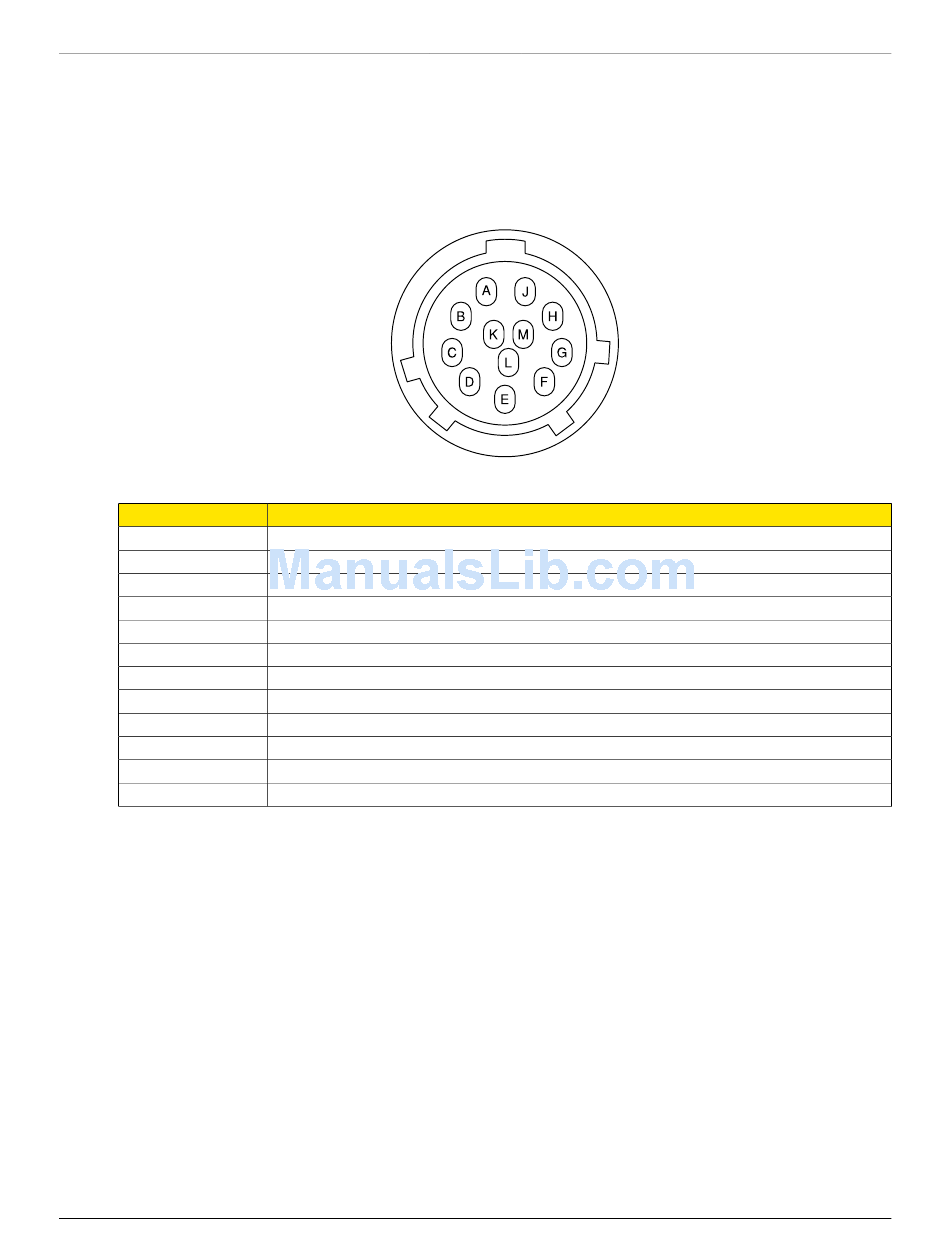

Figure A.1. WiN7000 Power Cable Pinout
Pin Number
A
B
C
D
E
F
G
H
J
K
L
M
Table A.1. WiN7000 Power Cable Pinout
RuggedCom® RuggedMAX WiN7000
Type
NC
NC
+TX Ethernet
- TX Ethernet
+RX Ethernet
- RX Ethernet
NC
NC
NC
48VDC (RTN)
48VDC (+)
Ethernet GND
29
Installation Guide Rev1
