Marco 1000821 Installation Manual

Airspace
3.5 buffer space
Outlet water
connection.
Tube should be no
longer than 1m.
UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS
TOLERANCES: LINEAR: +/-0.2mm
470
min 50
395

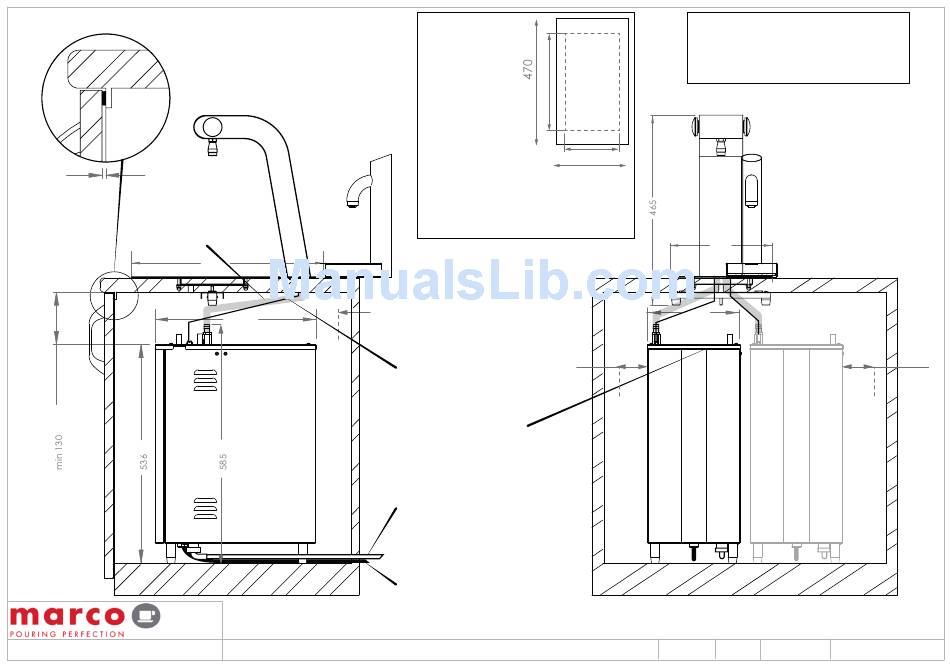

DESCRIPTION: UC10 Installation guide
Outer
dimensions
denote outline
footprint of font.
Broken line
indicates cutout.
For exact drilling
template refer to
the font's
instruction
manual.
P/N:
1000821,
1000816,
1000811.
min 50
2 wire Electrical
Connection 5V DC
If the vent is plumbed it
should be plumbed with
a tundish device.
Europe-
3/4" B.S.P water supply hose-Supplied
US-
No hose supplied.

Electrical supply to machine

230V / 13A UK/ Europe
220V / 15A US.

Note:

Dimensions specified are only guides.
Factors like ambient temperature, material
of counter will give rise to variances.
A vent system may need to be installed.
165
250
250
230
DRAWN BY FMc
min 50
02/11/11 SCALE:1:8
