  • Page 1 Instruction Manual Machine P/N: 1000870#, 1000871# & 1000880#...
  • Page 2: Table Of Contents

    Contents 1. Information........................3 1 Introduction......................3 2 Safety.........................3 3 Electrical Installation Procedure................4 4 Plumbing Installation Procedure................4 5 Backflow Prevention....................4 6 Maintenance.......................4 7 Descale Procedure....................4 8 Limescale......................5 9 Operating the Boiler for the First Time..............5 10 Contact Details....................5 2. Installation........................6 3. Push Button Boiler......................7 4.1 Operation: Multi Temp..................7 4.2 Programming: Multi Temp................8 4.3 Operation: Single Temp..................9...
  • Page 3: Information

    • CAUTION - Risk of fire and electric shock. Only to be used with manufacturer’s specified power cord set. Marco p/n 1501487 (USA), 1501488 (EU), 1501489 (UK/Ire). • This appliance should not be installed in an area where a water jet could be used to clean it.
  • Page 4: Electrical Installation Procedure

    • Remove lid. • Clean the water level probes with scotch brite. • Use ScaleKleen, Marco part No. 8000270 or similar. Follow instructions carefully. • Thoroughly clean and flush the machine before re-use. • Follow installation and first time operation instructions.
  • Page 5: Limescale

    • The Boiler may now be used to dispense Hot Water to the preset factory settings. NOTE: Because the boiler is electronically controlled no priming is necessary. The element cannot switch on until a safe level of water is reached. Contact Details Marco Beverage Systems Limited. 63d Heather Road, Sandyford Industrial Estate, Dublin 18...
  • Page 6: Installation

    Installation...
  • Page 7: Push Button Boiler

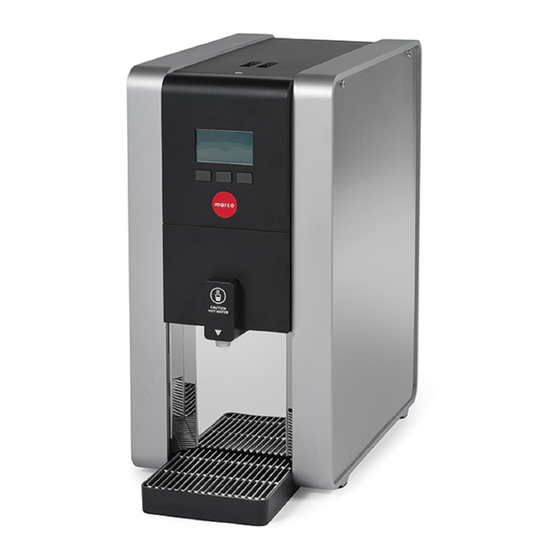

    Push Button Boiler Operation: Multi Temp Diagram of Parts 75° 85° Access Panel 95° Screen Temperature Quantity Push Buttons Dispense Nozzle Drip Tray Service Panel 75° 85° 95° 85°...
  • Page 8: Programming: Multi Temp

    Push Button Boiler Programming: Multi Temp - Method 1 75° 85° 95° 75° 85° 95° Save Next 75° 85° 95° 75° 85° 95° Save Programming: Multi Temp - Method 2 75° 85° 95° 75° 85° 95° 75° 85° 95° Next Save 75°...
  • Page 9: Operation: Single Temp

    Push Button Boiler Operation: Single Temp Diagram of Parts 85° Access Panel Temperature Screen Quantity Push Buttons Dispense Nozzle Drip Tray Service Panel 85° 85°...
  • Page 10: Programming: Single Temp

    Push Button Boiler Programming: Single Temp - Method 1 85° 85° Next Next 85° 85° Next Programming: Single Temp - Method 2 85° 85° 85° Save Next 85° 85° 85° Save Disp Save Disp...
  • Page 11: Tap Boiler

    Tap Boiler Operation: Tap 94° Diagram of Parts Temperature Access Panel Screen Push Buttons Drip Tray Service Panel 94° 94°...
  • Page 12: Programming: Tap

    Tap Boiler Programming: Tap 94° 90° Next Save 94° Under Counter Boiler Diagram of Parts Hot Connection Cold Connection Vent Wiring Connection Access Panel Screen Push Buttons Service Panel...
  • Page 13: Operation: Under Counter

    Under Counter Boiler Operation: Under Counter 75° 85° 95° 75° 85° 95° Temperature Weight 85°...
  • Page 14: Programming: Under Counter

    Under Counter Boiler Programming: Under Counter 75° 85° 95° 75° 85° 95° Save Next 75° 85° 95° 75° 85° 95° Save Set Up Single Button Font (default is 3 button font) Factory preset Descale weeks: Mode: UC MIX BOTH Filter Litres: DEFAULT Temp Units: °C...
  • Page 15: Service Set Up

    Service Set Up 3 sec Enter Pin Descale weeks: 0000 Filter Litres: Set Pin: Next Next IF PIN IS SET Only required for factory reset, not for install Factory preset Descale weeks: Mode: MIX BOTH Filter Litres: Temp Units: °C Set Pin: Next Next...
  • Page 16: Changing Filter

    Changing Filter...
  • Page 17: Cleaning & Maintenance

    Cleaning & Maintenance...
  • Page 18: Descale Proceedure

    Descale Proceedure ALLOW MACHINE TO COOL COMPLETELY...
  • Page 19 Descale Proceedure Repeat descale proceedure as required...
  • Page 20: Troubleshooting

    Troubleshooting The screen of the boiler indicates various errors or problems with the machine. See diag- nostic table below for futher details. Code / Icon Type Description Action Status Boiler Ready Status Boiler not ready Wait until the boiler ready symbol appears Button Turn machine ON/ OFF (only in Tap Press Button...
