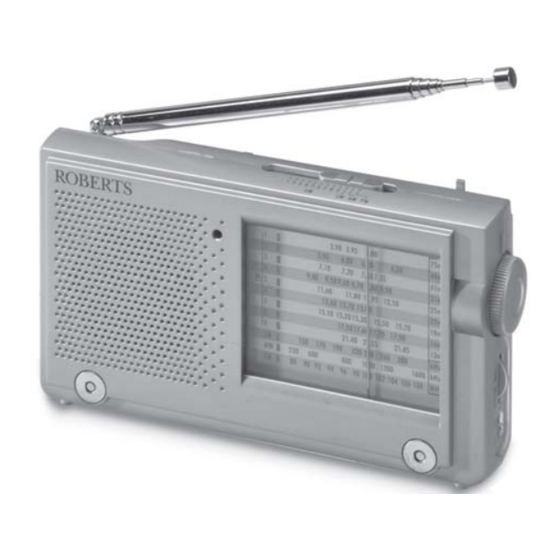

- Page 1 R9967 LW/MW/SW1-9/FM 12 band Portable World Radio...
-
Page 2: Table Of Contents
Contents Controls ........................2-3 Batteries ........................4 Operating your radio - FM .................... 5 Operating your radio - Medium and Long wave ............6 Operating your radio - Shortwave ................7 Headphones ......................... 8 Mains adaptor ......................8 Specifications ....................... 9 Guarantee ........................ -
Page 3: Controls
Controls (front) 1. Telescopic aerial 2. FM stereo indicator 3. Waveband switch 4. Tuning scale 5. Dial pointer If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) -
Page 4: Controls
Controls (left and right hand ends) 6. Stereo/Mono switch 9. Tuning control 7. Headphone socket 10. Volume control 8. DC input socket 11. On/Off switch 12. Battery compartment... -
Page 5: Batteries
Batteries 1. Open the Battery cover on the bottom of your radio by pushing the battery door in direction of the arrow. 2. Insert two LR6 (AA size) batteries into the spaces in the compartment. Take care to ensure batteries are inserted with the correct polarity as shown on the rear of your radio. -
Page 6: Operating Your Radio - Fm
Operating your radio - FM 1. Switch on your radio by sliding the Power On/Off switch to the On position. 2. Slide the Waveband selector switch to the FM position. 3. Adjust the Volume control until a hissing sound is heard. 4. -
Page 7: Operating Your Radio - Medium And Long Wave
Operating your radio - Medium and Long wave 1. Switch on your radio by sliding the Power On/ Off switch to the On position. 2. Slide the Waveband selector switch to the MW or LW position. 3. Adjust the Volume control until a hissing sound is heard. -
Page 8: Operating Your Radio - Shortwave
Operating your radio - Shortwave 1. Switch on your radio by sliding the Power On/ Off switch to the On position. 2. Slide the Waveband selector switch to the required SW band position. For information on the most appropriate shortwave band refer to Shortwave Guide or BBC website at http://www.bbc.co.uk. -
Page 9: Headphones
Mains adaptor (not included) The AC adaptor for use with the R9967 should provide between 3 and 6 volts DC output at 200mA centre pin negative. Plug the lead from the adaptor into the DC socket located on the left hand end of your radio. -
Page 10: Specifications
Specifications Power Requirements Frequency Coverage Batteries : 3V 2 x LR6 (AA) size 150 - 281 kHz External : 3-6V 200mA (centre pin negative) 530 - 1710 kHz 87.5 - 108 MHz Battery Life 75m band 3.90 - 4.00 MHz Approx. -
Page 11: Guarantee
In the event that it is not possible to return the instrument to the Roberts’ dealer from whom it was purchased, please contact Roberts Radio Technical Services department at the address shown on the rear of this manual before taking further action. - Page 12 ROBERTS RADIO TECHNICAL SERVICES DEPARTMENT 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline:- 020 8758 0338 (Mon-Fri) Issue 1...
